Leeson Model # C254T34DB5

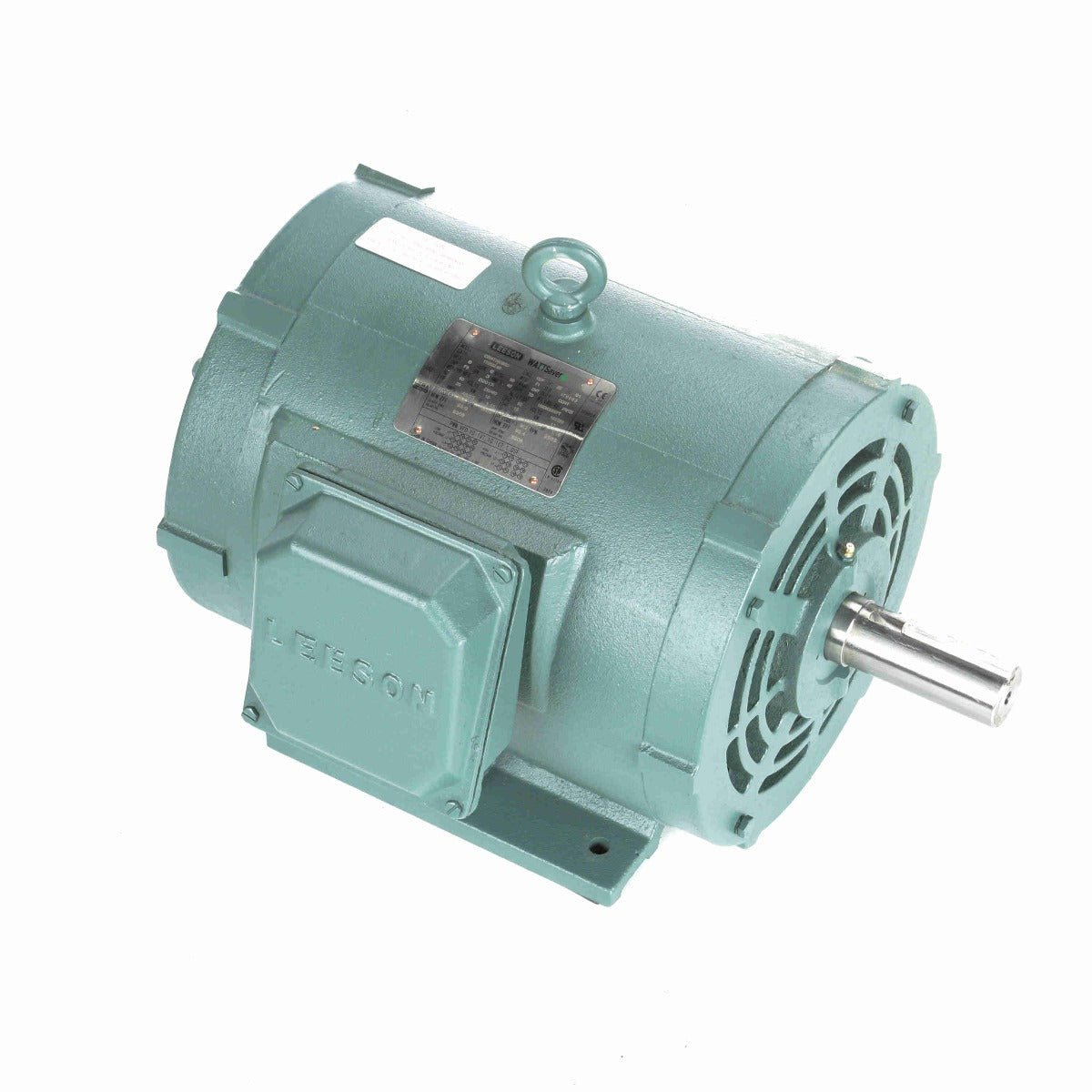

170032.60 Three phase Leeson energy efficient electric motors can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. Leeson three phase electric motors are quality machines with a rigid base and durable ball bearings.
More features include:
- Rolled steel body
- Meets or exceeds NEMA motor energy regulations
- UL Recognized Component Listing and CSA approval
- Continuous duty
- 3 year factory warranty
Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
50-46 |
F.L. Amps |
23 |
F.L. Amps |
43.2/21.6 |
| S. F Amps |
53 |
S. F Amps |
26.5 |
S. F Amps |
49/24.5 |
|
| RPM |
3600 |
Hertz |
60/50 |
|
|
| HP |
20 |
Duty |
CONTINUOUS |
TYPE |
TD |
| KW |
14.9 |
|
|
|
|
| Frame |
254T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
G |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
93 |
Eff 75% |
|
PF |
89 |
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6208 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6309 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
285 LB |
Enclosure |
DP |
Lubrication |
VERIFY |
| Nameplate |
93458-E-LN-FHKLQ-A-X-C |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
|
Ext. Diag. |
004172.01 |
| Cust Part No |
|
Outline |
16955160 |
Ext. Diag2 |
|
| Packaging |
307996.01 |
|
|
Winding |
T12902025 |
| Carton Label |
INDIVIDUAL |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
STANDARD |
Test Card
|
