Manuf. Model # C324T17DB8

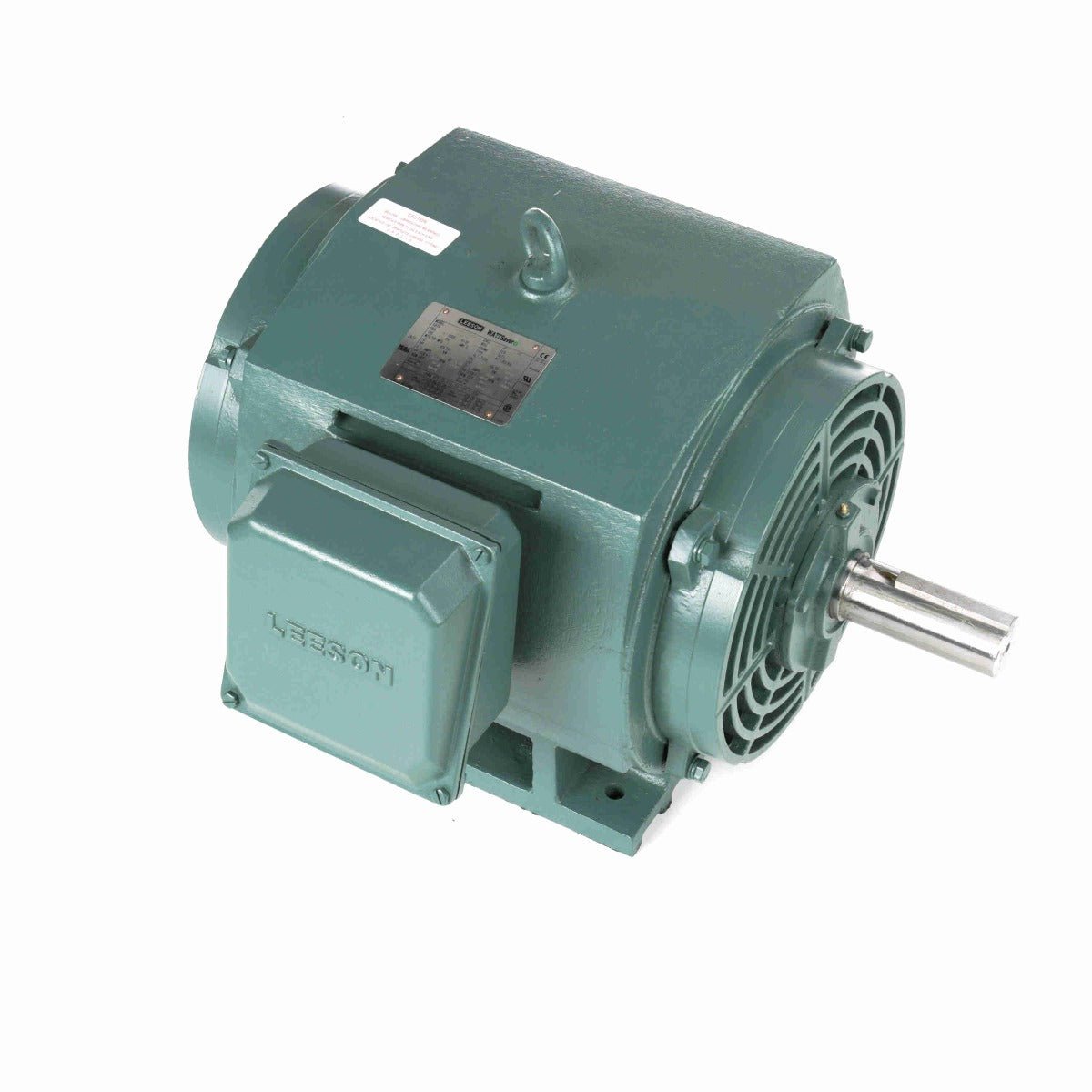

170017.60 Leeson three phase premium efficient electric motors are quality machines with rolled steel frames and durable ball bearings. Dripproof Leeson electric motors can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs.
More features include:
- Meets or exceeds NEMA motor energy regulations
- UL Recognized Component Listing and CSA approval
- Continuous duty
- 3 year factory warranty
Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
104-96 |
F.L. Amps |
48 |
F.L. Amps |
86/43 |
| S. F Amps |
109 |
S. F Amps |
54.5 |
S. F Amps |
97.4/48.7 |
|
| RPM |
1800 |
Hertz |
60/50 |
|
|
| HP |
40 |
Duty |
CONTINUOUS |
TYPE |
TD |
| KW |
30 |
|
|
|
|
| Frame |
324T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
G |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
94.1 |
Eff 75% |
|
PF |
83 |
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6312 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6312 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
591 LB |
Enclosure |
DP |
Lubrication |
VERIFY |
| Nameplate |
93458-E-LN-FHKLQ-A-X-D |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
|
Ext. Diag. |
004172.01 |
| Cust Part No |
|
Outline |
16955460 |
Ext. Diag2 |
|
| Packaging |
307996.01 |
|
|
Winding |
T16104018 |
| Carton Label |
INDIVIDUAL |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
STANDARD |
Test Card
|
