leeson Model # C286T17DB8

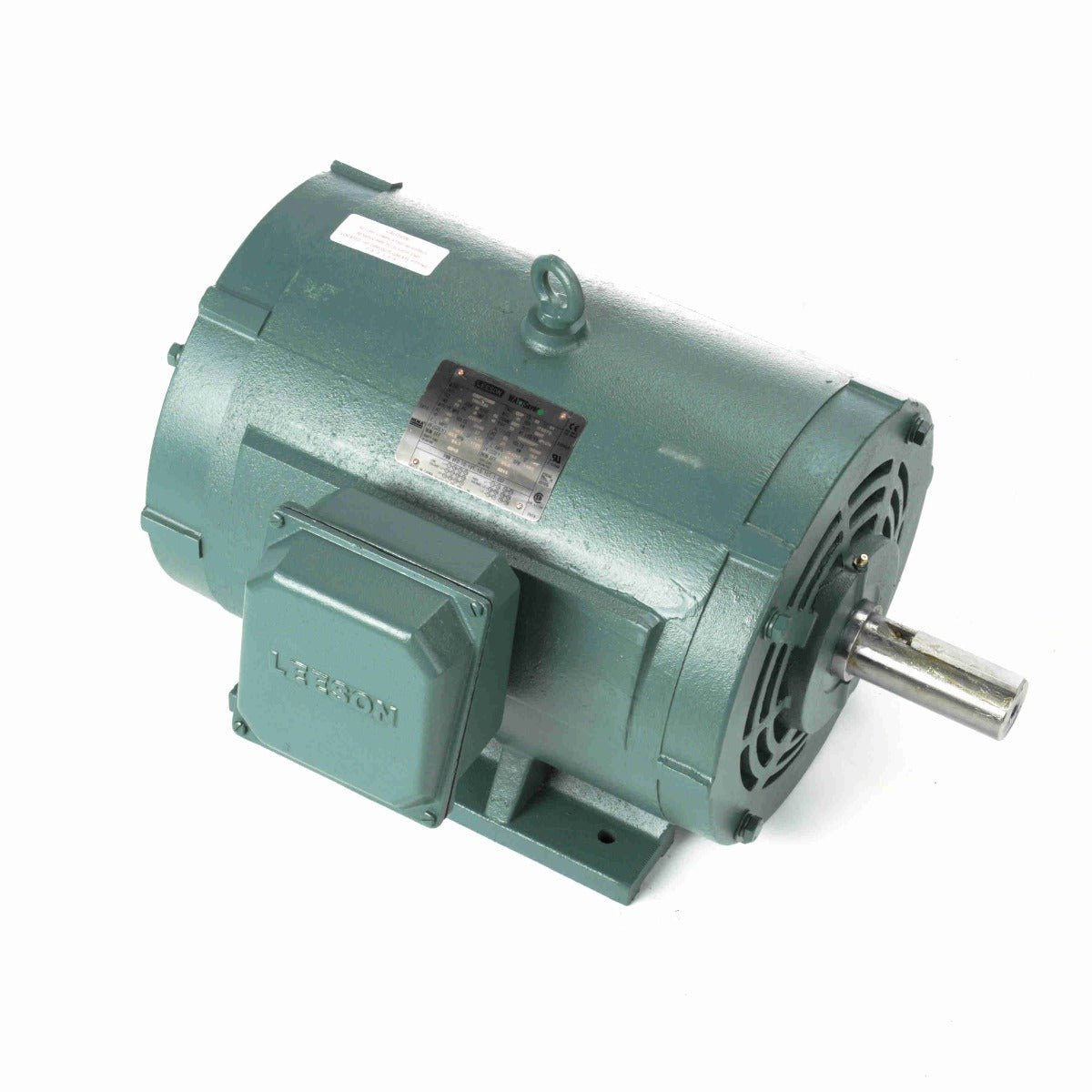

170013.60 Leeson Three Phase NEMA Efficient Motors for reliable performance in heavy duty industrial jobs, including compressors, pumps, conveyors, and blowers. These motors have rolled steel construction and a rigid base and are ideal for “tough to handle” applications and are extremely versatile and can be field converted in minutes to many different configurations. More great features:
- Class F Insulation
- Shielded ball bearings
- UL recognized
- CSA certified
If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage. Please Contact Us if you need assistance. Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products.
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
71 |
F.L. Amps |
35.5 |
F.L. Amps |
69.4/34.7 |
| S. F Amps |
81.6 |
S. F Amps |
40.8 |
S. F Amps |
79.2/39.6 |
|
| RPM |
1800 |
Hertz |
60/50 |
|
|
| HP |
30 |
Duty |
CONTINUOUS |
TYPE |
TD |
| KW |
22.4 |
|
|
|
|
| Frame |
286T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
A |
Code |
H |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
94.1 |
Eff 75% |
|
PF |
83.5 |
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6211 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6312 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
490 LB |
Enclosure |
DP |
Lubrication |
VERIFY |
| Nameplate |
93458-E-LN-FHKLQ-A-X-D |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
|
Ext. Diag. |
004172.01 |
| Cust Part No |
|
Outline |
169552_60LE |
Ext. Diag2 |
|
| Packaging |
307996.01 |
|
|
Winding |
T14504018 |
| Carton Label |
INDIVIDUAL |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
STANDARD |
Test Card
|
