Leeson Model # C215K17FK4

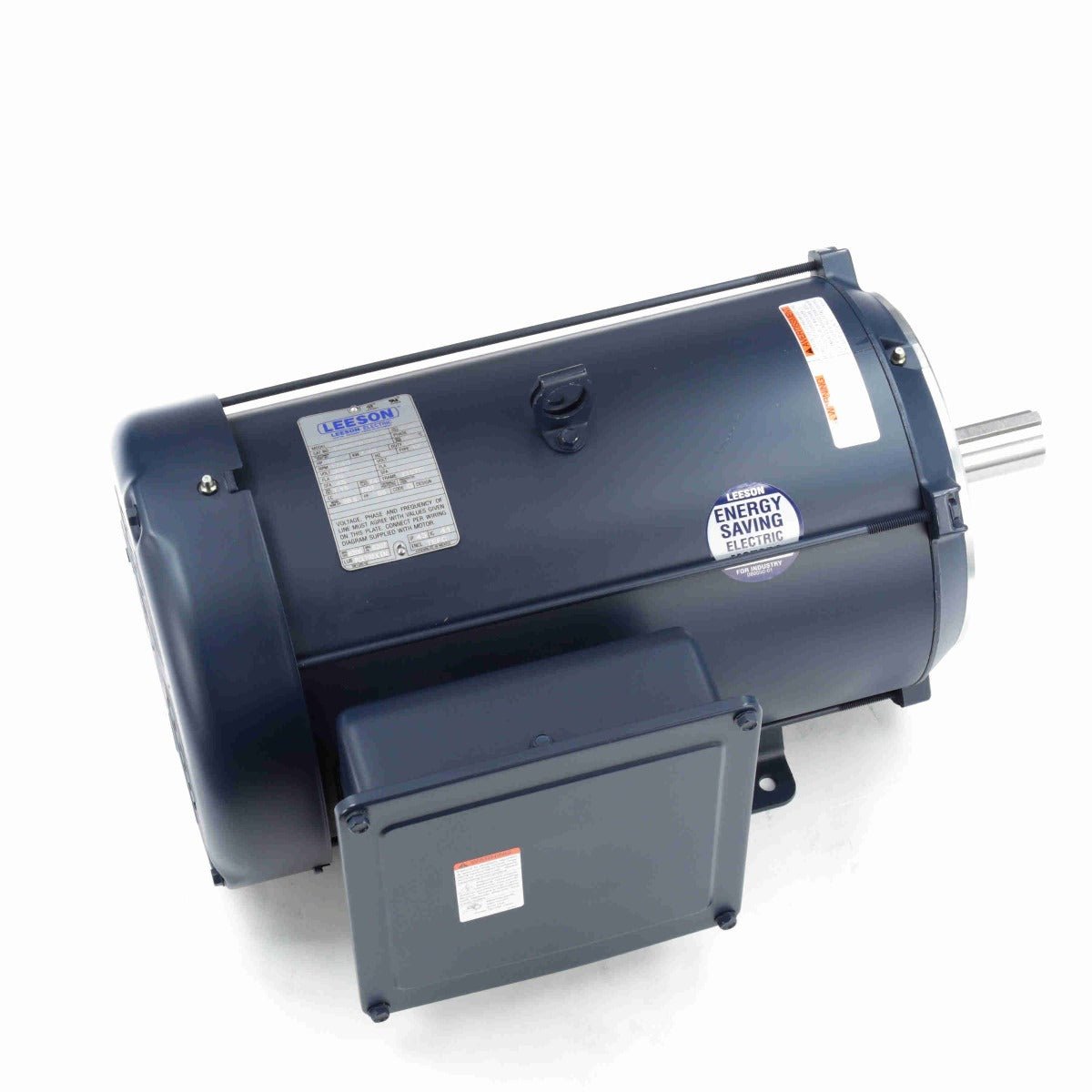

140678.00 Leeson totally enclosed general purpose motors feature a capacitor start and c face rigid base. They can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. More features include:
- Continuous duty
- Thermally protected
- Double shielded ball bearings
- Meets or exceeds NEMA service factor
If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage. Please Contact Us if you need assistance. Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products.
| Engineering Data |
| Volts |
230 |
Volts |
|
Volts |
|
| F.L. Amps |
40 |
F.L. Amps |
|
F.L. Amps |
|
| S. F Amps |
45 |
S. F Amps |
|
S. F Amps |
|
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
10 |
Duty |
CONTINUOUS |
TYPE |
KF |
| KW |
7.46 |
|
|
|
|
| Frame |
215TC |
Serv. Factor |
1.15 |
Phase |
1 |
| Max Amb |
40 |
Design |
NO DESIGN CODE |
Code |
G |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
86.5 |
Eff 75% |
|
PF |
95 |
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6206 |
| CC Number |
NONE |
CE |
No |
Bearing PE |
6207 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
159 LB |
Enclosure |
TEFC |
Lubrication |
POLYREX EM |
| Nameplate |
081285 |
Mounting |
RIGID |
Rotation |
SELECTIVE CCW |
| Assembly |
210-005.02 |
Shaft Dia. |
1 3/8 IN |
Ext. Diag. |
005462.02 |
| Cust Part No |
|
Outline |
037597-1400 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
K9425 |
| Carton Label |
Leeson Gen Purpose |
|
|
GROUP: |
2 |
| Iris |
|
Paint |
STANDARD |
Test Card |
01 |
