Manuf Model # U182T17DB61

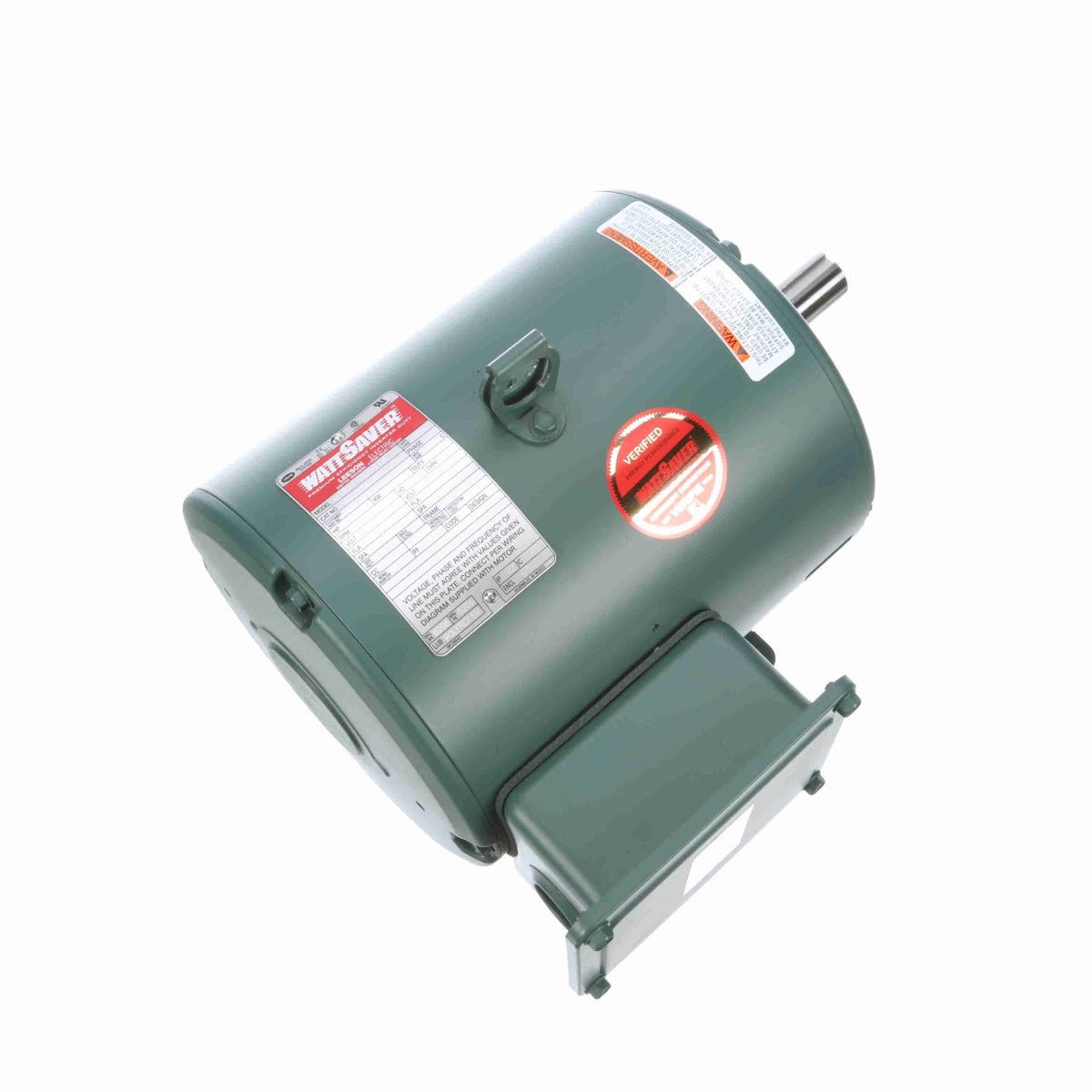

132234.00 Leeson three phase electric motors are quality machines with rolled steel frames and 1.15 Service Factor. These motors can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. These motors meet the most recent Energy Independence and Security Act (EISA) regulations for energy efficiency. More features include:
- Automatic reset protection
- General purpose uses
- Not for use with variable frequency inverters
Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
8 |
F.L. Amps |
4 |
F.L. Amps |
7/3.5 |
| S. F Amps |
9 |
S. F Amps |
4.5 |
S. F Amps |
7.8/3.9 |
|
| RPM |
1800 |
Hertz |
60/50 |
|
|
| HP |
3 |
Duty |
CONTINUOUS |
TYPE |
TD |
| KW |
2.24 |
|
|
|
|
| Frame |
182T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
K |
| Insul Class |
F |
Protection |
AUTOMATIC |
Therm.Prot. |
BYJ38KL |
| Eff 100% |
89.5 |
Eff 75% |
|
PF |
79.3 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6205 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6206 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
76.4 LB |
Enclosure |
DP |
Lubrication |
POLYREX EM |
| Nameplate |
081299 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
180-002 |
Shaft Dia. |
1 23/64 IN |
Ext. Diag. |
005020.02 |
| Cust Part No |
|
Outline |
035468-900 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T84173 |
| Carton Label |
Leeson Gen Purpose |
|
|
GROUP: |
9 |
| Iris |
|
Paint |
STANDARD |
Test Card |
01 |
