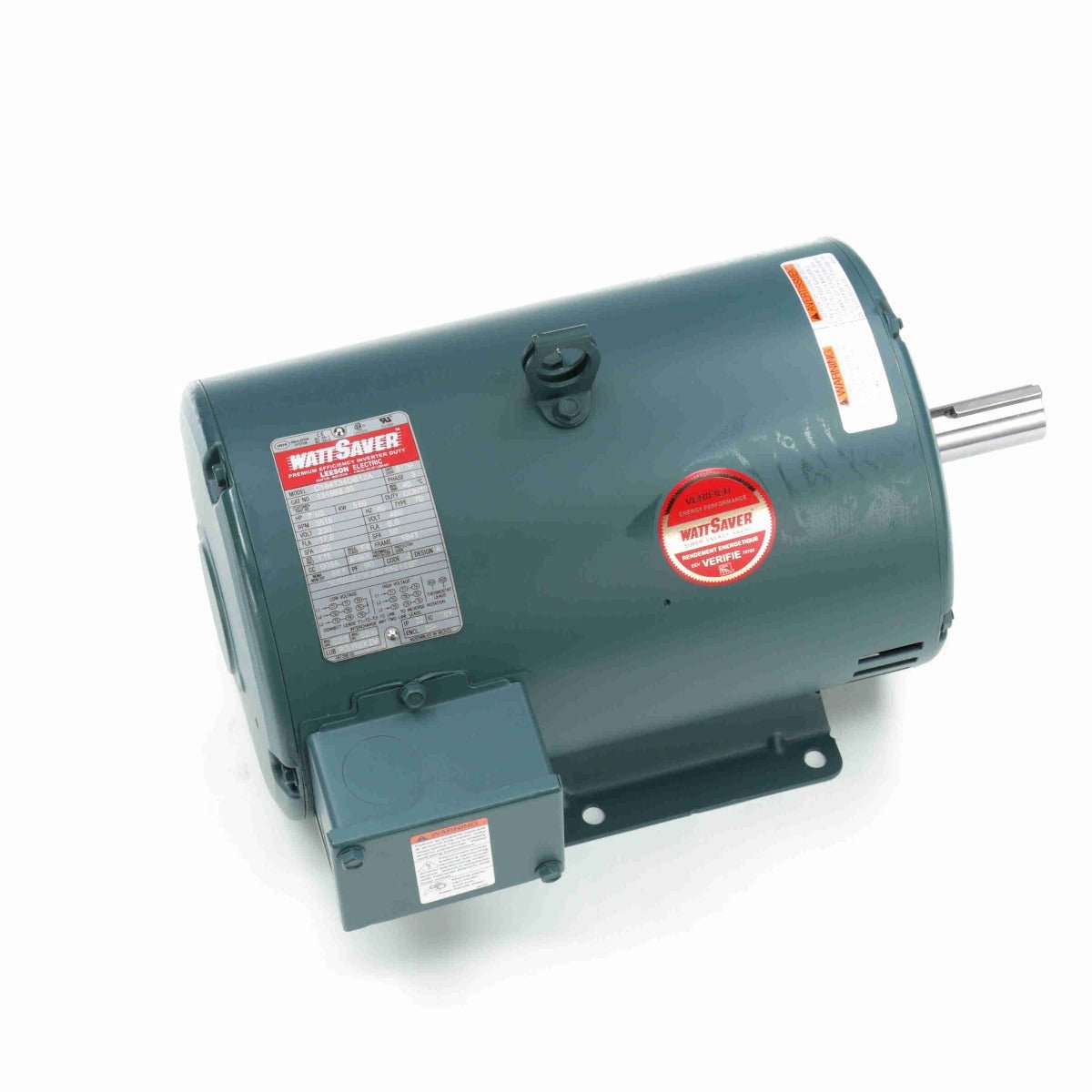

Leeson Model # C184T34DB12
131998.00 Leeson three phase Efficient Motors are well made with a rigid base and quality ball bearings. Leeson dripproof electric motors can be used for a wide range of commercial and industrial jobs, including compressors, pumps, conveyors, and blowers. More features include:
- Meets or exceeds NEMA motor energy regulations
- Class Finsulation
- UL Recognized Component Listing and CSA approval
- Continuous duty
- 3 year factory warranty
Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products. For more product information, such as motor specs or wiring diagrams, visit www.leeson.com. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
|
| F.L. Amps |
17.6 |
F.L. Amps |
8.8 |
F.L. Amps |
|
| S. F Amps |
20 |
S. F Amps |
10 |
S. F Amps |
|
|
| RPM |
3600 |
Hertz |
60 |
|
|
| HP |
7 1/2 |
Duty |
CONTINUOUS |
TYPE |
TD |
| KW |
5.60 |
|
|
|
|
| Frame |
184T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
A |
Code |
J |
| Insul Class |
F |
Protection |
AUTOMATIC |
Therm.Prot. |
9700K46 |
| Eff 100% |
88.5 |
Eff 75% |
|
PF |
90 |
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6205 |
| CC Number |
005A |
CE |
Yes |
Bearing PE |
6206 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
105 LB |
Enclosure |
DP |
Lubrication |
POLYREX EM |
| Nameplate |
081298 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
NONE |
Shaft Dia. |
1 1/8 IN |
Ext. Diag. |
005010.20 |
| Cust Part No |
|
Outline |
035464-1200 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T8293 |
| Carton Label |
Leeson Wattsaver |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
GREEN - LEESON WATTSAVER |
Test Card |
01 |
