REPLACES 116591.00
Manuf Model # C182T11FB9

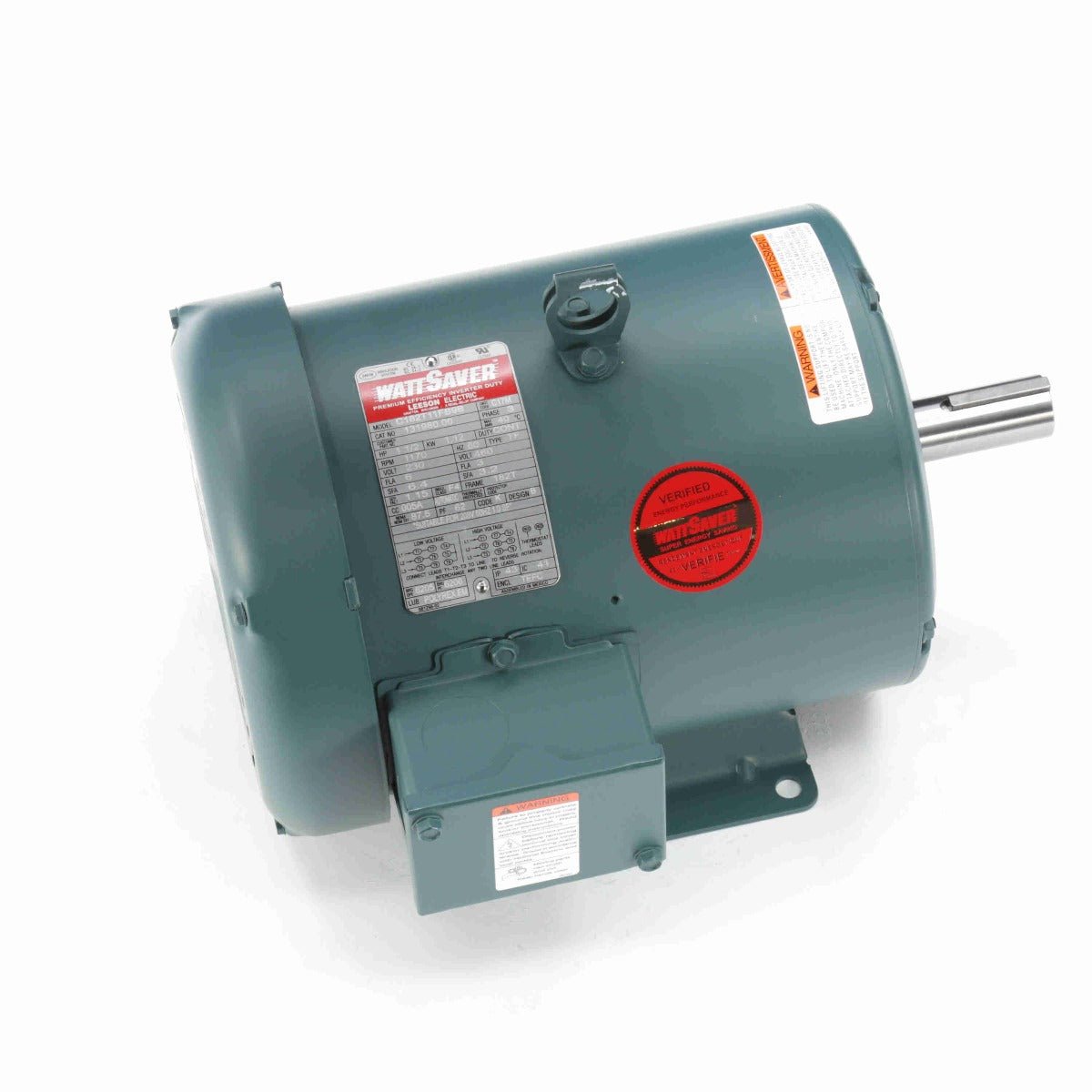

131980.00 Leeson totally enclosed fan cooled premium efficient electric motors feature three phase and cast iron construction. They can be used for a wide range of jobs that aren’t exposed to water and dust, including compressors, pumps, and blowers. More features include:
- Rigid base
- 3 year warranty
- Shielded ball bearings
- Class F insulation
If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage. Please Contact Us if you need assistance. Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products.
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
|
| F.L. Amps |
6 |
F.L. Amps |
3 |
F.L. Amps |
|
| S. F Amps |
6.4 |
S. F Amps |
3.2 |
S. F Amps |
|
|
| RPM |
1200 |
Hertz |
60 |
|
|
| HP |
1 1/2 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
1.12 |
|
|
|
|
| Frame |
182T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
K |
| Insul Class |
F |
Protection |
AUTOMATIC |
Therm.Prot. |
9700K46 |
| Eff 100% |
87.5 |
Eff 75% |
|
PF |
62 |
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6205 |
| CC Number |
005A |
CE |
Yes |
Bearing PE |
6206 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
89 LB |
Enclosure |
TEFC |
Lubrication |
POLYREX EM |
| Nameplate |
081298 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
180-002 |
Shaft Dia. |
1 1/8 IN |
Ext. Diag. |
005010.20 |
| Cust Part No |
|
Outline |
035465-900 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T8636 |
| Carton Label |
Leeson Wattsaver |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
GREEN - LEESON WATTSAVER |
Test Card |
01 |
