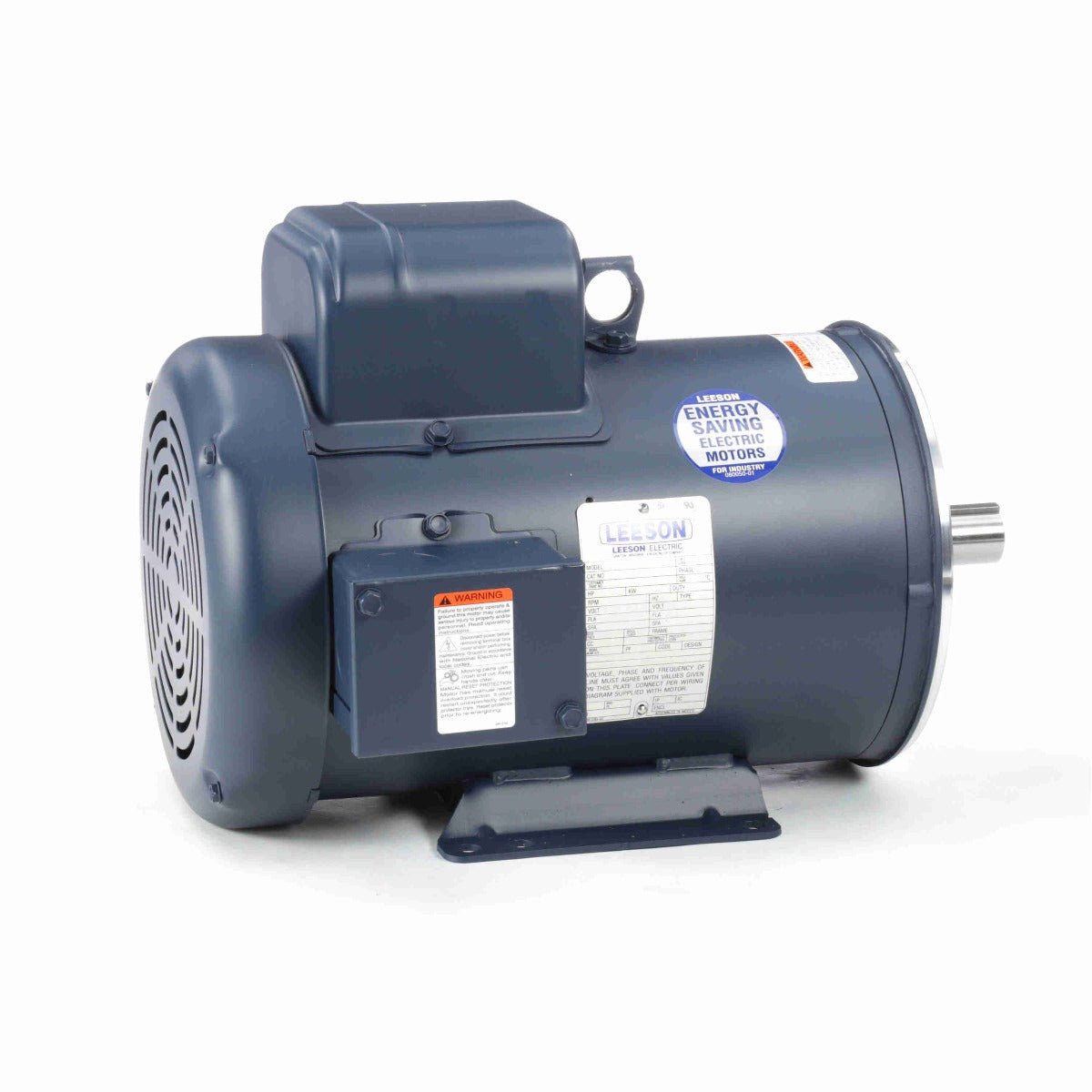

Leeson Model No. P184C17FK9
131631.00 Leeson single phase general purpose electric motors can be used for a wide range of commercial and industrial jobs, including compressors, pumps, conveyors, and blowers. Leeson totally enclosed electric motors are well made with a rolled steel body and quality ball bearings that last. More features include:
- Meets or exceeds NEMA motor energy regulations
- Class B insulation
- UL Recognized Component Listing and CSA approval
- C Face with rigid base
- 1 year factory warranty
Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products. For more product information, such as motor specs or wiring diagrams, visit www.leeson.com. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
115 |
Volts |
208-230 |
Volts |
|
| F.L. Amps |
33.6 |
F.L. Amps |
16.8 |
F.L. Amps |
|
| S. F Amps |
|
S. F Amps |
|
S. F Amps |
|
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
3 |
Duty |
CONTINUOUS |
TYPE |
CF |
| KW |
2.24 |
|
|
|
|
| Frame |
184TC |
Serv. Factor |
1.0 |
Phase |
1 |
| Max Amb |
40 |
Design |
L |
Code |
J |
| Insul Class |
F |
Protection |
MANUAL |
Therm.Prot. |
BRD2973 |
| Eff 100% |
77 |
Eff 75% |
|
PF |
75 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6205 |
| CC Number |
EXEMPT |
CE |
No |
Bearing PE |
6206 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
87 LB |
Enclosure |
TEFC |
Lubrication |
POLYREX EM |
| Nameplate |
081285 |
Mounting |
RIGID |
Rotation |
SELECTIVE CCW |
| Assembly |
180-034 |
Shaft Dia. |
1 1/8 IN |
Ext. Diag. |
005067.02 |
| Cust Part No |
|
Outline |
035381-1100 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
C8427 |
| Carton Label |
Leeson Gen Purpose |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
STANDARD |
Test Card |
01 |
