Manuf Model # C184T17FK15

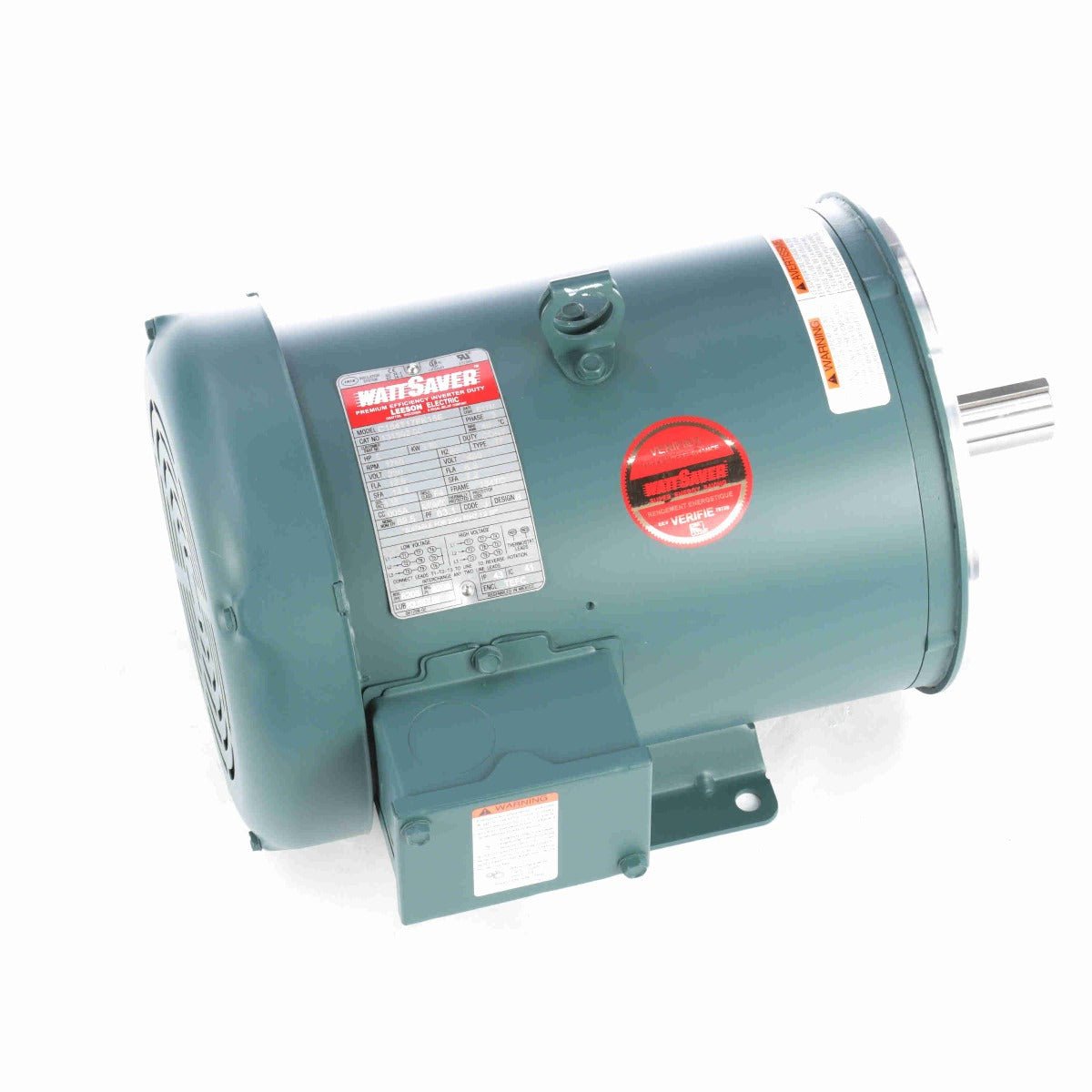

131502.00 Leeson three phase Efficient Motors are quality machines with rolled steel frames and durable ball bearings. These induction motors meet the most recent Energy Independence and Security Act (EISA) regulations for energy efficiency, saving you operational costs. Leeson c face totally enclosed motors can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. More features include:
Meets or exceeds NEMA motor energy regulations
UL Recognized Component Listing and CSA approval
- Continuous duty
-
-
- 3 year factory warranty
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
|
| F.L. Amps |
12.6 |
F.L. Amps |
6.3 |
F.L. Amps |
|
| S. F Amps |
14.4 |
S. F Amps |
7.2 |
S. F Amps |
|
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
5 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
3.70 |
|
|
|
|
| Frame |
184TC |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
J |
| Insul Class |
F |
Protection |
AUTOMATIC |
Therm.Prot. |
9700K46 |
| Eff 100% |
89.5 |
Eff 75% |
|
PF |
83.1 |
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6205 |
| CC Number |
005A |
CE |
Yes |
Bearing PE |
6206 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
96 LB |
Enclosure |
TEFC |
Lubrication |
POLYREX EM |
| Nameplate |
081298 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
180-009 |
Shaft Dia. |
1 1/8 IN |
Ext. Diag. |
005010.20 |
| Cust Part No |
|
Outline |
035453-950 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T84170 |
| Carton Label |
Leeson Wattsaver |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
GREEN - LEESON WATTSAVER |
Test Card |
01 |
