Manuf Model # C143T34FC22 - Replaces item # G120105.00

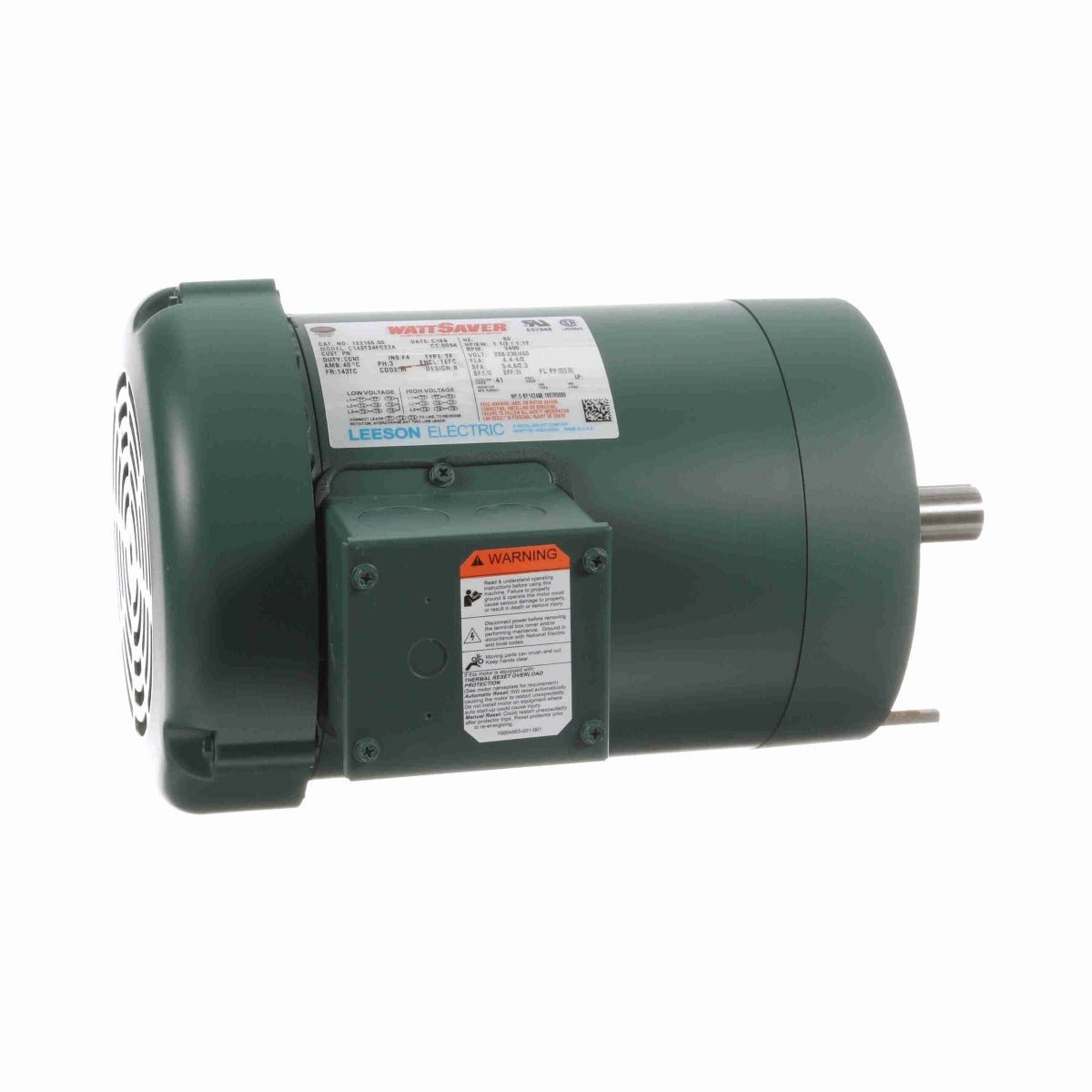

122166.00 Leeson three phase electric motors are well made with a rolled steel body and quality ball bearings that last. Leeson c face general purpose electric motors can be used for a wide range of commercial and industrial jobs, including compressors, pumps, conveyors, and blowers. More features include:
- C-face Footless
- Meets or exceeds NEMA motor energy regulations
- Class F insulation
- UL Recognized Component Listing and CSA approval
- Made in the USA
- 1 year factory warranty
Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products. For more product information, such as motor specs or wiring diagrams, visit www.leeson.com. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
|
| F.L. Amps |
4.4-4 |
F.L. Amps |
2 |
F.L. Amps |
|
| S. F Amps |
5-4.6 |
S. F Amps |
2.3 |
S. F Amps |
|
|
| RPM |
3600 |
Hertz |
60 |
|
|
| HP |
1 1/2 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
1.12 |
|
|
|
|
| Frame |
143TC |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
M |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
84 |
Eff 75% |
|
PF |
82 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
CC005A |
CE |
No |
Bearing PE |
6205 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
35 LB |
Enclosure |
TEFC |
Lubrication |
POLYREX EM |
| Nameplate |
993500 |
Mounting |
ROUND |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
7/8 IN |
Ext. Diag. |
005010.01 |
| Cust Part No |
|
Outline |
028777-650 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T632173 |
| Carton Label |
Leeson Wattsaver |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
GREEN - LEESON WATTSAVER |
Test Card |
01 |
