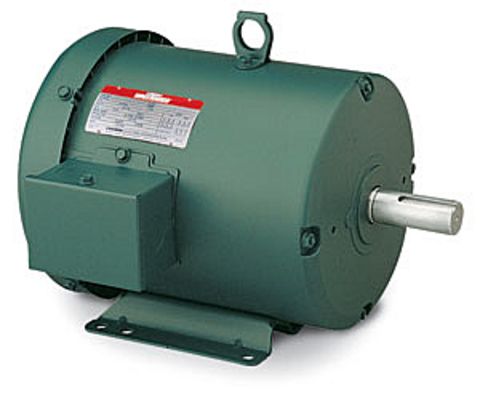

Leeson Model # C145T34FB49
199003.00 Leeson three phase premium efficient electric motors are made with a rolled steel body and exceed NEMA design B performance. Use for a wide range of jobs that aren’t exposed to water and dust, including compressors, pumps, and blowers. More great features include:
- Double shielded ball bearings
- Continuous duty
- Made in the USA
- Rigid base
- 3 year warranty on Efficient Motors
Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping. If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage.
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
|
| F.L. Amps |
8 |
F.L. Amps |
4 |
F.L. Amps |
|
| S. F Amps |
9.2 |
S. F Amps |
4.6 |
S. F Amps |
|
|
| RPM |
3600 |
Hertz |
60 |
|
|
| HP |
3 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
2.24 |
|
|
|
|
| Frame |
145T |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
A |
Code |
N |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
9700K46 |
| Eff 100% |
86.5 |
Eff 75% |
|
PF |
86 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
CC005A |
CE |
Yes |
Bearing PE |
6205 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
48 LB |
Enclosure |
TEFC |
Lubrication |
POLYREX EM |
| Nameplate |
993500 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
|
Ext. Diag. |
005010.20 |
| Cust Part No |
|
Outline |
OL121968 |
Ext. Diag2 |
|
| Packaging |
N |
|
|
Winding |
T632209 |
| Carton Label |
Leeson Wattsaver |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
GREEN - LEESON WATTSAVER |
Test Card |
01 |
