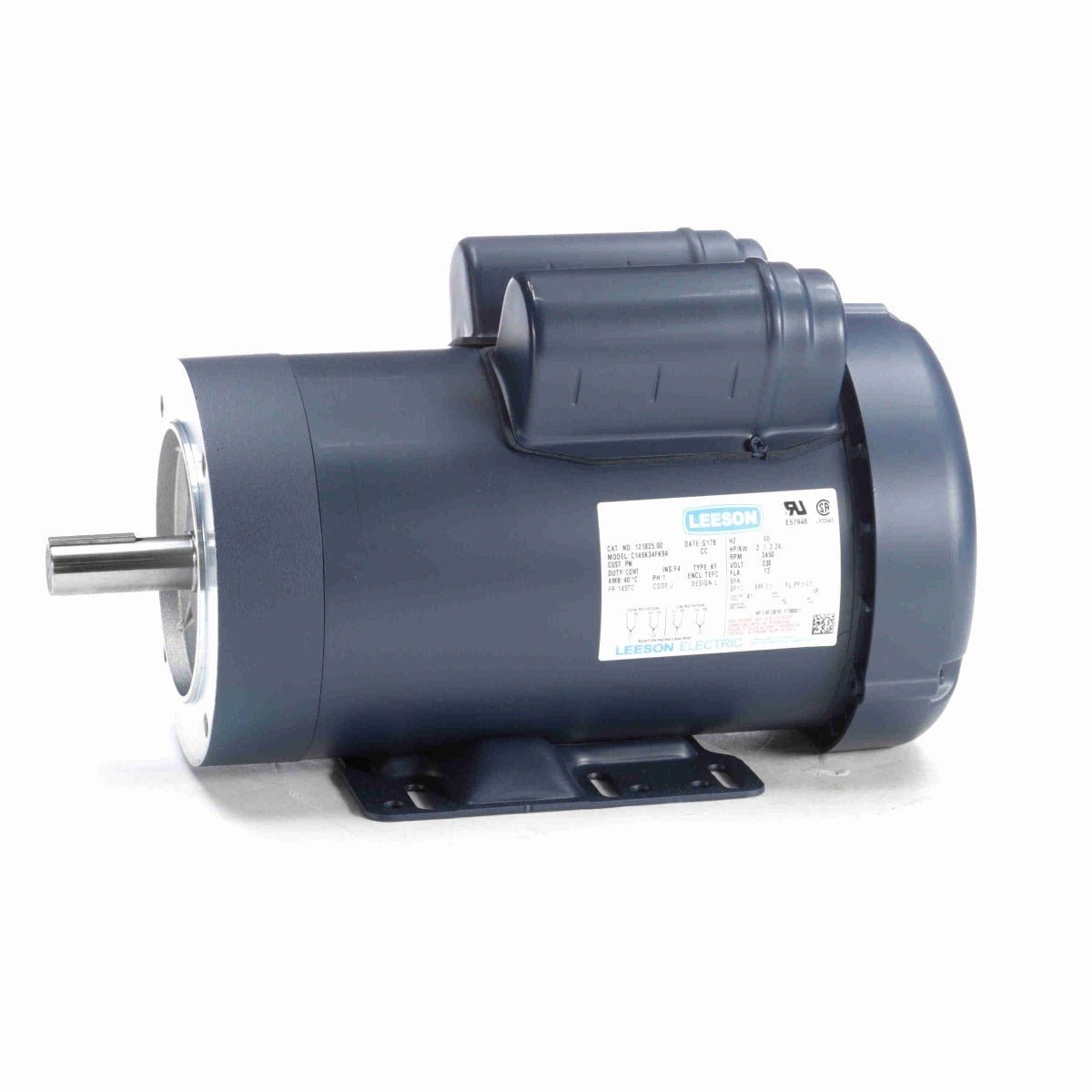

121825.00 Leeson Motor 3HP 3450RPM 145TC TEFC 230Volt Single Phase

In stock
SKU: 121825.00
Regular price $774.75
Regular price $1,174.00 Sale Sale price $774.75

Product details

  • SKU 121825.00
  • Brand Leeson
  • Phase 1
  • RPM 1801-3600
  • HP / KW 3
  • Application General Purpose
  • Frame 143/5TC
  • Enclosure TOTALLY ENCLOSED
  • Voltage 208-230V
  • Flange C-Face Footed

Leeson Model No. C145K34FK9

121825.00 Leeson single phase electric motors are quality machines with rolled steel frames and durable ball bearings. Totally enclosed Leeson electric motors can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. These c face motors meet the most recent Energy Independence and Security Act (EISA) regulations for energy efficiency. More features include:



  • Meets or exceeds NEMA motor energy regulations
  • UL Recognized Component Listing and CSA approval
  • Continuous duty
  • 1 year factory warranty



Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.





Engineering Data
Volts 230 Volts   Volts
F.L. Amps 13 F.L. Amps   F.L. Amps
S. F Amps   S. F Amps   S. F Amps

RPM 3600 Hertz 60
HP 3 Duty CONTINUOUS TYPE KF
KW 2.24
Frame 145TC Serv. Factor 1.0 Phase 1
Max Amb 40 Design L Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 81.5 Eff 75%   PF 91
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE

Motor Wt. 47 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW
Assembly   Shaft Dia. 7/8 IN Ext. Diag. 005018.01
Cust Part No   Outline 028800-850C Ext. Diag2
Packaging B     Winding K632129
Carton Label Leeson Gen Purpose     GROUP:
Iris   Paint BLUE - LEESON (ENAMEL) Test Card 01
