Manuf Model # C145T17DK21

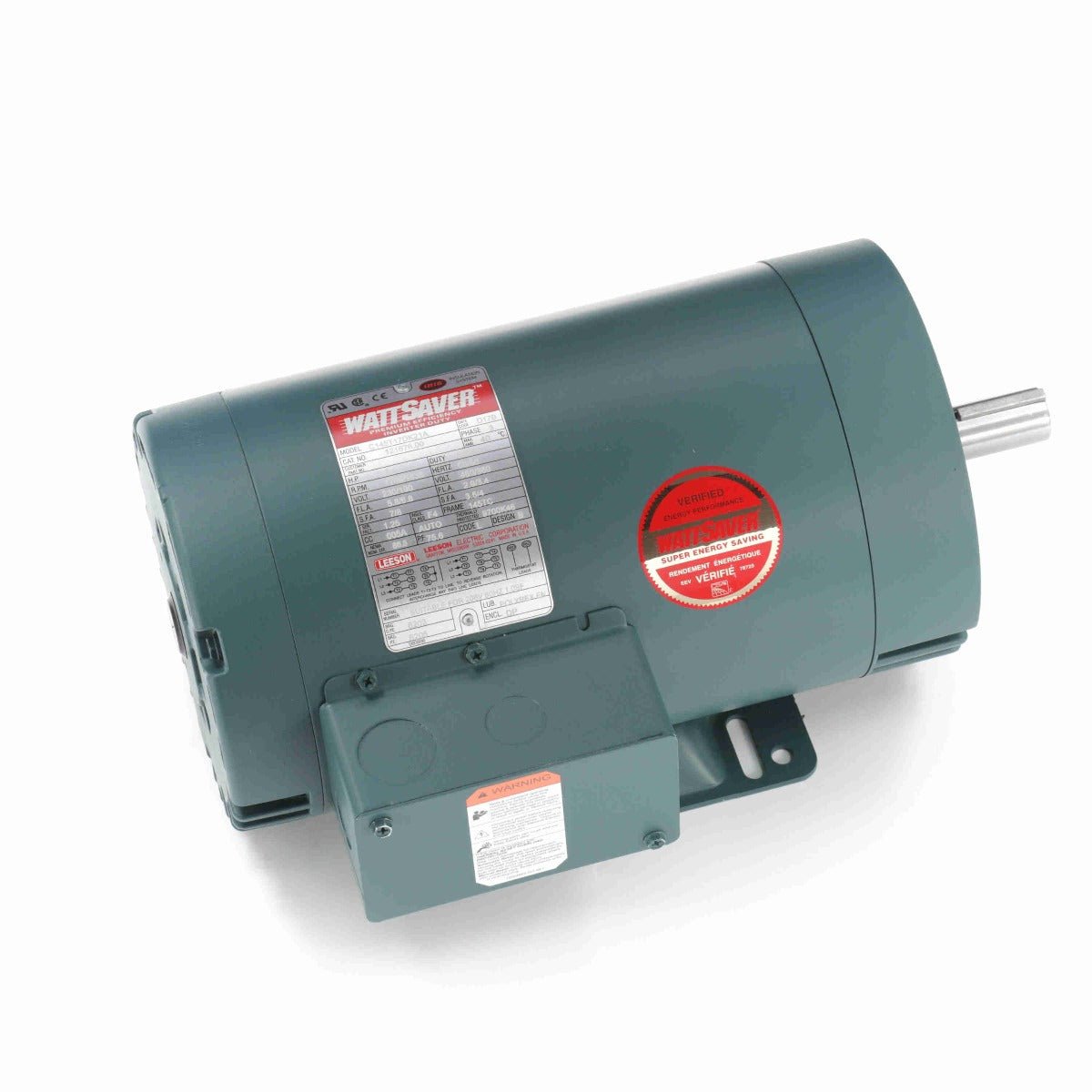

121676.00 Leeson dripproof premium efficient electric motors are made with a rolled steel body and exceed NEMA design B performance. Use for a wide range of jobs that aren’t exposed to water and dust, including compressors, pumps, and blowers.
More three phase c face motor features include:
- Double shielded ball bearings
- Continuous duty
- 3 year warranty on Efficient Motors
Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping. If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage.
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
5.8 |
F.L. Amps |
2.9 |
F.L. Amps |
6.8/3.4 |
| S. F Amps |
7 |
S. F Amps |
3.5 |
S. F Amps |
8/4 |
|
| RPM |
1800 |
Hertz |
60/50 |
|
|
| HP |
2 |
Duty |
CONTINUOUS |
TYPE |
TD |
| KW |
1.50 |
|
|
|
|
| Frame |
145TC |
Serv. Factor |
1.25 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
L |
| Insul Class |
F |
Protection |
AUTOMATIC |
Therm.Prot. |
9700K46 |
| Eff 100% |
86.5 |
Eff 75% |
|
PF |
75.6 |
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
005A |
CE |
Yes |
Bearing PE |
6205 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
42 LB |
Enclosure |
DP |
Lubrication |
POLYREX EM |
| Nameplate |
080886 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
7/8 IN |
Ext. Diag. |
005010.20 |
| Cust Part No |
|
Outline |
028735-850 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T634340 |
| Carton Label |
Leeson Wattsaver |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
GREEN - LEESON WATTSAVER |
Test Card |
01 |
