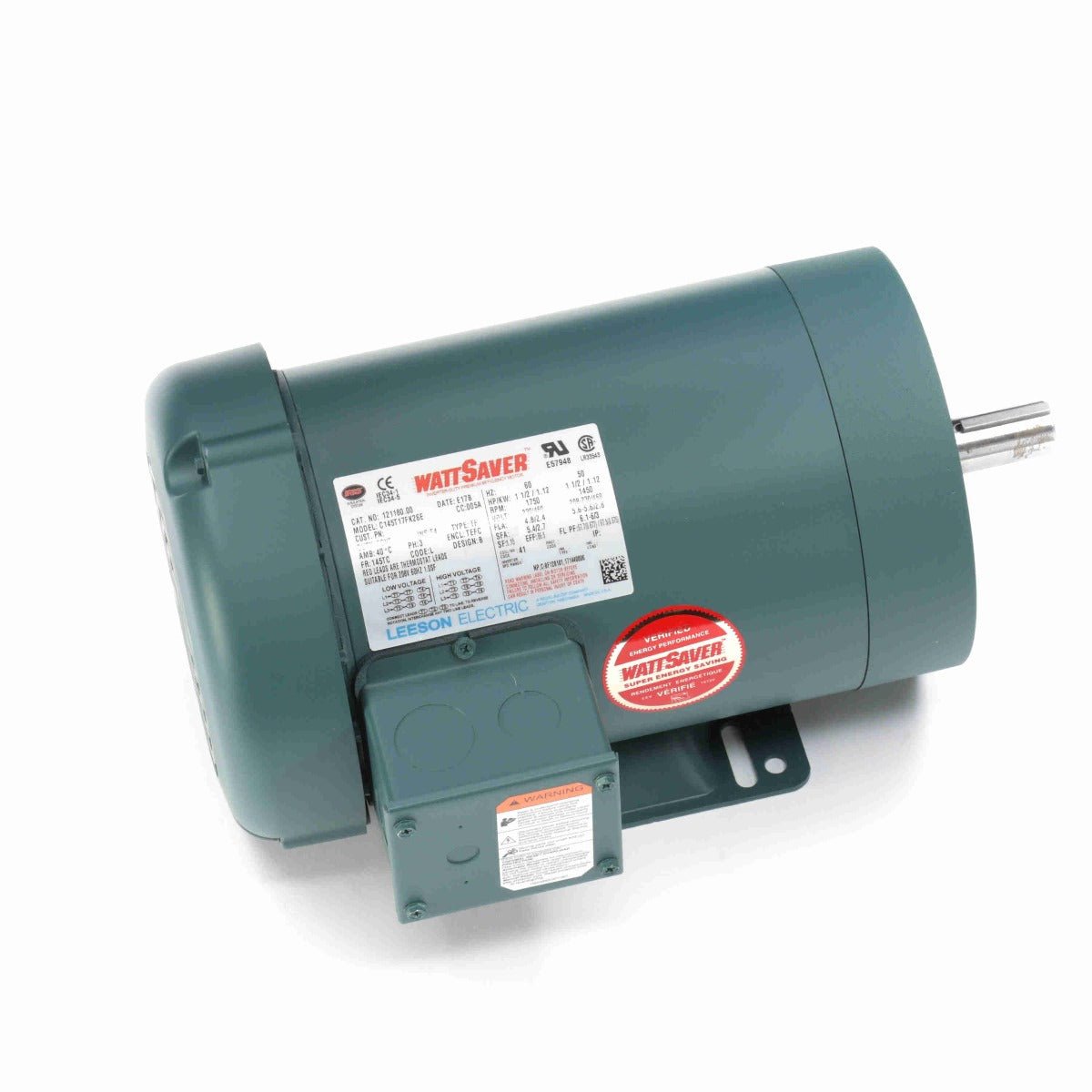

121180.00 Leeson Motor 1.5HP 1750 145TC TEFC 208-230/460Volt 3 Phase C145T17FK26

In stock
SKU: 121180
Regular price $749.75
Regular price $1,136.00 Sale Sale price $749.75

Product details

  • SKU 121180
  • GTIN 6917200168010
  • Brand Leeson
  • Phase 3
  • RPM 1201-1800
  • HP / KW 1.5
  • Application General Purpose
  • Frame 143/5TC
  • Enclosure TOTALLY ENCLOSED
  • Voltage 208-230/460V
  • Flange C-Face Footed

Manuf Model # C145T17FK26

121180.00 Leeson three phase premium efficient motors are quality machines with rolled steel frames and durable ball bearings. These induction motors meet the most recent Energy Independence and Security Act (EISA) regulations for energy efficiency, saving you operational costs. Leeson totally enclosed motors can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. More features include:



  • Meets or exceeds NEMA motor energy regulations
  • UL Recognized Component Listing and CSA approval
  • Continuous duty
  • 3 year factory warranty



Engineering Data
Volts 230 Volts 460 Volts 208-230/460
F.L. Amps 4.8 F.L. Amps 2.4 F.L. Amps 5.6-5.6/2.8
S. F Amps 5.4 S. F Amps 2.7 S. F Amps 6.1-6/3

RPM 1800 Hertz 60
HP 1 1/2 Duty CONTINUOUS TYPE TF
KW 1.12
Frame 145TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection AUTOMATIC Therm.Prot. 9700K46
Eff 100% 86.5 Eff 75%   PF 67.7
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number CC005A CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE

RPM 1500 Hertz 50
HP 1 1/2 Duty CONTINUOUS TYPE TF
KW 1.12
Frame 145TC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection AUTOMATIC Therm.Prot. 9700K46
Eff 100% 86.5 Eff 75%   PF 67.5
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number CC005A CE Yes Bearing PE 6205
Load Type   Inverter Type   Speed Range NONE

Motor Wt. 45 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation REV
Assembly   Shaft Dia. 7/8 IN Ext. Diag. 005010.20
Cust Part No   Outline 028911-750 Ext. Diag2
Packaging B     Winding T634341
Carton Label Leeson Wattsaver     GROUP:
Iris   Paint GREEN - LEESON WATTSAVER Test Card 01
