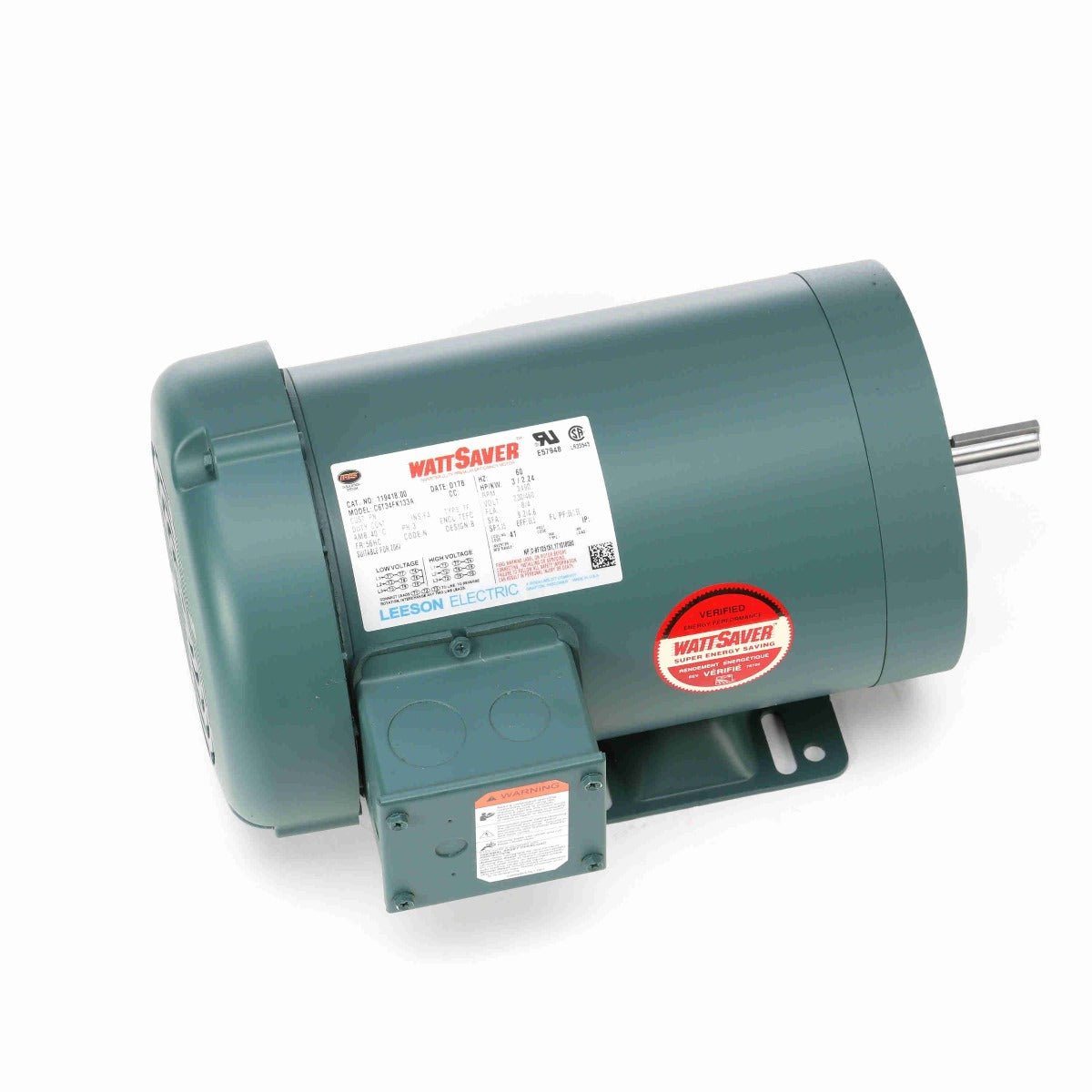

119418.00 Leeson Motor 3HP 3450RPM 56HC TEFC 208-230/460Volt 3Phase C6T34FK133

In stock
SKU: 119418
Regular price $794.75
Regular price $1,204.00 Sale Sale price $794.75

Product details

  • SKU 119418
  • Brand Leeson
  • Phase 3
  • RPM 1801-3600
  • HP / KW 3
  • Application General Purpose
  • Frame 56H/HC/HCZ/HZ
  • Enclosure TOTALLY ENCLOSED
  • Voltage 208-230/460V
  • Flange C-Face Footed

This item replaces 114615.00 Leeson Motor

Manuf Model # C6T34FK133

Leeson 119418.00 is a premium efficient, inverter rated induction motor that is built to last. Designed with a totally enclosed frame for environment that are dirty and wet. Leeson is well know for durable construction; this unit features a rolled steel frames and long-lasting shielded ball bearings. Leeson premium AC motors meet EISA federal energy regulations; have class F insulation for additional winding protection; continuous duty performance; and comes with a 3 year factory warranty.



From manufacturing to the farm, this 3 hp Leeson motor can be used for:



  • Compressors
  • Pumps
  • Conveyors
  • Blowers
  • General purpose applications



Engineering Data
Volts 230 Volts 460 Volts
F.L. Amps 7.6 F.L. Amps 3.8 F.L. Amps
S. F Amps 8.6 S. F Amps 4.3 S. F Amps

RPM 3600 Hertz 60
HP 3 Duty CONTINUOUS TYPE TF
KW 2.24
Frame 56HC Serv. Factor 1.15 Phase 3
Max Amb 40 Design B Code J
Insul Class F Protection NOT Therm.Prot.
Eff 100% 84 Eff 75%   PF 86
UL Yes CSA Yes Bearing OPE 6203
CC Number NONE CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE

Motor Wt. 38 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation REV
Assembly   Shaft Dia. 5/8 IN Ext. Diag. 005010.01
Cust Part No   Outline 028795-700 Ext. Diag2
Packaging B     Winding T632164
Carton Label Leeson Gen Purpose     GROUP:
Iris   Paint STANDARD Test Card 01
