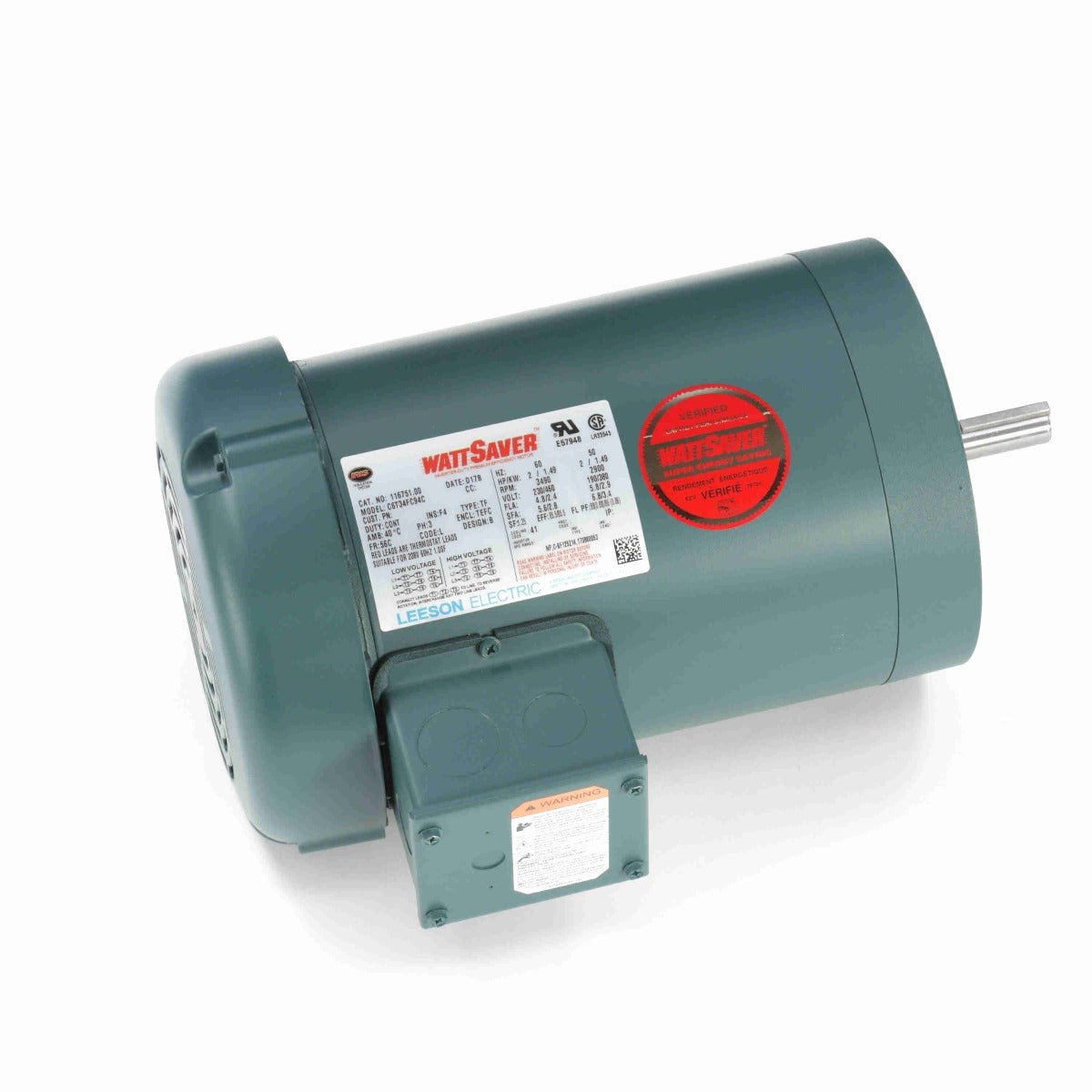

116751.00 Leeson Motor 2HP 3490RPM 56C TEFC 208-230/460Volt 3 Phase

In stock
SKU: 116751
Regular price $735.25
Regular price $1,114.00 Sale Sale price $735.25

Product details

  • SKU 116751
  • Brand Leeson
  • Phase 3
  • RPM 1801-3600
  • HP / KW 2
  • Application General Purpose
  • Frame 56C
  • Enclosure TOTALLY ENCLOSED
  • Voltage 208-230/460V
  • Flange C-Face Footless

Manuf Model # C6T34FC94C - Replaces item # 111273.00

116751.00 Leeson three phase premium efficient electric motors are quality machines with rolled steel frames and durable ball bearings. Totally enclosed Leeson electric motors can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. These motors meet the most recent Energy Independence and Security Act (EISA) regulations for energy efficiency. More features include:



  • Made in the USA
  • Meets or exceeds NEMA motor energy regulations
  • UL Recognized Component Listing and CSA approval
  • Continuous duty
  • 3 year factory warranty



Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.



Engineering Data
Volts 230 Volts 460 Volts 190/380
F.L. Amps 4.8 F.L. Amps 2.4 F.L. Amps 5.8/2.9
S. F Amps 5.6 S. F Amps 2.8 S. F Amps 6.8/3.4

RPM 3600 Hertz 60
HP 2 Duty CONTINUOUS TYPE TF
KW 1.49
Frame 56C Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection NOT Therm.Prot. 9700K46
Eff 100% 85.5 Eff 75%   PF 88
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE

RPM 3000 Hertz 50
HP 2 Duty CONTINUOUS TYPE TF
KW 1.49
Frame 56C Serv. Factor 1.25 Phase 3
Max Amb 40 Design B Code L
Insul Class F Protection NOT Therm.Prot. 9700K46
Eff 100% 85.5 Eff 75%   PF 86
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE

Motor Wt. 44 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting ROUND Rotation REV
Assembly NONE Shaft Dia. 5/8 IN Ext. Diag. 005010.20
Cust Part No   Outline 028776-750 Ext. Diag2
Packaging B     Winding T632174
Carton Label Leeson Wattsaver     GROUP:
Iris   Paint GREEN - LEESON WATTSAVER Test Card 01
