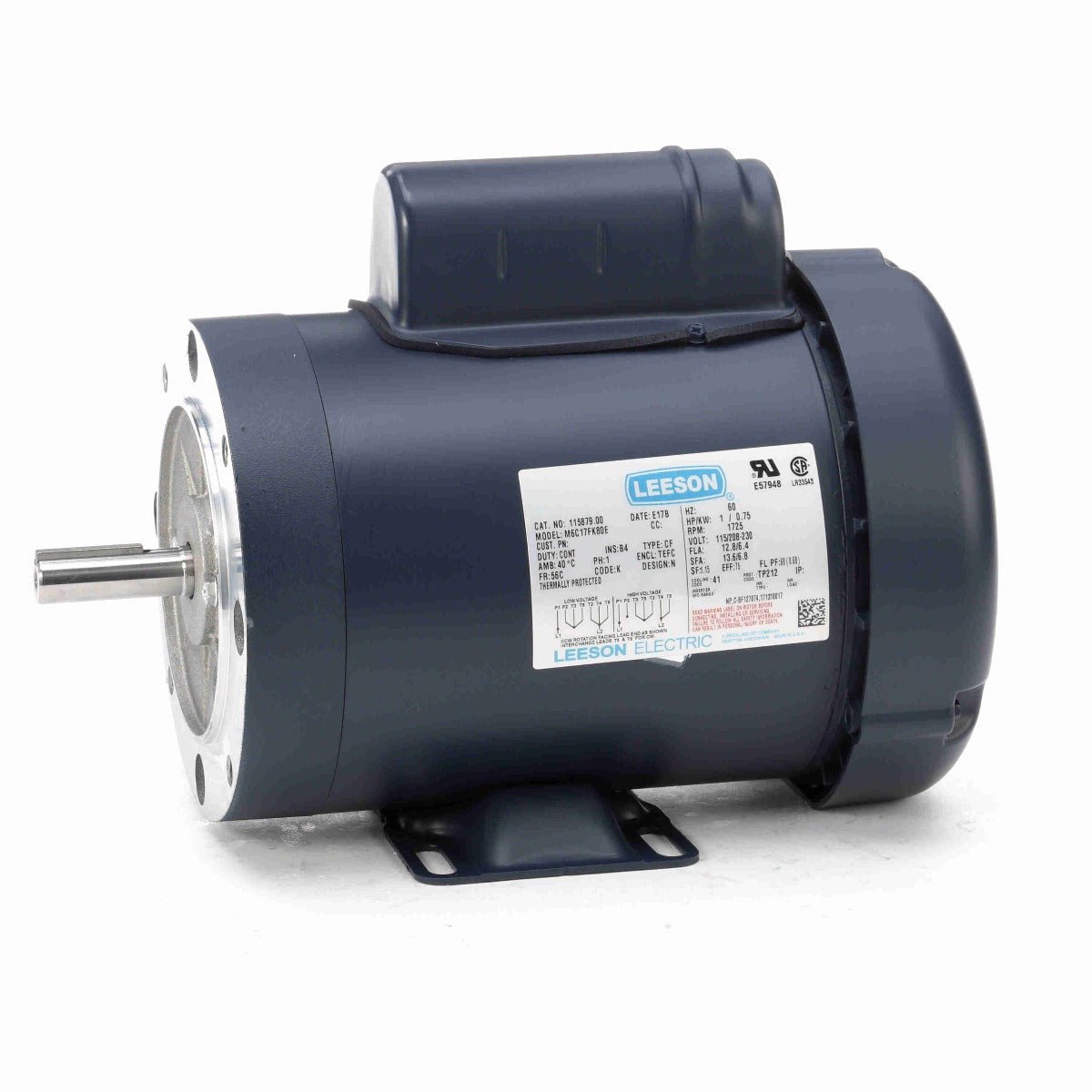

115879.00 Leeson Motor 1HP 1725RPM 56C TEFC 115/208-230Volt Single Phase

Leeson Model No. M6C17FK80

Leeson Pressure Washer Pump Motors are equipped with a start and run capacitor for its low amperage, low vibration from a balanced rotor and double shielded ball bearings.  These motors have windings dipped in a heavy duty varnish system.

These Leeson motors have an Totally enclosed (TEFC) enclosure that can be used more dirty or wet environments (to a point) – excessive water exposure may require a more sealed, washdown unit. This Leeson AC motor comes with a manual overload, meaning that there is a button on the motor to stop operation. Thermal overloads are designed to open the start circuit and cut power to the motor in the case that the motor begins overheating from drawing too much current for too long.

 Features:

• Used for hot or cold pressure washer applications
• Manual reset overload protection
• High service factor
• 6.4 AMPS
• 1.15 Service Factor
• "C" Dimension: 11.81"

Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
