Manuf Model # C6T17FC132 - Replaces item # 110048.00

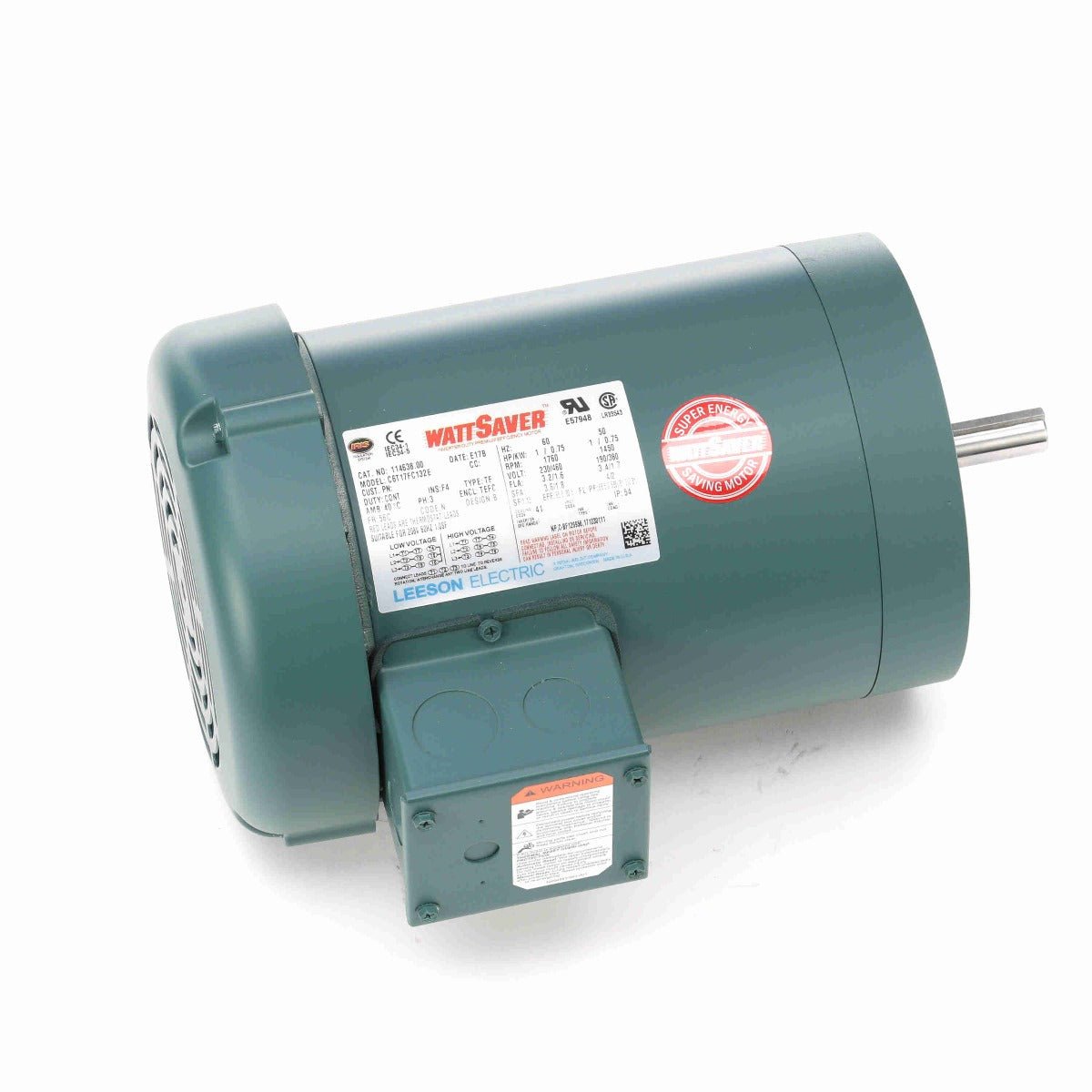

114638.00 Leeson three phase premium efficient electric motors are made with a rolled steel body and exceed NEMA design B performance. Use for a wide range of jobs that are exposed to water and dust, including compressors, pumps, and blowers. More totally enclosed motor features include:
- Double shielded ball bearings
- Continuous duty
- Made in the USA
- 3 year warranty on Efficient Motors
If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage. Please Contact Us if you need assistance. Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products.
| Engineering Data |
| Volts |
230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
3.2 |
F.L. Amps |
1.6 |
F.L. Amps |
3.4/1.7 |
| S. F Amps |
3.6 |
S. F Amps |
1.8 |
S. F Amps |
4/2 |
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
1 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
0.75 |
|
|
|
|
| Frame |
56C |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
N |
| Insul Class |
F |
Protection |
AUTOMATIC |
Therm.Prot. |
9700K46 |
| Eff 100% |
85.5 |
Eff 75% |
|
PF |
68.5 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
Yes |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
1.5 X BASE SPEED |
|
| RPM |
1500 |
Hertz |
50 |
|
|
| HP |
1 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
0.75 |
|
|
|
|
| Frame |
56C |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
N |
| Insul Class |
F |
Protection |
AUTOMATIC |
Therm.Prot. |
9700K46 |
| Eff 100% |
82.5 |
Eff 75% |
|
PF |
81.0 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
Yes |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
1.5 X BASE SPEED |
|
| Motor Wt. |
37 LB |
Enclosure |
TEFC |
Lubrication |
POLYREX EM |
| Nameplate |
993500 |
Mounting |
ROUND |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
5/8 IN |
Ext. Diag. |
005010.20 |
| Cust Part No |
|
Outline |
028776-700 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T634342 |
| Carton Label |
Leeson Wattsaver |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
GREEN - LEESON WATTSAVER |
Test Card |
01 |
