Manuf. Model No. C6T17FK58D

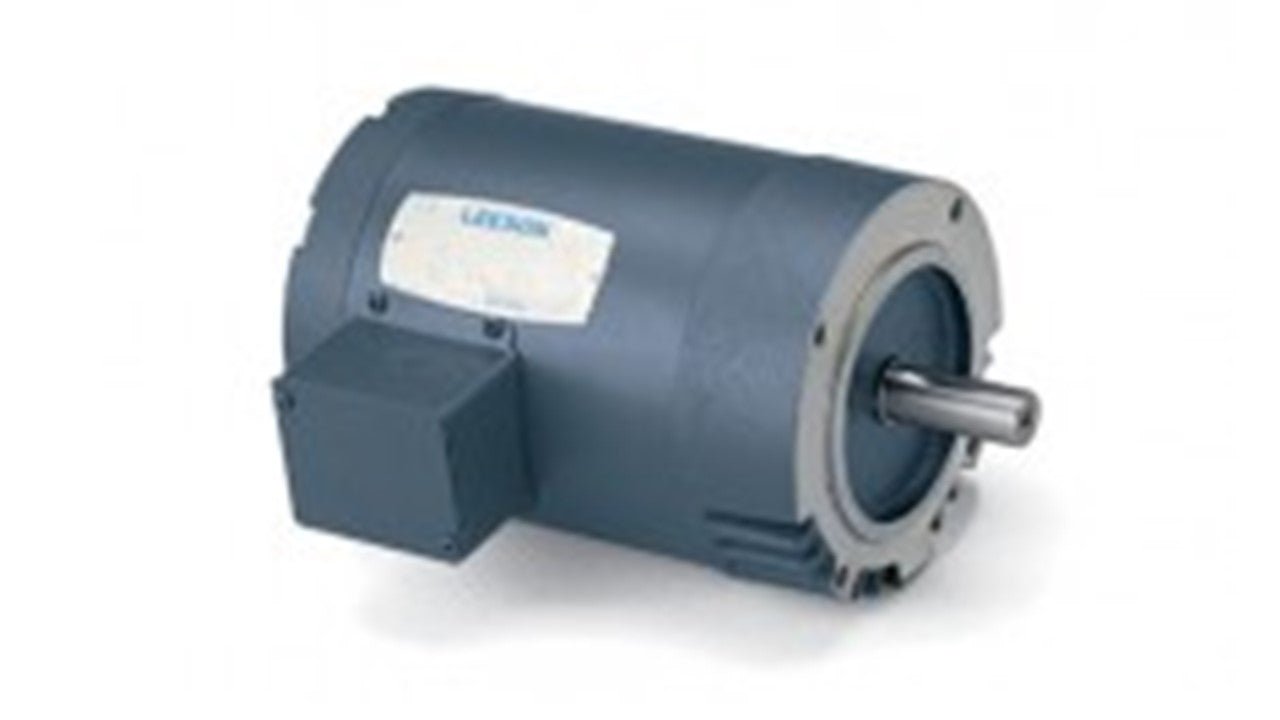

Leeson Motor 114624.00 is a wattsaver general purpose motor. For use in a wide range of commercial and industrial jobs, including compressors, pumps, conveyors, and blowers, that are exposed to to water and dust. This totally enclosed energy efficient motor gives you peace of mind for your money. Leeson general purpose motors are energy efficient and made with durable and quality parts that are long lasting. More features include:
- C Face with base
- Totally enclosed
- Balanced rotors
- Class B Insulation
- Torques that exceed NEMA performance standards
- 3 year warranty
Enjoy great service on Leeson Motors when you shop at Square One!
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
190/380 |
| F.L. Amps |
2.4 |
F.L. Amps |
1.2 |
F.L. Amps |
2.7/1.35 |
| S. F Amps |
2.8 |
S. F Amps |
1.4 |
S. F Amps |
3/1.5 |
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
3/4 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
0.56 |
|
|
|
|
| Frame |
56C |
Serv. Factor |
1.25 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
K |
| Insul Class |
F |
Protection |
AUTOMATIC |
Therm.Prot. |
9700K46 |
| Eff 100% |
81.5 |
Eff 75% |
|
PF |
72 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
Yes |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
1.5 X BASE SPEED |
|
| RPM |
1500 |
Hertz |
50 |
|
|
| HP |
3/4 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
0.56 |
|
|
|
|
| Frame |
56C |
Serv. Factor |
1.25 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
K |
| Insul Class |
F |
Protection |
AUTOMATIC |
Therm.Prot. |
9700K46 |
| Eff 100% |
75.5 |
Eff 75% |
|
PF |
81.6 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
Yes |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
1.5 X BASE SPEED |
|
| Motor Wt. |
28 LB |
Enclosure |
TEFC |
Lubrication |
POLYREX EM |
| Nameplate |
993500 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
5/8 IN |
Ext. Diag. |
005010.20 |
| Cust Part No |
|
Outline |
028784-575 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T634302 |
| Carton Label |
Leeson Wattsaver |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
GREEN - LEESON WATTSAVER |
Test Card |
01 |
