Model No. A6C17XB22

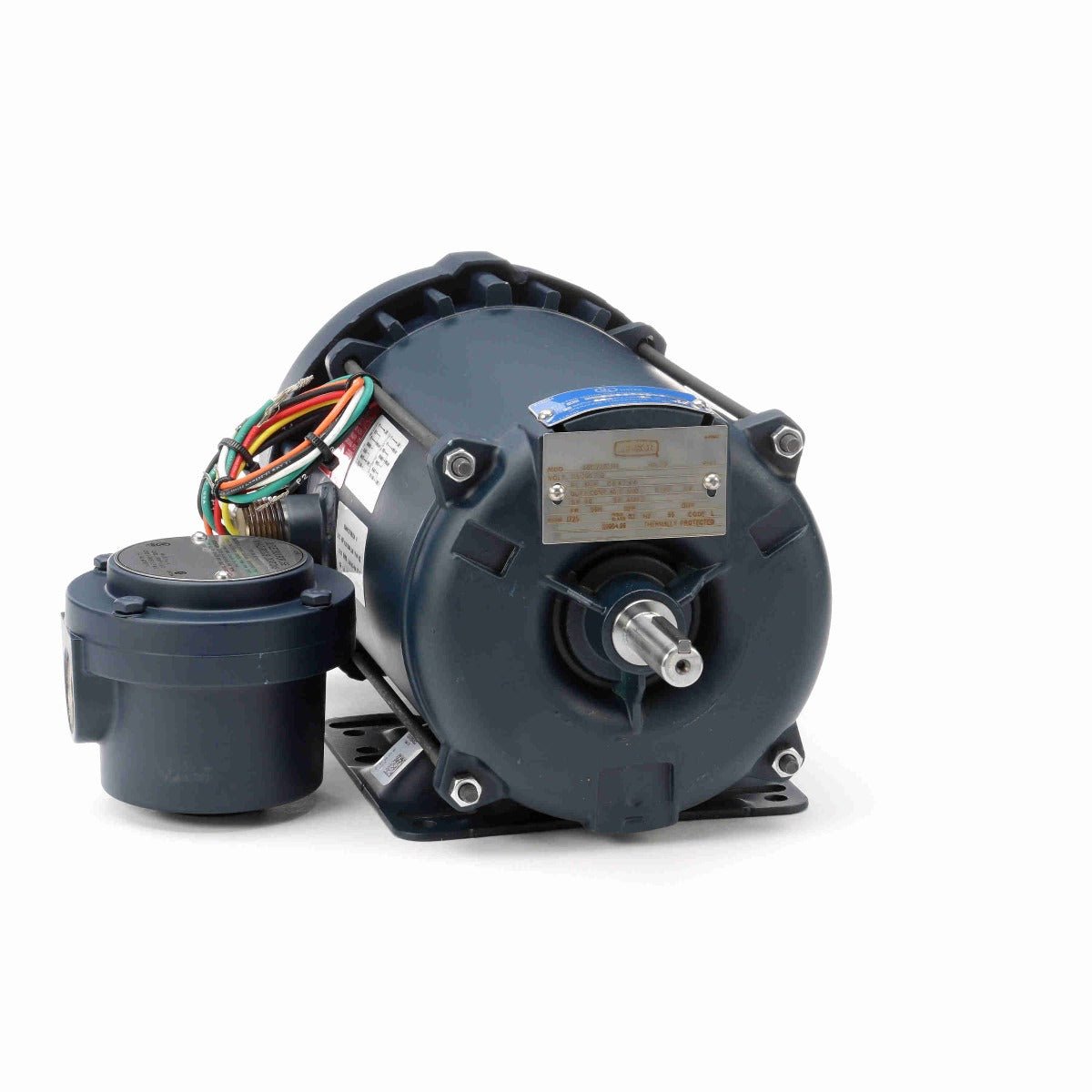

Leeson 111084.00 is your reliable choice for a single phase explosion proof motor for use in hazardous surroundings that need an explosion proof motor for areas that contain combustible gases, vapors and or dust that are present or could be present. This 1/2hp Leeson Motor gives you piece of mind for your money. This motor has many features including 1 year warranty and Made in the USA. More great features include:
- Meets all UL and CSA safety requirements
- Includes explosion proof conduit box
- Rolled steel construction
- Double shielded ball bearings
- Automatic overload protection
Specifications:
- Voltage: 115/230
- Amps: 4.4
- Service Factor: 1.00
- "C" Dimensions: 13.58
Engineering Data
| |
| Volts |
115 |
Volts |
208-230 |
Volts |
|
| F.L. Amps |
8.8 |
F.L. Amps |
4.2-4.4 |
F.L. Amps |
|
| S. F Amps |
|
S. F Amps |
|
S. F Amps |
|
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
1/2 |
Duty |
CONTINUOUS |
TYPE |
CX |
| KW |
0.37 |
|
|
|
|
| Frame |
56H |
Serv. Factor |
1.0 |
Phase |
1 |
| Max Amb |
40 |
Design |
N |
Code |
L |
| Insul Class |
B |
Protection |
AUTOMATIC |
Therm.Prot. |
MEJ36AV |
| Eff 100% |
66 |
Eff 75% |
|
PF |
58 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
No |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
32 LB |
Enclosure |
EPFC |
Lubrication |
POLYREX EM |
| Nameplate |
|
Mounting |
RIGID |
Rotation |
SELECTIVE CCW |
| Assembly |
A-S90894 |
Shaft Dia. |
5/8 IN |
Ext. Diag. |
A-102005-84-LE |
| Cust Part No |
|
Outline |
B-105907LE-681 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
ZC404 |
| Carton Label |
Leeson Exp Proof |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
BLUE - LEESON (ENAMEL) |
Test Card |
|
