Leeson Model No. C6T17FK5G

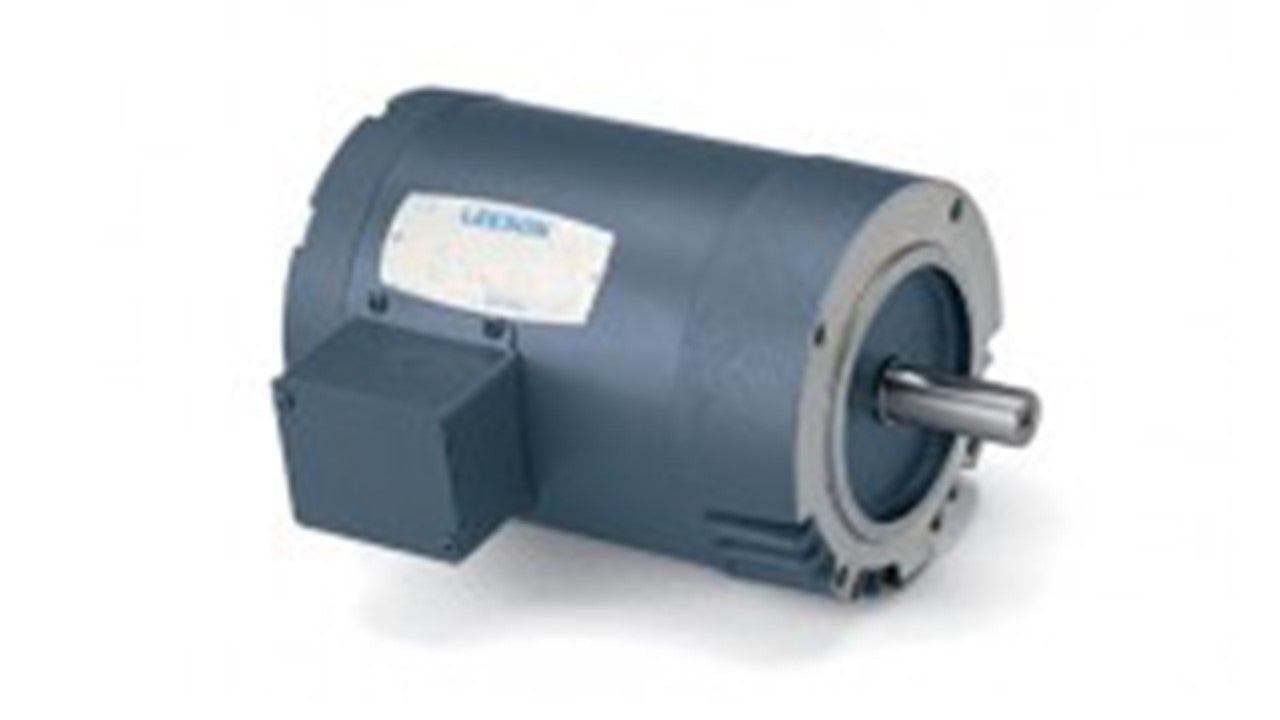

Leeson Motor 110916.00 is a reliable three phase totally enclosed general purpose ac motor. For use in a wide range of jobs that are exposed to water and dust, including compressors, pumps, and blowers, this motor gives you long lasting performance for your money. Three phase Leeson Motors have a NEMA C Face mount, which allows direct mounting to a pump or gear reducer or other direct coupled equipment. More features include:
- Rolled steel construction
- Shielded ball bearings
- Balanced rotors
- Continuous duty
- 1 year warranty
- UL recognized
- CSA Certified
- Torques exceed NEMA performance standards
For more motor information or support contact Square One or visit leeson.com.
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
|
| F.L. Amps |
2.8 |
F.L. Amps |
1.4 |
F.L. Amps |
|
| S. F Amps |
3 |
S. F Amps |
1.5 |
S. F Amps |
|
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
3/4 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
.56 |
|
|
|
|
| Frame |
56C |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
K |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
77 |
Eff 75% |
|
PF |
65 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
No |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
25 LB |
Enclosure |
TEFC |
Lubrication |
POLYREX EM |
| Nameplate |
993500 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
5/8 IN |
Ext. Diag. |
005010.01 |
| Cust Part No |
|
Outline |
028784-500 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T634188 |
| Carton Label |
Leeson Gen Purpose |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
BLUE - LEESON (ENAMEL) |
Test Card |
03 |
