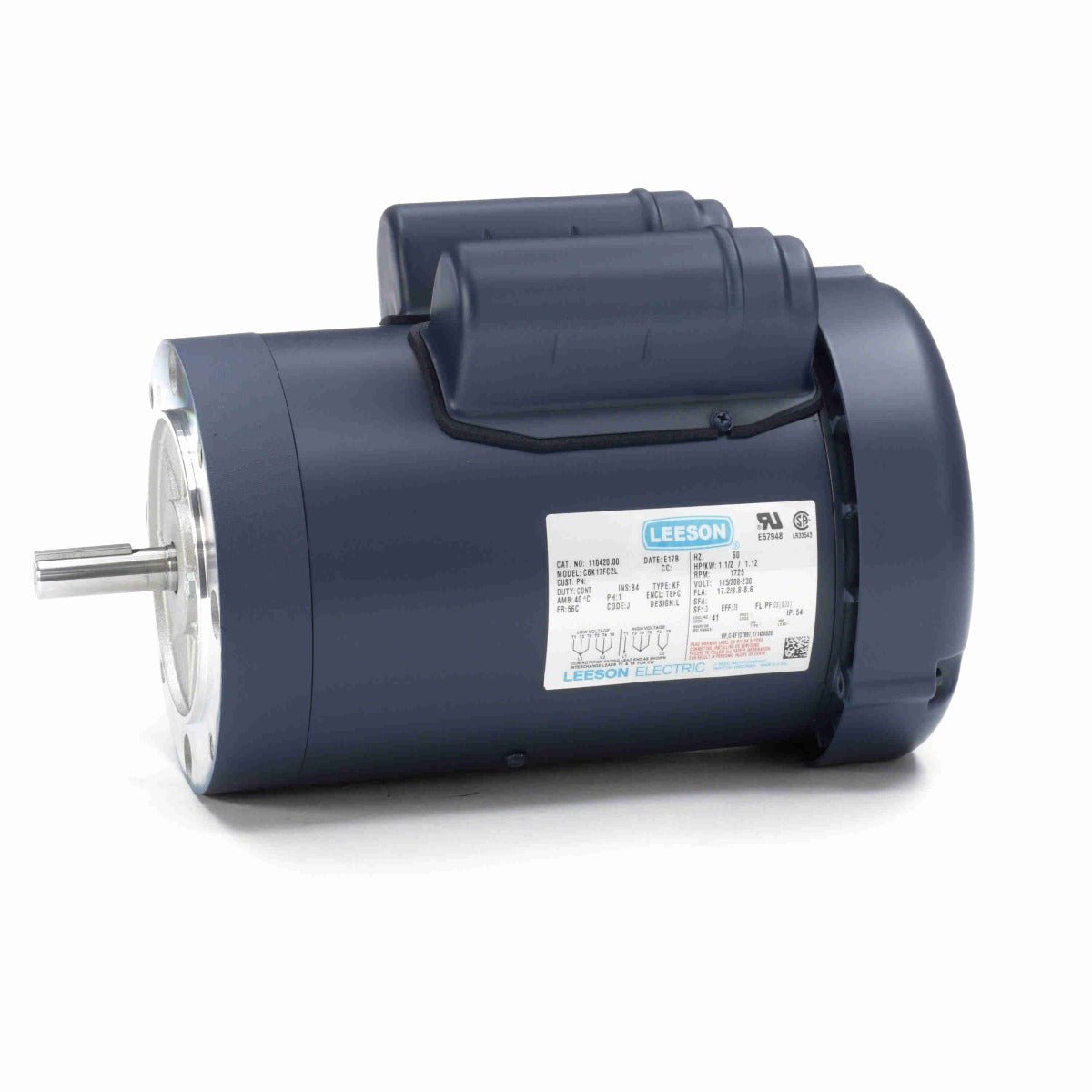

110420.00 Leeson Motor 1.5HP 1725RPM 56C TEFC 115/208-230Volt 1 Phase

In stock
SKU: 110420.00
Regular price $619.75
Regular price $939.00 Sale Sale price $619.75

Product details

  • SKU 110420.00
  • Brand Leeson
  • Phase 1
  • RPM 1201-1800
  • HP / KW 1.5
  • Application General Purpose
  • Frame 56C
  • Enclosure TOTALLY ENCLOSED
  • Voltage 115/208-230V
  • Flange C-Face Footless

Model No. C6K17FC2

110420.00 Leeson single phase totally enclosed general purpose electric motors can be used for a wide range of commercial and industrial jobs, including compressors, pumps, conveyors, and blowers. Leeson single phase c face electric motors are well made with a rolled steel body and quality ball bearings that last. More features include:



  • Meets or exceeds NEMA motor energy regulations
  • Class B insulation
  • UL Recognized Component Listing and CSA approval
  • Continuous duty
  • 1 year factory warranty
  • This item replaces Marathon G1531



Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products. For more product information, such as motor specs or wiring diagrams, visit www.leeson.com. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.





Engineering Data
Volts 115 Volts 208-230 Volts
F.L. Amps 17.2 F.L. Amps 8.8-8.6 F.L. Amps
S. F Amps None S. F Amps   S. F Amps

RPM 1800 Hertz 60
HP 1 1/2 Duty CONTINUOUS TYPE KF
KW 1.12
Frame 56C Serv. Factor 1.0 Phase 1
Max Amb 40 Design L Code J
Insul Class B Protection NOT Therm.Prot.
Eff 100% 79 Eff 75%   PF 73
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE

Motor Wt. 39 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting ROUND Rotation SELECTIVE CCW
Assembly   Shaft Dia. 5/8 IN Ext. Diag. 005054.01
Cust Part No   Outline 028783-750B Ext. Diag2
Packaging B     Winding K634278
Carton Label Leeson Gen Purpose     GROUP:
Iris   Paint BLUE - LEESON (ENAMEL) Test Card 02
