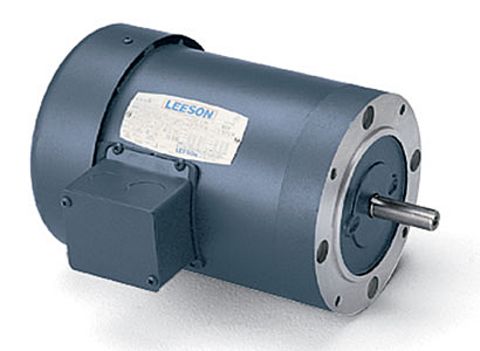

Leeson Model No. C6T17FC1G
Leeson Motor 110047.00 three phase general purpose electric motors can be used for a wide range of commercial and industrial jobs, including compressors, pumps, conveyors, and blowers. Leeson totally enclosed electric motors are well made with a rolled steel body and quality ball bearings that last. More features include:
- Meets or exceeds NEMA motor energy regulations
- Made in the USA
- UL Recognized Component Listing and CSA approval
- Continuous duty
- 1 year factory warranty
Leesonis a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products. For more product information, such as motor specs or wiring diagrams, visit www.leeson.com. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
|
| F.L. Amps |
2.8 |
F.L. Amps |
1.4 |
F.L. Amps |
|
| S. F Amps |
3 |
S. F Amps |
1.5 |
S. F Amps |
|
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
3/4 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
0.56 |
|
|
|
|
| Frame |
56C |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
K |
| Insul Class |
B |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
77 |
Eff 75% |
|
PF |
65 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
No |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
24 LB |
Enclosure |
TEFC |
Lubrication |
POLYREX EM |
| Nameplate |
993500 |
Mounting |
ROUND |
Rotation |
REV |
| Assembly |
|
Shaft Dia. |
5/8 IN |
Ext. Diag. |
005010.01 |
| Cust Part No |
|
Outline |
028776-500 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T634188 |
| Carton Label |
Leeson Gen Purpose |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
BLUE - LEESON (ENAMEL) |
Test Card |
03 |
