Manuf. Model No. C4T17NC47

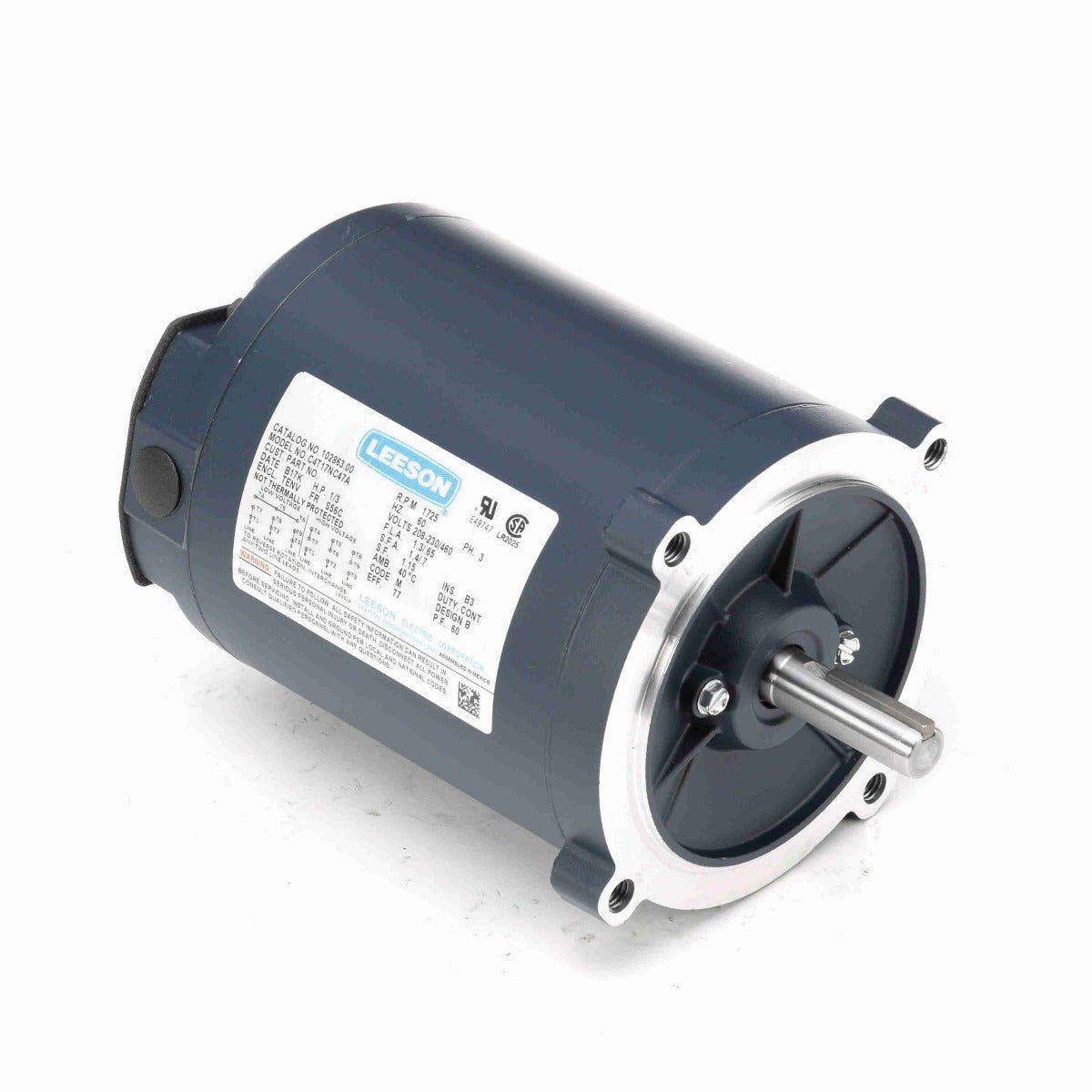

102863.00 Leeson totally enclosed electric motors are quality machines with rolled steel frames and durable ball bearings. Three phase Leeson electric motors can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs.
More features include:
- Meets or exceeds NEMA motor energy regulations
- UL Recognized Component Listing and CSA approval
- Continuous duty
- 1 year factory warranty
Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
|
| F.L. Amps |
1.3 |
F.L. Amps |
.65 |
F.L. Amps |
|
| S. F Amps |
1.4 |
S. F Amps |
.7 |
S. F Amps |
|
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
1/3 |
Duty |
CONTINUOUS |
TYPE |
TN |
| KW |
0.25 |
|
|
|
|
| Frame |
S56C |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
M |
| Insul Class |
B |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
77 |
Eff 75% |
|
PF |
60 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
NONE |
CE |
No |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
19 LB |
Enclosure |
TENV |
Lubrication |
VERIFY |
| Nameplate |
A-92005-4 |
Mounting |
ROUND |
Rotation |
REV |
| Assembly |
LO102863 |
Shaft Dia. |
5/8 IN |
Ext. Diag. |
005010.01 |
| Cust Part No |
|
Outline |
031654-550 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
TE48462 |
| Carton Label |
Leeson Gen Purpose |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
BLUE - LEESON (ENAMEL) |
Test Card
|
