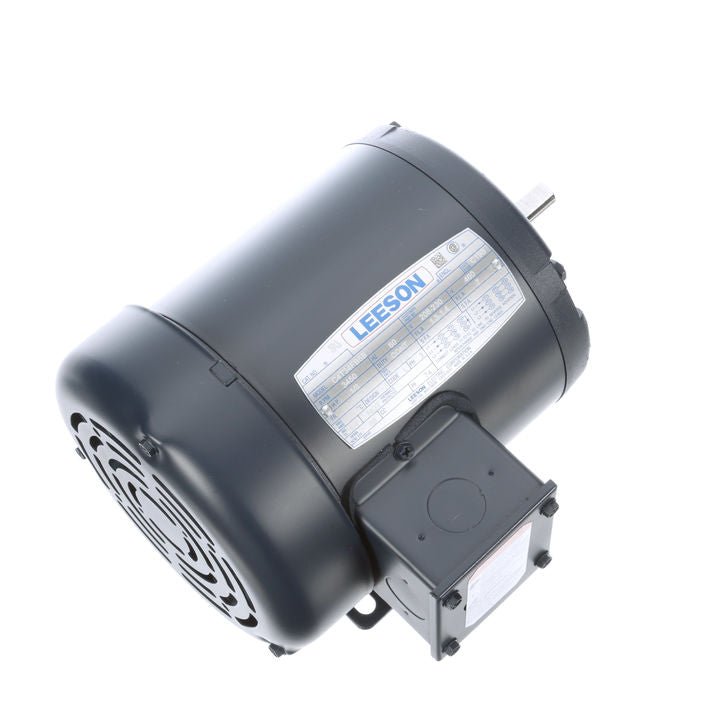

Leeson Model No. C4T34FB5
102684.00 Leeson totally enclosed general purpose motors are made with a rolled steel body and exceed NEMA design B performance. Use for a wide range of jobs that aren’t exposed to water and dust, including compressors, pumps, and blowers.
More three phase motor features include:
- Double shielded ball bearings
- Continuous duty
- 1 year warranty
Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping. If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage.
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
|
| F.L. Amps |
1.4 |
F.L. Amps |
.7 |
F.L. Amps |
|
| S. F Amps |
None |
S. F Amps |
|
S. F Amps |
|
|
| RPM |
3600 |
Hertz |
60 |
|
|
| HP |
1/3 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
0.25 |
|
|
|
|
| Frame |
48 |
Serv. Factor |
1.0 |
Phase |
3 |
| Max Amb |
40 |
Design |
NO DESIGN CODE |
Code |
L |
| Insul Class |
B |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
68 |
Eff 75% |
|
PF |
74 |
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
No |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
21 LB |
Enclosure |
TEFC |
Lubrication |
POLYREX EM |
| Nameplate |
004002 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
LO102684 |
Shaft Dia. |
1/2 IN |
Ext. Diag. |
005010.01 |
| Cust Part No |
|
Outline |
031809-450 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
T5526 |
| Carton Label |
Leeson Gen Purpose |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
STANDARD |
Test Card |
02 |
