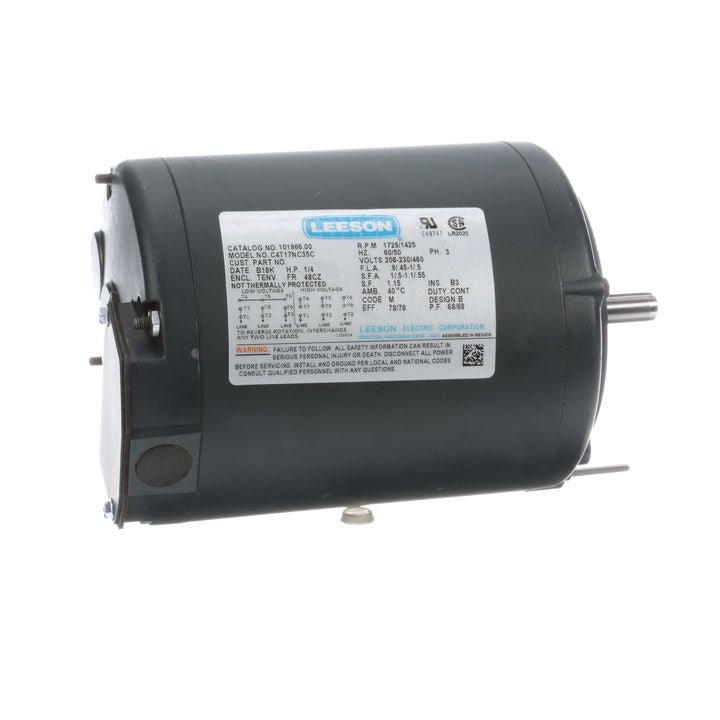

Model No. C4T17NC35
101966.00 Leeson three phase electric motors are made with a rolled steel body and totally enclosed non ventilated. Use for a wide range of jobs that are exposed to water and dust, including compressors, pumps, and blowers. More single phase motor features include:
- Double shielded ball bearings
- Exceed NEMA design B performance
- Continuous duty
- 1 year warranty
If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage. Please Contact Us if you need assistance. Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products.
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
208-230/460 |
| F.L. Amps |
.9 |
F.L. Amps |
.45 |
F.L. Amps |
1/.5 |
| S. F Amps |
1 |
S. F Amps |
.5 |
S. F Amps |
1.1/.55 |
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
1/4 |
Duty |
CONTINUOUS |
TYPE |
TN |
| KW |
0.19 |
|
|
|
|
| Frame |
48CZ |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
M |
| Insul Class |
B |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
78 |
Eff 75% |
|
PF |
68 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
|
CE |
No |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| RPM |
1500 |
Hertz |
50 |
|
|
| HP |
1/4 |
Duty |
CONTINUOUS |
TYPE |
TN |
| KW |
0.19 |
|
|
|
|
| Frame |
48CZ |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
M |
| Insul Class |
B |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
78 |
Eff 75% |
|
PF |
68 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
|
CE |
No |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
20 LB |
Enclosure |
TENV |
Lubrication |
VERIFY |
| Nameplate |
A-92005-4 |
Mounting |
ROUND |
Rotation |
REV |
| Assembly |
LO101966 |
Shaft Dia. |
1/2 IN |
Ext. Diag. |
005010.01 |
| Cust Part No |
|
Outline |
031703-550 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
TE48451 |
| Carton Label |
Leeson Gen Purpose |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
BLUE - LEESON (ENAMEL) |
Test Card
|
