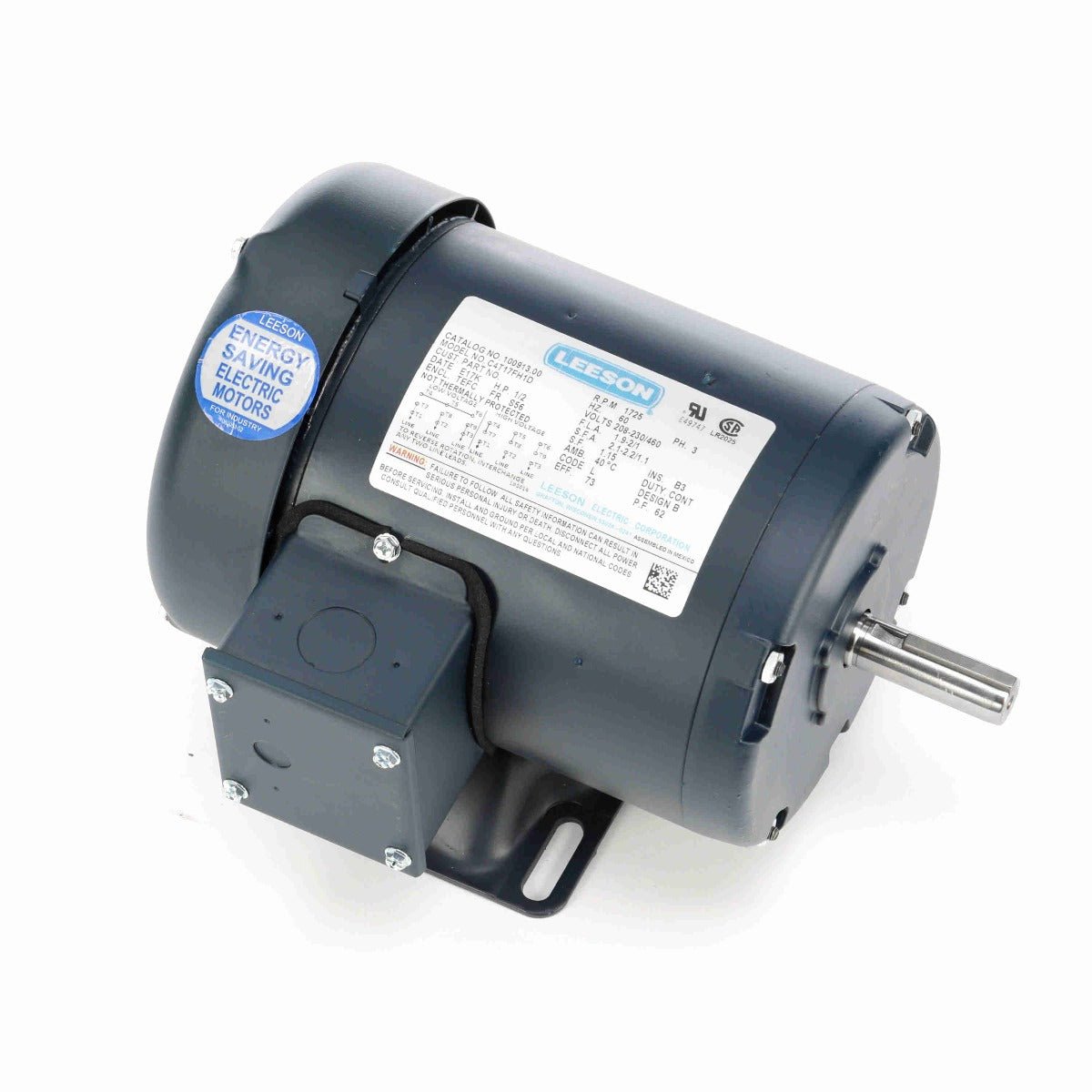

Leeson Model No. C4T17FH1
100913.00 Leeson totally enclosed general purpose motors feature rolled steel construction and double shielded ball bearings. They can be used for many jobs, including compressors, pumps and blowers. More features include:
- Class B insulation
- UL recognized
- CSA certified
- Torques exceed NEMA standards
Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping. If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage.
| Engineering Data |
| Volts |
208-230 |
Volts |
460 |
Volts |
|
| F.L. Amps |
1.9-2 |
F.L. Amps |
1 |
F.L. Amps |
|
| S. F Amps |
2.1-2.2 |
S. F Amps |
1.1 |
S. F Amps |
|
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
1/2 |
Duty |
CONTINUOUS |
TYPE |
TF |
| KW |
0.37 |
|
|
|
|
| Frame |
S56 |
Serv. Factor |
1.15 |
Phase |
3 |
| Max Amb |
40 |
Design |
B |
Code |
L |
| Insul Class |
B |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
73 |
Eff 75% |
|
PF |
62 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
No |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
18 LB |
Enclosure |
TEFC |
Lubrication |
VERIFY |
| Nameplate |
A-92005-4 |
Mounting |
RIGID |
Rotation |
REV |
| Assembly |
LO100913 |
Shaft Dia. |
5/8 IN |
Ext. Diag. |
005010.01 |
| Cust Part No |
|
Outline |
031632-525 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
TE48415 |
| Carton Label |
Leeson Gen Purpose |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
BLUE - LEESON (ENAMEL) |
Test Card
|
