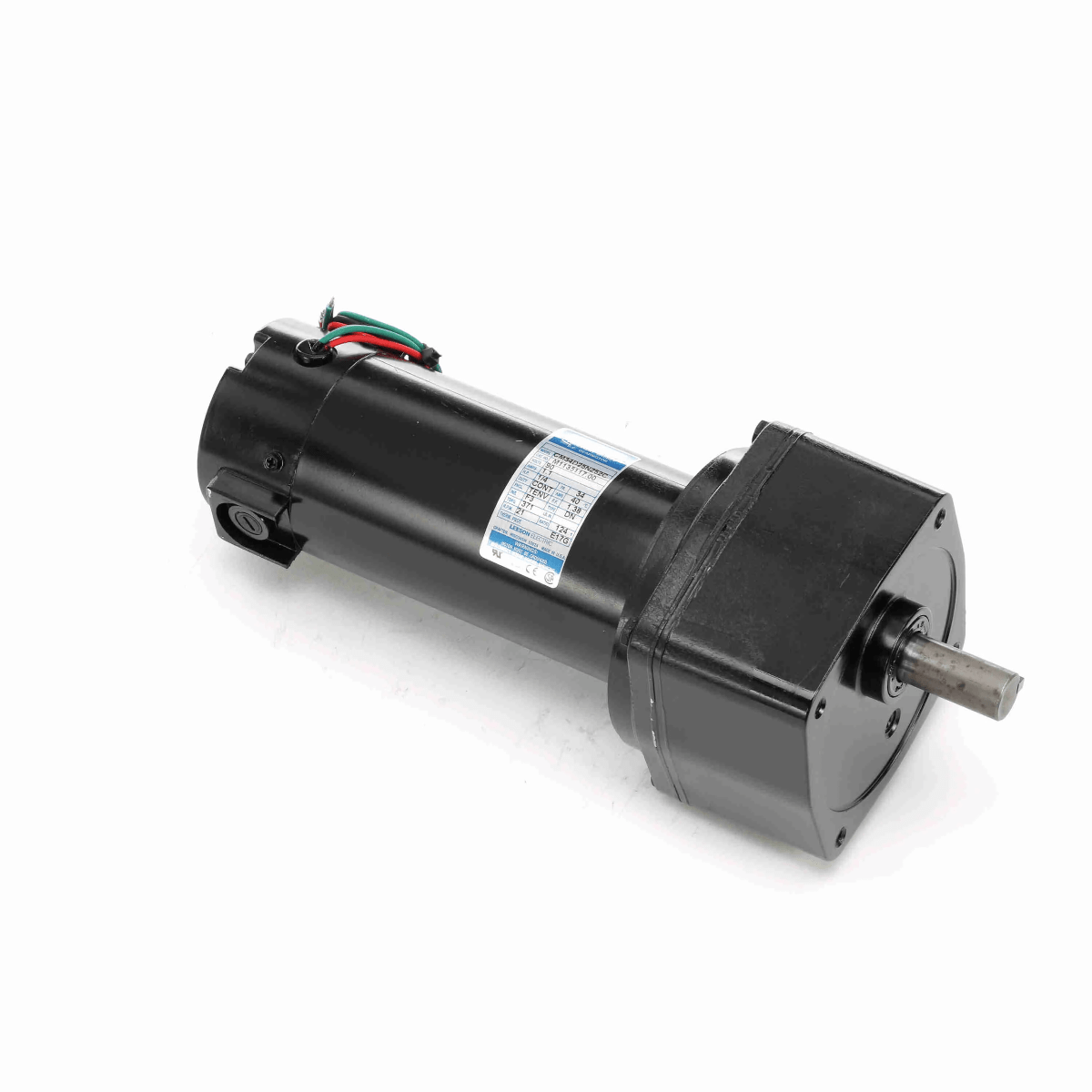

* Image is for reference only

M1135117 Leeson Gear Motor 1/4HP 21RPM 34 TENV 90V DC

Name: M1135117 Leeson Gear Motor 1/4HP 21RPM 34 TENV 90V DC
Brand: Leeson
SKU: M1135117.00
Price: 799.00 USD
Availability: OutOfStock

SKU: M1135117.00

$799.00

Sale $799.00

Description

Description

Rugged die cast aluminum gear housing supplies maximum gear and bearing support.
Performance matched for continuous duty service.
Heavy duty industrial oil seals keep lubricant in and dirt out.
All gearing designed and rated to AGMA Class 9 Standards, and to withstand momentary shock overload of 200%.

Technical Specifications

Rotation:	Reversible	Mounting:	Special
Shaft Type:	Parallel	Overall Length:	13.31 in
Frame Length:	6.06 in	Shaft Diameter:	0.750 in
Shaft Extension:	1.625 in	Torque:	371 LB-IN
