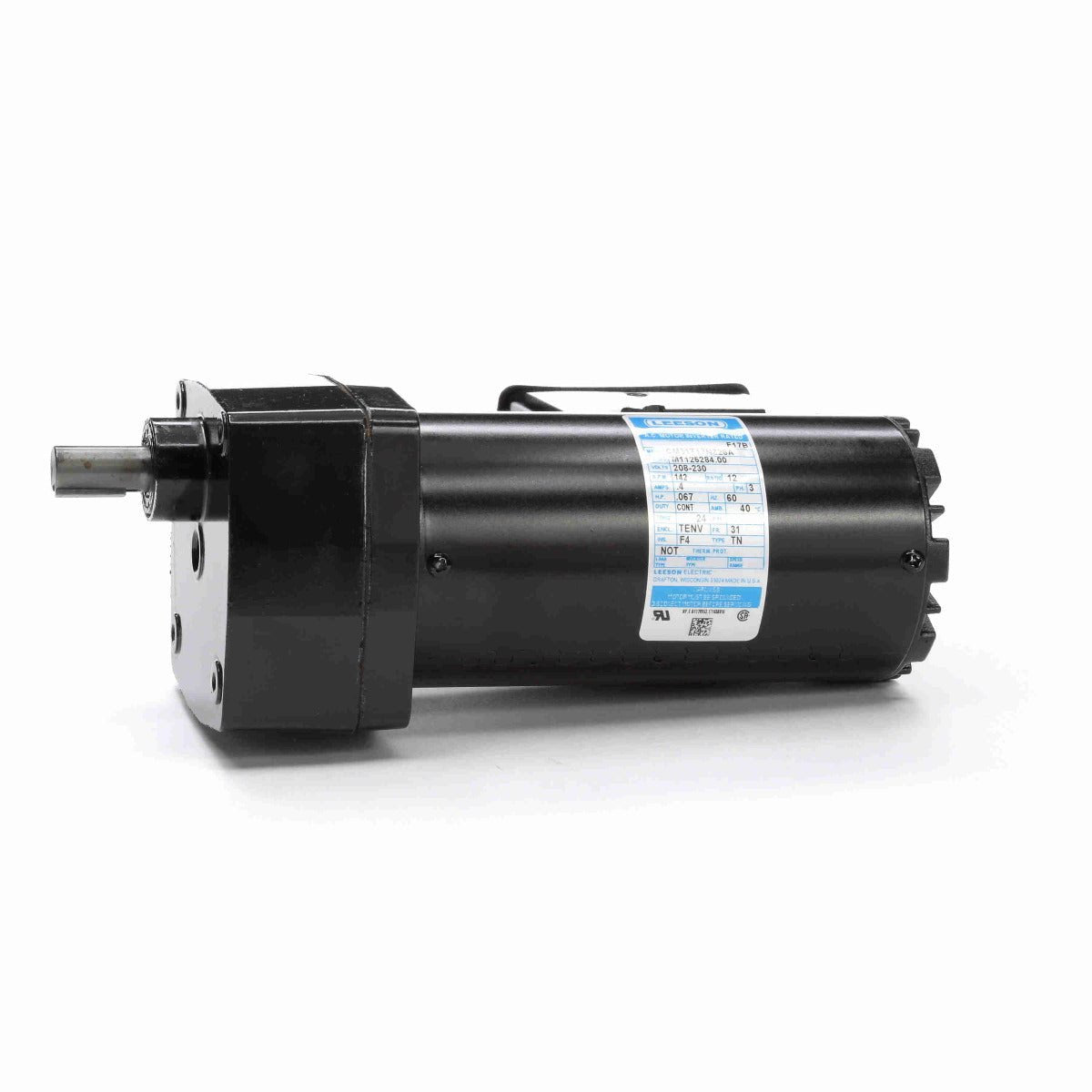

* Image is for reference only

M1125284 Leeson Gear Motor 1/15HP 142RPM 31 TENV 208-230V 3 Phase

SKU: M1125284.00
$728.00
Sale $728.00
Description
  • Designed with the exclusive Inverter Rated Insulation System (IRIS)
  • Provides superior protection against voltage spikes induced by variable frequency drives
  • Double shielded motor ball bearings
  • Needle bearings in the parallel shaft gearboxes
  • Steel conduit box provided as Standard
  • Finished in high gloss hardened black enamel paint

Technical Specifications

Rotation: Reversible Mounting: Special
Shaft Type: Parallel Overall Length: 9.73 in
Frame Length: 5.75 in Shaft Diameter: 0.500 in
Shaft Extension: 1 in Torque: 24 LB-IN
