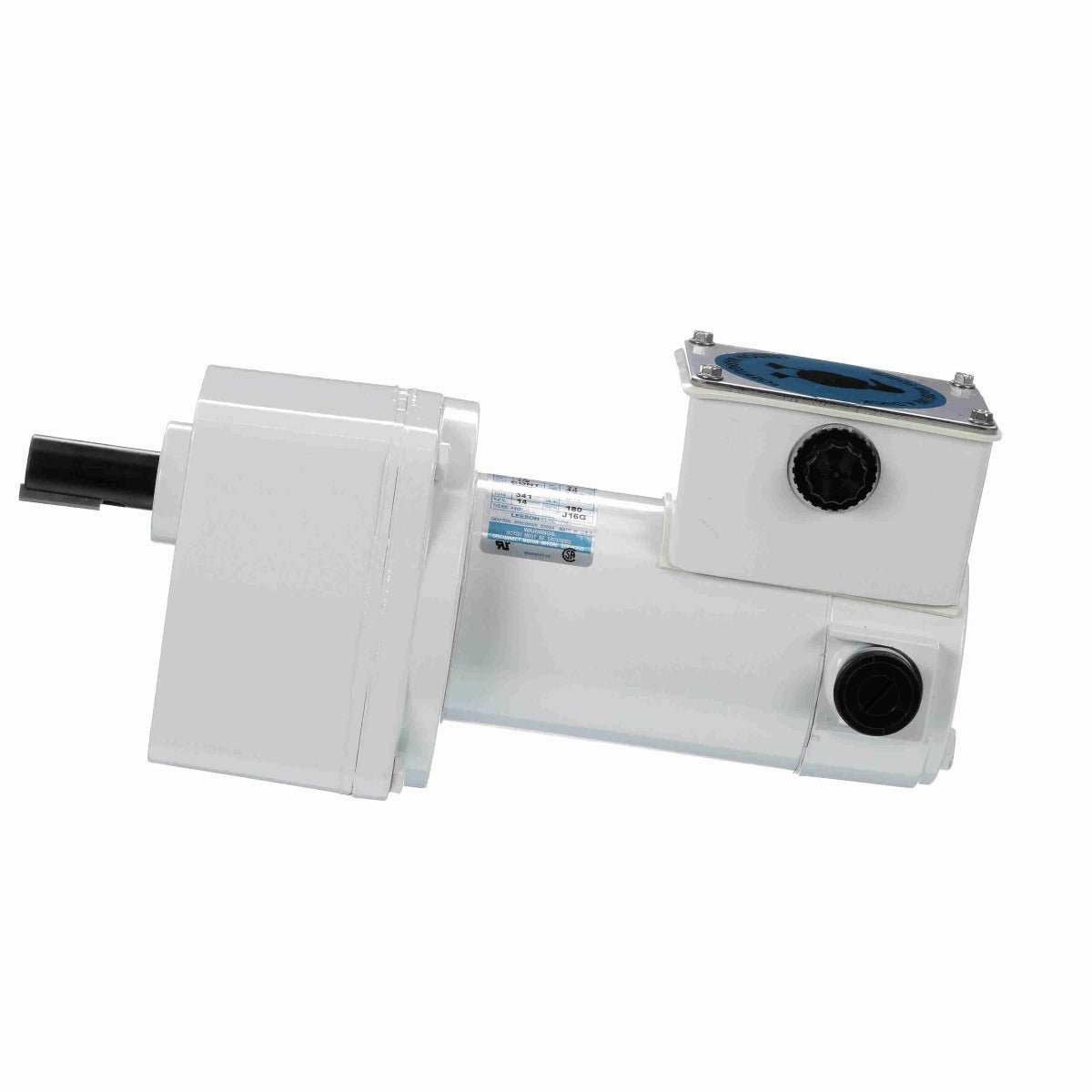

M1125273.00 Leeson DC Gearmotor | 1/8HP 14RPM 31 TENV 12V

SKU: M1125273

$766.58

Sale $766.58

Description

Description

Rugged die cast aluminum gear housing supplies maximum gear and bearing support.
Performance matched for continuous duty service.
Heavy duty industrial oil seals keep lubricant in and dirt out.
All gearing designed and rated to AGMA Class 9 Standards, and to withstand momentary shock overload of 200%.

Rotation:	Reversible	Mounting:	Special
Shaft Type:	Parallel	Overall Length:	11.84 in
Frame Length:	4.44 in	Shaft Diameter:	0.750 in
Shaft Extension:	1.63 in	Torque:	341 LB-IN
