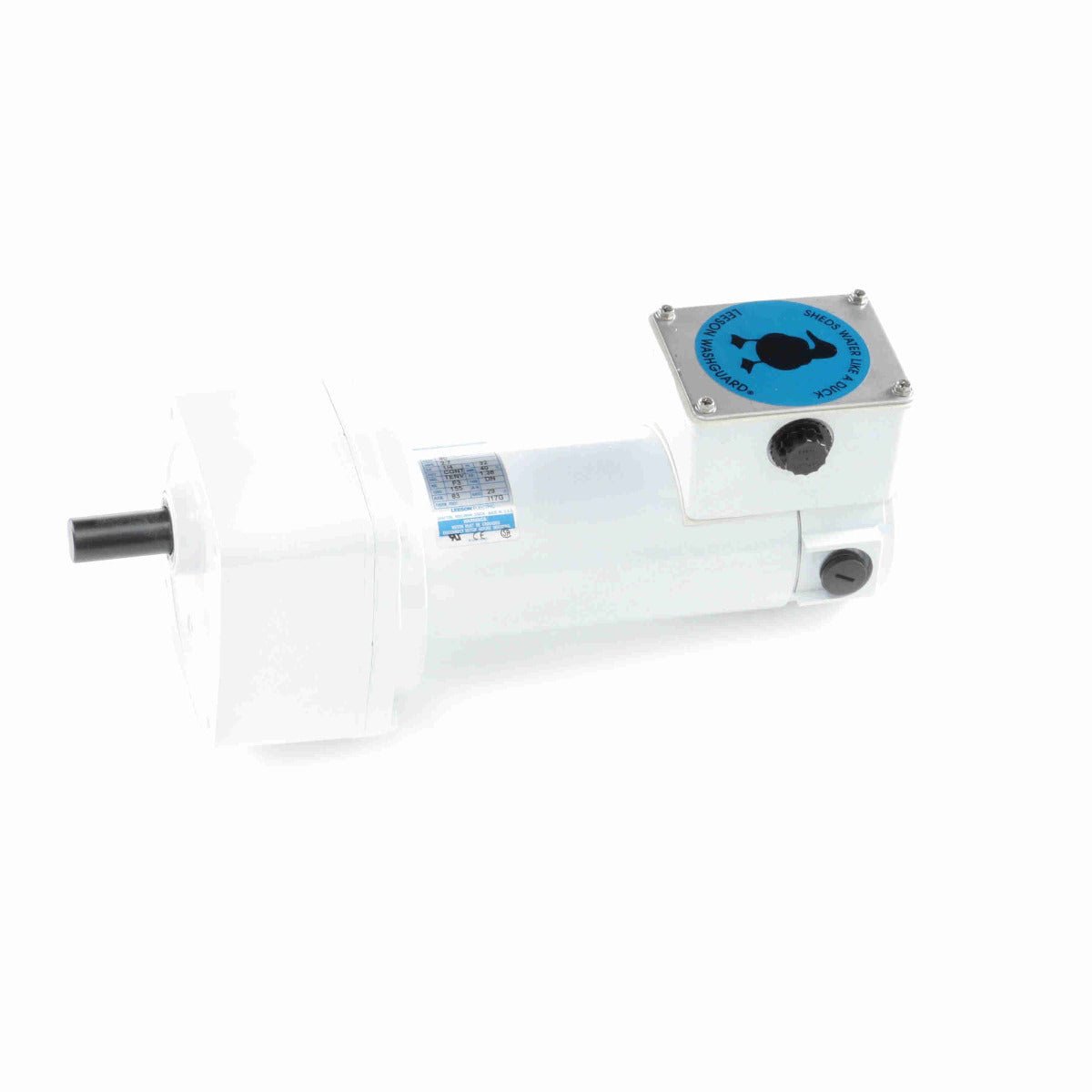

M1125270.00 Leeson Gear Motor 1/4HP 83RPM 32 TENV 90V DC

In stock
SKU: M1125270.00
Regular price $806.25
Regular price $1,075.00 Sale Sale price $806.25

Product details

  • SKU M1125270.00
  • GTIN 691720346549
  • Brand Leeson
  • Phase DC
  • RPM 0-599
  • HP / KW 1/4 (.25)
  • Application Gear Motor
  • Voltage 90V
  • Shaft Alignment Parallel
  • Torque / LB. IN 100-199
  • Gearbox output shafts are coated with Mirolon 3300 fortified Teflon for superior corrosion resistance
  • Frame, end shields, armature and interior components protected by enamel and polyester compounds for resistance to moisture, acids, alkalies and oil
  • Precision machined in-line steel gears; First stage steel helical gear followed by spur-type gears
  • Lubrication is permanent semi-fluid grease, reducing possibility of leakage
  • Output shafts have needle bearings for high load capacities; Gearbox shafts are hardened steel
  • Cast conduit box with threaded conduit holes and Nitrile gaskets keep water out; Conduit box cover is made from 304 stainless steel
  • For any condensation that may accumulate inside the motor, a one-way stainless steel vapor vent is provided
  • All hardware is stainless steel; Painted with white epoxy for superior corrosion resistance and protection
  • Machined fits between the end bells and motor frame are sealed with gaskets
  • Thru-bolt heads and nuts sealed with fiber washers; O-rings under each threaded brush cover

Technical Specifications
