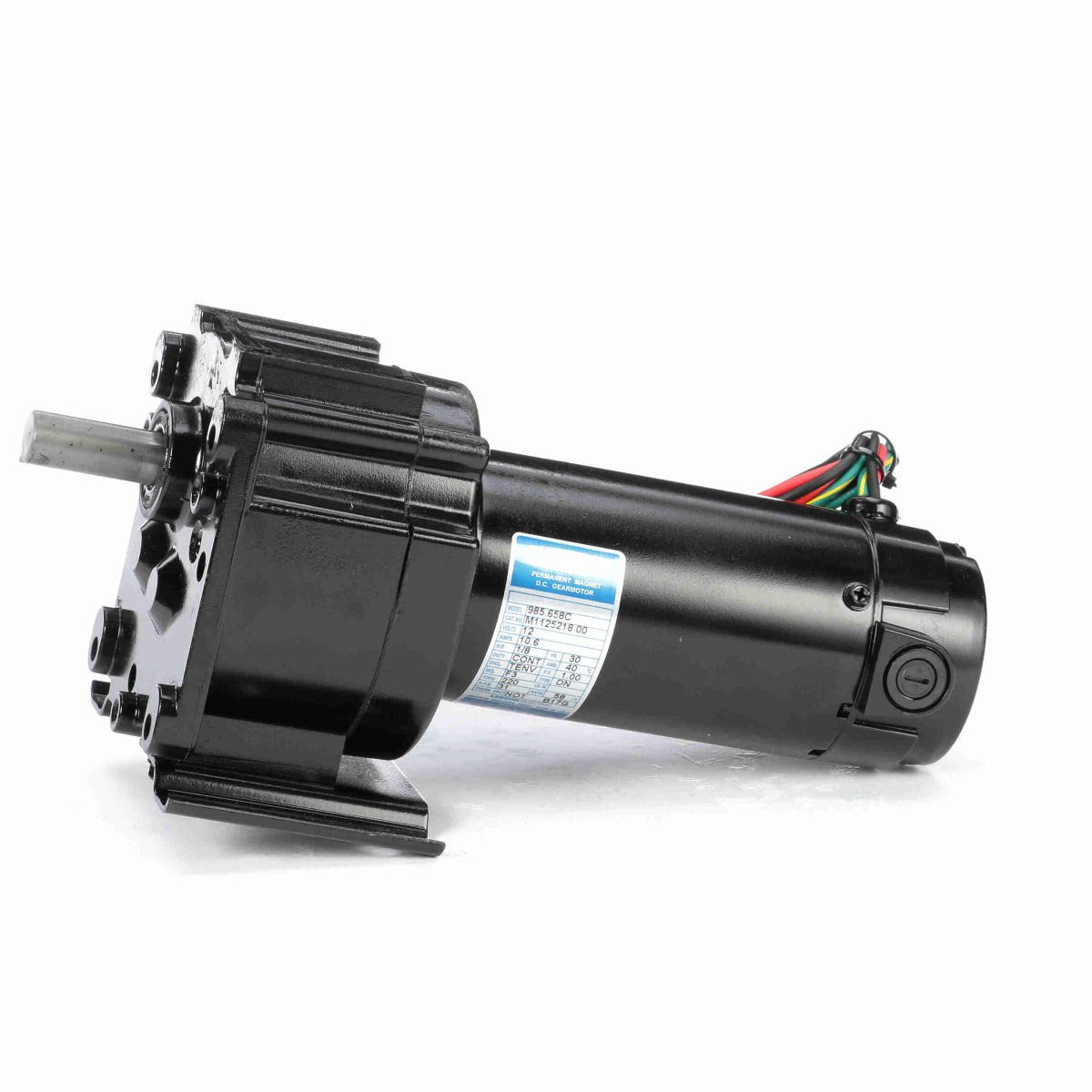

M1125218 Leeson Gear Motor 1/8HP 31RPM 30 TENV 12V DC

Name: M1125218 Leeson Gear Motor 1/8HP 31RPM 30 TENV 12V DC
Brand: Leeson
SKU: M1125218.00
Price: 793.00 USD
Availability: InStock

SKU: M1125218.00

$793.00

Sale $793.00

Description

Description

Performance matched for continuous duty service.
Precision machined in-line steel gears.
Lubrication is permanent semi-fluid grease, reducing possibility of leakage.
Output shafts have needle bearings to handle high load capacities.

Technical Specifications

Rotation:	Reversible	Mounting:	Special
Shaft Type:	Parallel	Overall Length:	11.46 in
Frame Length:	4.91 in	Shaft Diameter:	0.625 in
Shaft Extension:	1.5 in	Torque:	220 LB-IN
