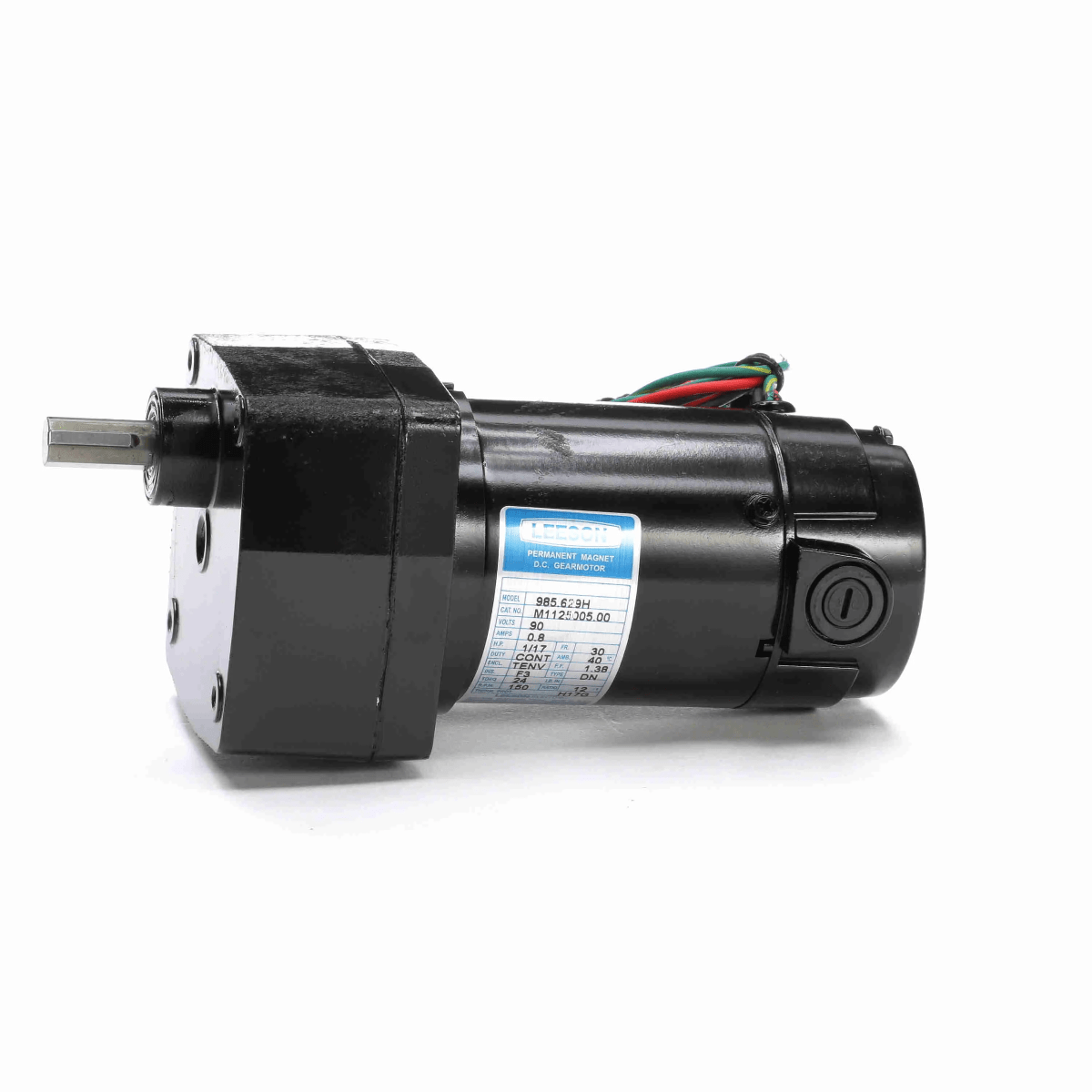

M1125005 Leeson Gear Motor 1/17HP 150RPM 30 TENV 90V DC

Name: M1125005 Leeson Gear Motor 1/17HP 150RPM 30 TENV 90V DC
Brand: Leeson
SKU: M1125005.00
Price: 544.00 USD
Availability: InStock

SKU: M1125005.00

$544.00

Sale $544.00

Description

Description

Performance matched for continuous duty.
Output shafts have needle bearings to handle high load capacities.
Lubrication is permanent semi-fluid grease, reducing possibility of leakage.
Precision machined in-line steel gears.
Optional conduit box and PZ gearmotor mounting brackets available.

Technical Specifications

Rotation:	Reversible	Mounting:	Special
Shaft Type:	Parallel	Overall Length:	8.46 in
Frame Length:	2.99 in	Shaft Diameter:	0.500 in
Shaft Extension:	1 in	Torque:	24 LB-IN
