Home » M1115025 Leeson Gear Motor 1/20HP 9RPM 30 TENV 90V DC
M1115025.00 Leeson Gear Motor

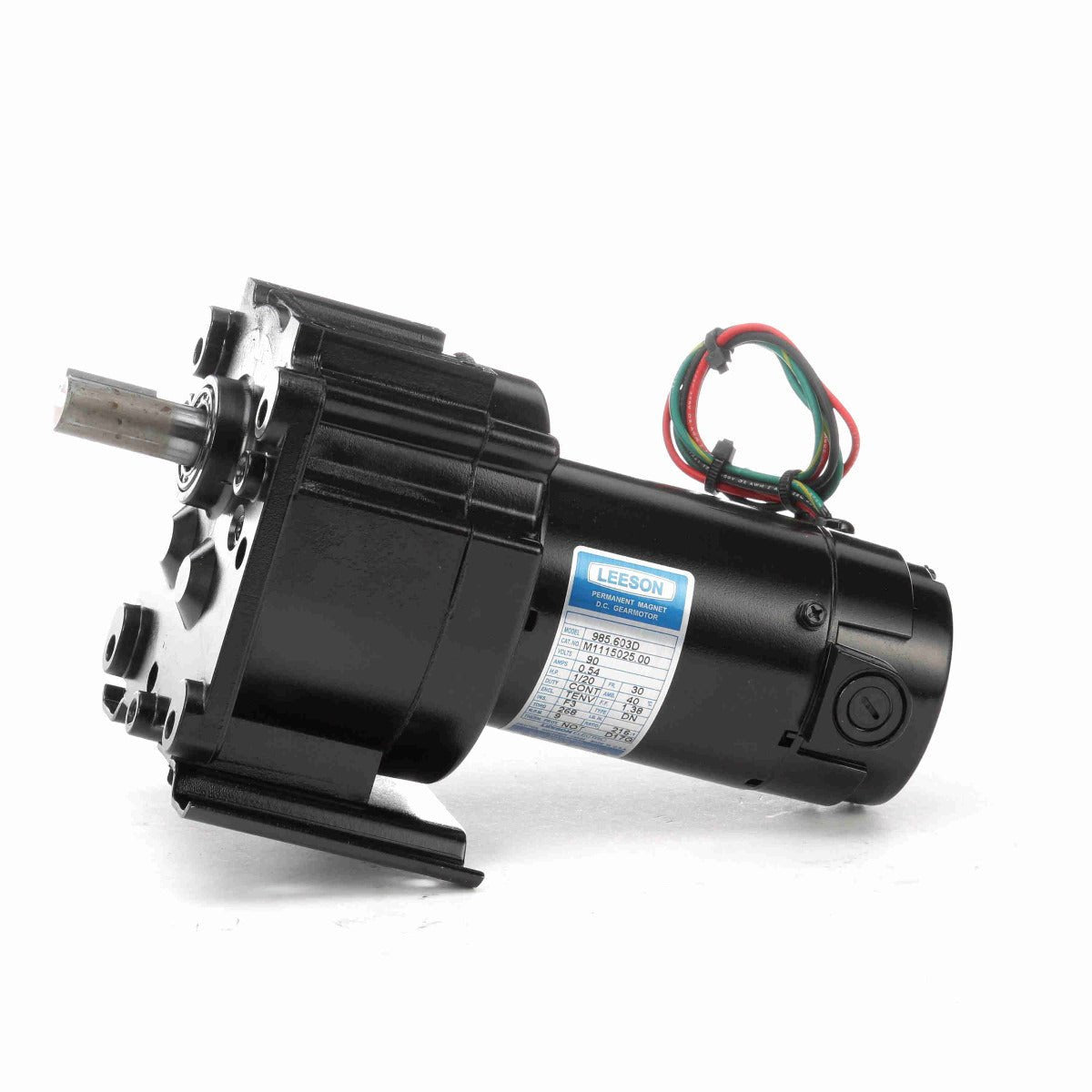

* Image is for reference only

M1115025 Leeson Gear Motor 1/20HP 9RPM 30 TENV 90V DC

SKU: M1115025.00
$627.26
$968.00 Sale $627.26
  • Performance matched for continuous duty service.
  • Precision machined in-line steel gears.
  • Lubrication is permanent semi-fluid grease, reducing possibility of leakage.
  • Output shafts have needle bearings to handle high load capacities.

Technical Specifications

Rotation: Reversible Mounting: Special
Shaft Type: Parallel Overall Length: 9.91 in
Frame Length: 3.36 in Shaft Diameter: 0.625 in
Shaft Extension: 1.5 in Torque: 268 LB-IN
