Home » M1115022 Leeson Gear Motor 1/17HP 500RPM 25 TENV 90V DC
M1115022 Leeson Gear Motor 1/17HP 500RPM 25 TENV 90V DC - Square One Electric Motors & Pumps

* Image is for reference only

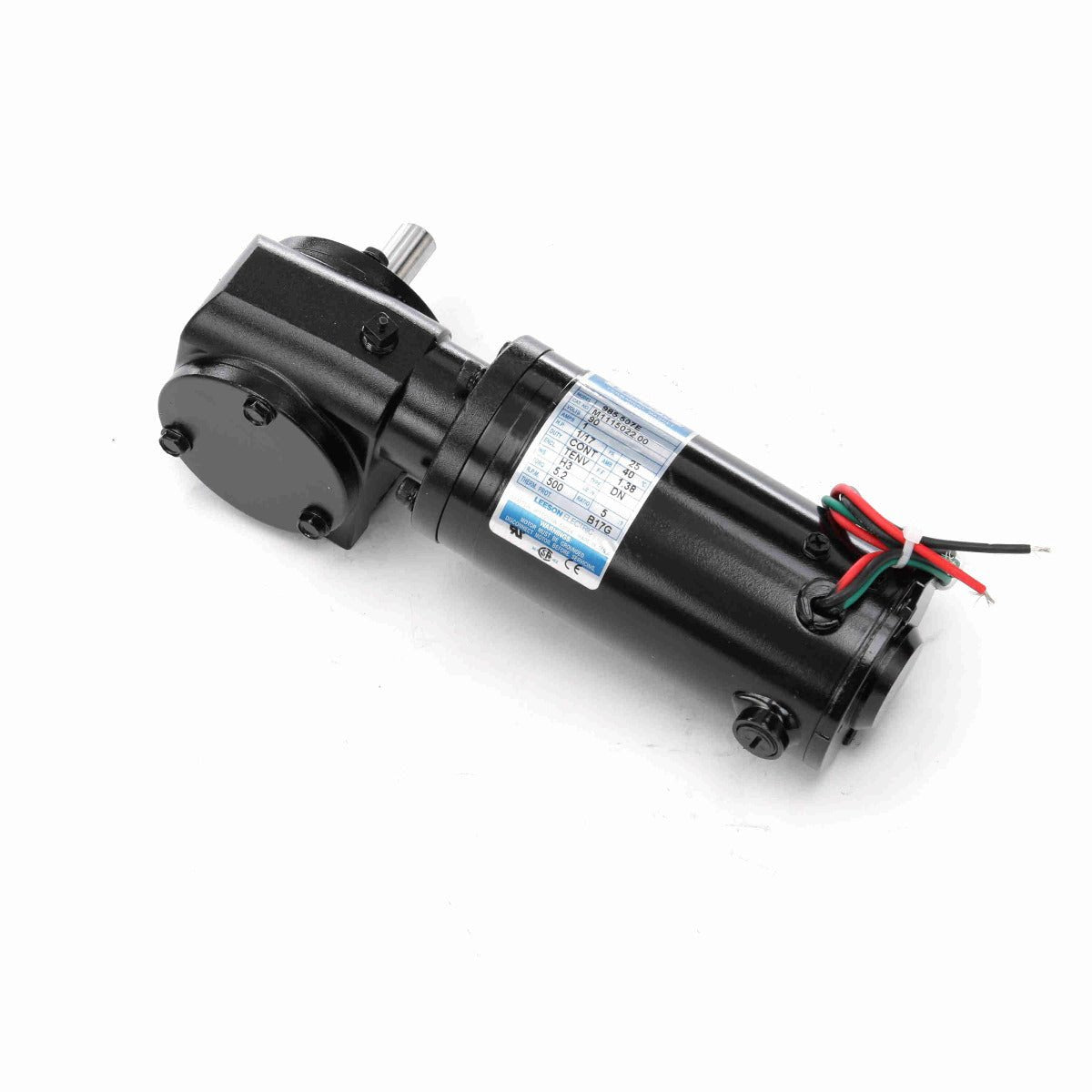

M1115022 Leeson Gear Motor 1/17HP 500RPM 25 TENV 90V DC

SKU: M1115022.00
$592.00
Sale $592.00
Description
  • Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation
  • Precision machined aluminum gear housing
  • Lubrication is permanent with an oil bath
  • Gearbox has all ball bearings
  • Output shaft is field interchangeable from left hand to right hand style by reassembly
  • Double output shaft available as a factory option
  • Optional conduit box available
  • Optional gearbox base available (10 Series only)

Technical Specifications

Rotation: Reversible Mounting: Special
Shaft Type: Right Angle Overall Length: 8.80 in
Frame Length: 4.25 in Shaft Diameter: 0.500 in
Shaft Extension: 1.3 in Torque: 5.2 LB-IN
