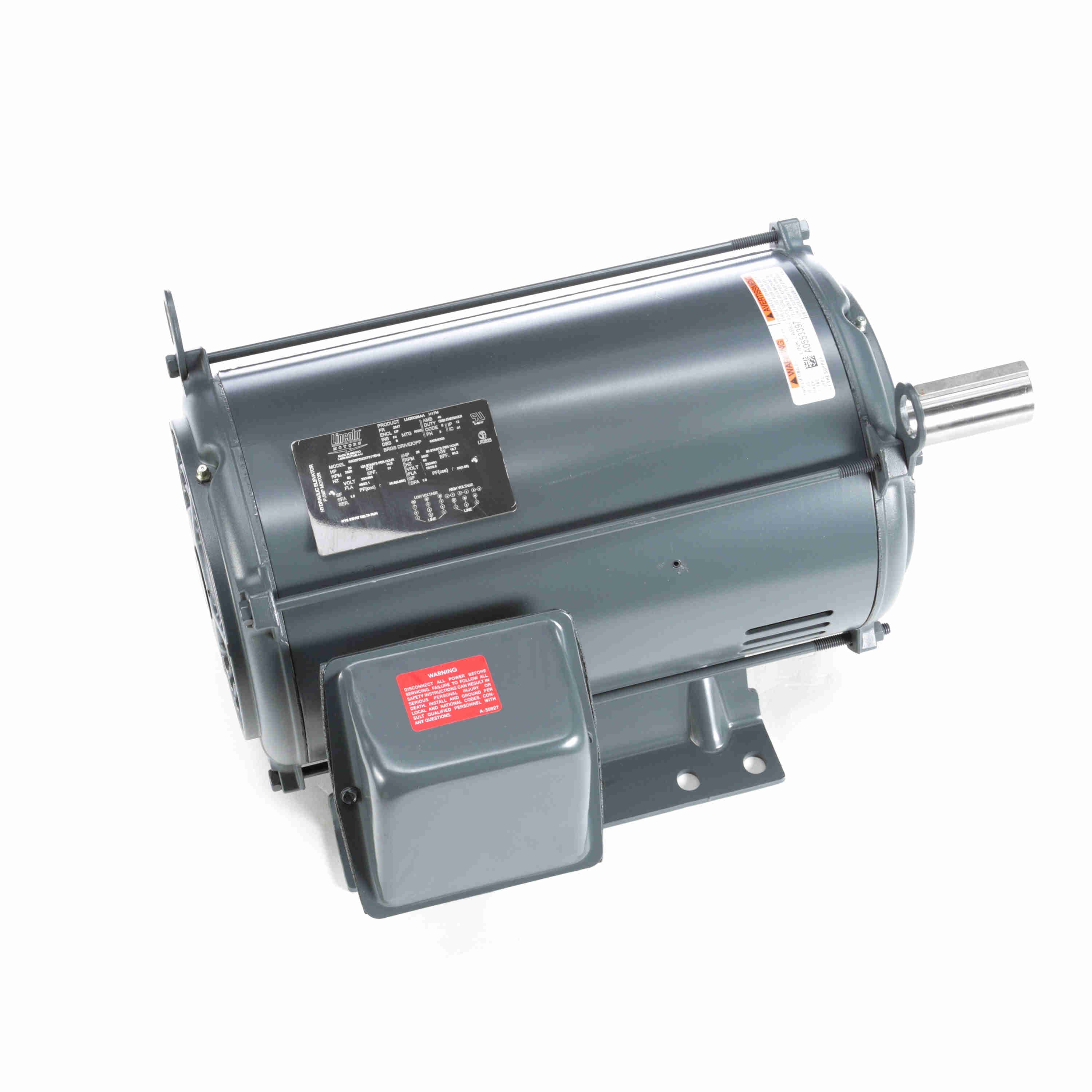

* Image is for reference only

LM30096 Leeson Motor 20HP 3600RPM 254TC DP 208-230/460V 3 Phase SSD2P20/25T61YEH2

SKU: LM30096
$1,825.42
Sale $1,825.42
Description
  • This item replaces Marathon U437
  • Dual rated nameplates for 80 & 120 starts/hour
  • Designed for belt driven pumps
  • Wye Start/Delta Run
  • Class F Insulated
  • 40° C ambient
  • F-1 mounting
  • Ball bearings with grease fittings and automatic relief
  • NEMA dimensions
  • UL recognized component listing and CSA approved
  • Constructed for low noise and low vibration
