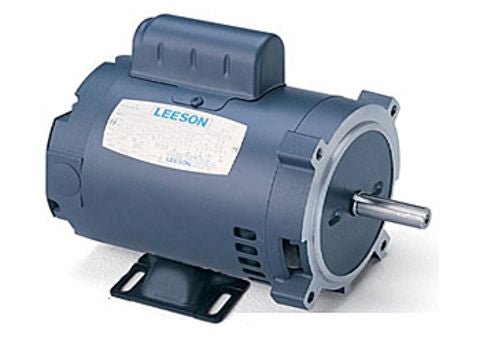

Leeson Model Number: C4K34DK4 - Replaces item # 103025.00
Energy Efficient Single phase Leeson electric motors can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. Their multiple nationwide warehouses are stocked with a wide selection of motors, from small fractional to large horsepower. Leeson is a leading motor manufacturer because they study customer needs and application, and design their equipment accordingly.
Leeson single phase electric motors are quality machines with rolled steel frames and durable ball bearings. The motors meet the most recent Energy Independence and Security Act (EISA) regulations for energy efficiency. More features include:
- Meets or exceeds NEMA motor energy regulations
- UL Recognized Component Listing
- CSA approval
- Continuous duty
- 3 year factory warranty
- "C" Dimension: 10.97"
Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
| Engineering Data |
| Volts |
115 |
Volts |
230 |
Volts |
|
| F.L. Amps |
7.2 |
F.L. Amps |
3.6 |
F.L. Amps |
|
| S. F Amps |
8.8 |
S. F Amps |
4.4 |
S. F Amps |
|
|
| RPM |
3600 |
Hertz |
60 |
|
|
| HP |
3/4 |
Duty |
CONTINUOUS |
TYPE |
KD |
| KW |
0.56 |
|
|
|
|
| Frame |
S56C |
Serv. Factor |
1.25 |
Phase |
1 |
| Max Amb |
40 |
Design |
N |
Code |
K |
| Insul Class |
B |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
76.2 |
Eff 75% |
|
PF |
89.2 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
Yes |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
26 LB |
Enclosure |
DP |
Lubrication |
VERIFY |
| Nameplate |
10000417-001-001 |
Mounting |
RIGID |
Rotation |
SELECTIVE CCW |
| Assembly |
|
Shaft Dia. |
|
Ext. Diag. |
A-005054.15-REGAL |
| Cust Part No |
|
Outline |
A-SS404120-750 |
Ext. Diag2 |
|
| Packaging |
F |
|
|
Winding |
BE48278 |
| Carton Label |
|
|
|
GROUP: |
3 |
| Iris |
|
Paint |
GREEN (POWDER) |
Test Card |
00 |
