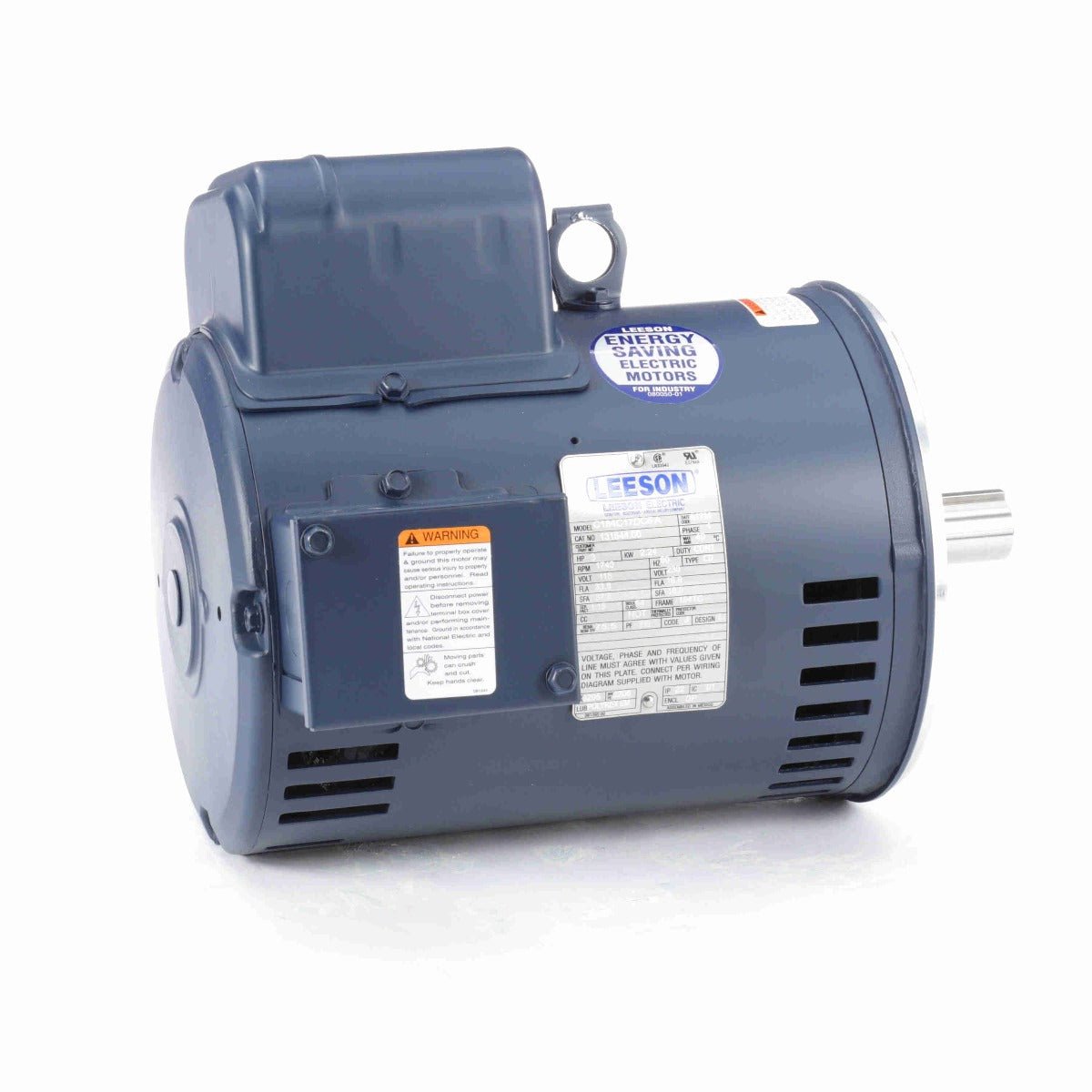

Leeson Model No. C184C17DC5
131544.00 is a 3HP Single phase Leeson electric motor your reliable choice to be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. Their numerous nationwide warehouses are stocked with a wide selection of motors, from small fractional to large horsepower. Leeson is a leading motor manufacturer because they study customer needs and application, and design their equipment accordingly.
Leeson single phase electric motors are quality machines with rolled steel frames and durable ball bearings. The motors meet the most recent Energy Independence and Security Act (EISA) regulations for energy efficiency. More features include:
- Meets or exceeds NEMA motor energy regulations
- UL Recognized Component Listing and CSA approval
- Continuous duty
- 1 year factory warranty
If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage. Please Contact Us if you need assistance. Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products.
| Engineering Data |
| Volts |
115 |
Volts |
230 |
Volts |
|
| F.L. Amps |
33.8 |
F.L. Amps |
16.9 |
F.L. Amps |
|
| S. F Amps |
37.8 |
S. F Amps |
18.9 |
S. F Amps |
|
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
3 |
Duty |
CONTINUOUS |
TYPE |
CD |
| KW |
2.24 |
|
|
|
|
| Frame |
184TC |
Serv. Factor |
1.15 |
Phase |
1 |
| Max Amb |
40 |
Design |
L |
Code |
J |
| Insul Class |
F |
Protection |
NOT |
Therm.Prot. |
|
| Eff 100% |
75.5 |
Eff 75% |
|
PF |
76 |
| UL |
Yes |
CSA |
Yes |
Bearing OPE |
6205 |
| CC Number |
|
CE |
No |
Bearing PE |
6206 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
76 LB |
Enclosure |
DP |
Lubrication |
POLYREX EM |
| Nameplate |
081285 |
Mounting |
ROUND |
Rotation |
SELECTIVE CCW |
| Assembly |
180-014 |
Shaft Dia. |
1 1/8 IN |
Ext. Diag. |
005062.01 |
| Cust Part No |
|
Outline |
035371-1000 |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
C8428 |
| Carton Label |
Leeson Gen Purpose |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
STANDARD |
Test Card |
01 |
