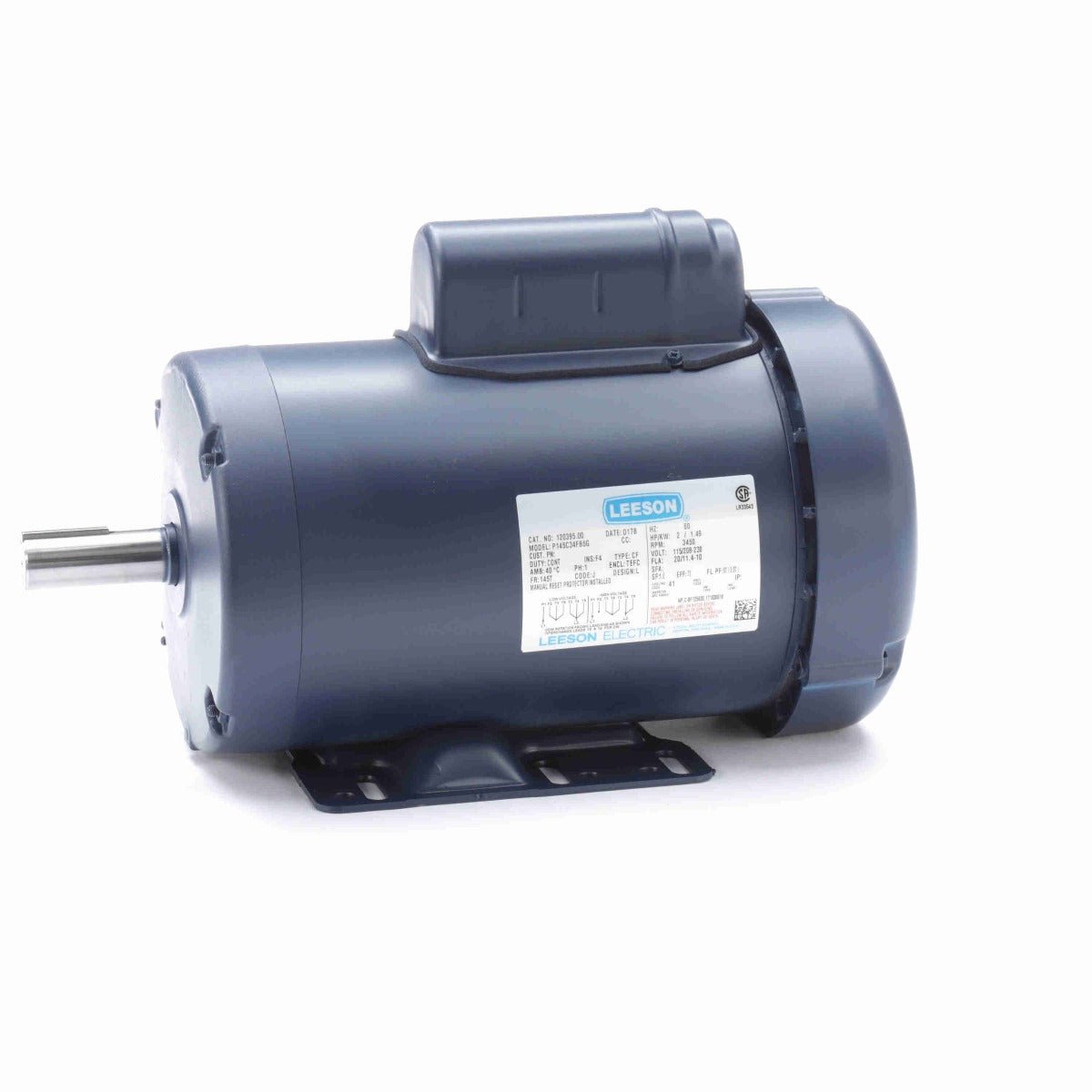

120395.00 Leeson Motor 2HP 3450RPM 145T TEFC 115/208-230Volt 1Phase P145C34FB5

Leeson Model No. P145C34FB5

Leeson Pressure Washer Pump Motors are equipped with a start and run capacitor for its low amperage, low vibration from a balanced rotor and double shielded ball bearings.  These motors have windings dipped in a heavy duty varnish system. This Leeson AC motor comes with a manual overload, meaning that there is a button on the motor to stop operation. Thermal overloads are designed to open the start circuit and cut power to the motor in the case that the motor begins overheating from drawing too much current for too long.

These Leeson Pressure Washer Motors are Totally enclosed (TEFC) motors which means they can be used more dirty or wet environments (to a point) – excessive water exposure may require a more sealed, washdown unit. Leeson Electric manufactures quality, durable single phase motors that meet and/or exceed energy efficiency regulations, even the most recent mandates. Motor efficiency is the ratio of its useful power output to its total power input, and is usually shown as a percentage. Features:

• Used for hot or cold pressure washer applications
• Manual reset overload protection
• High service factor
• "C" Dimension: 13.75"
• 10.0 AMPS
• 1.0 Service Factor

Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.
