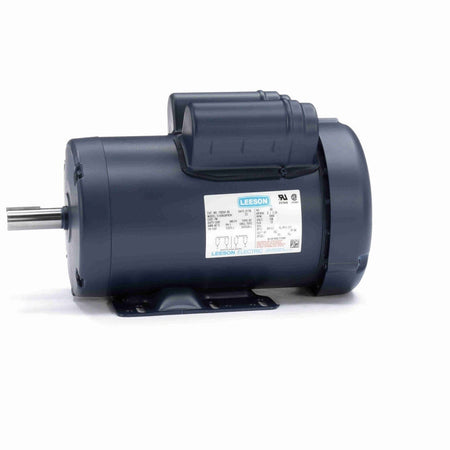

120341 Leeson Motor 3HP Single Phase

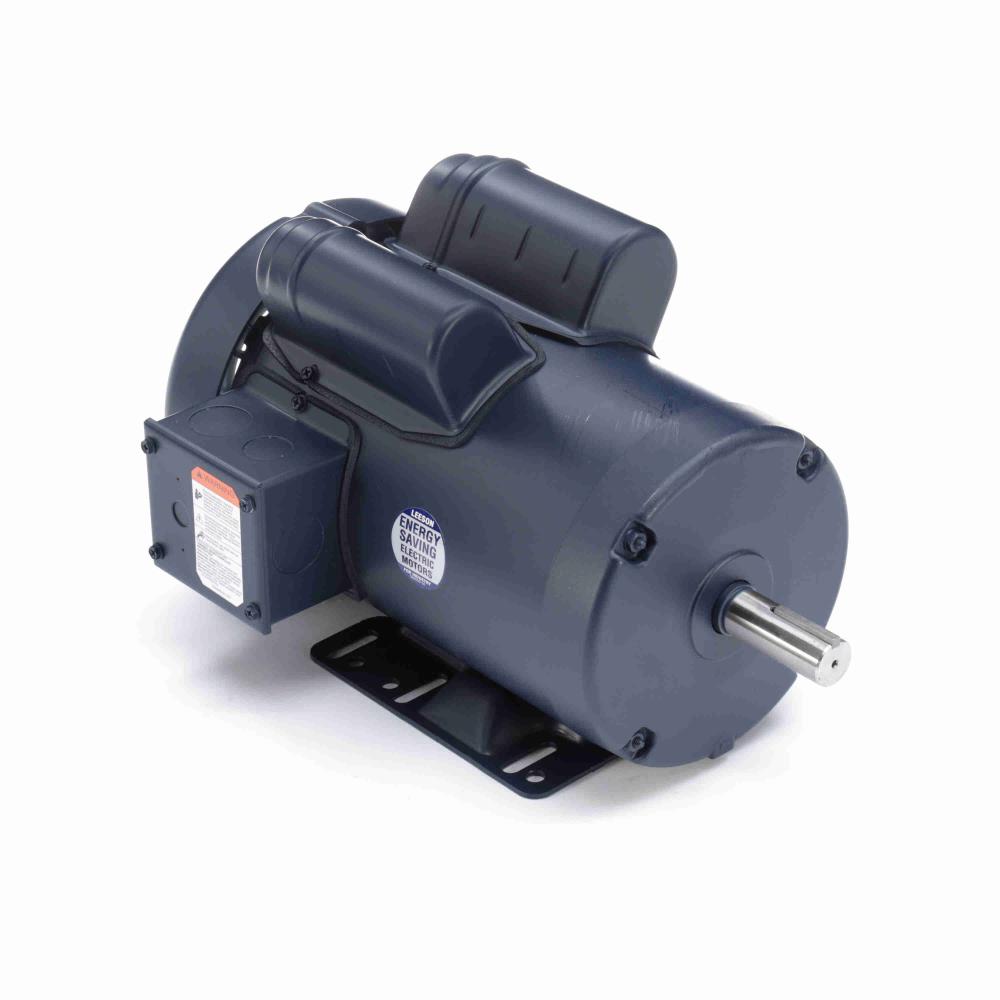

Leeson General Purpose Motor
120341 Leeson Motor 3HP Single Phase
Leeson General Purpose Motor

* Image is for reference only

120341.00 Leeson General Purpose Motor | 3HP 3450RPM 145T TEFC 230V Single Phase

SKU: 120341
$791.73
Sale $791.73
Description

Model No. C145K34FB3H

  • UL recognized component listing and CSA certification ensures the product is safe for use within a variety of applications.
  • Continuous duty cycle design allows maximum operation at the rated power. specifications
  • Heavy-duty, rolled steel construction ensures motor durability.
  • Permanently lubricated sealed bearings extend the lifetime of the motor.
  • Capacitor start design optimizes motor torque and efficiency performance.
  • LEESON® motors. Motors and solutions at our core™
SPECS

Nameplate Specifications

Phase: 1 Output HP: 3 Hp
Output KW: 2.2 kW Voltage: 230 V
Speed: 3450 rpm Service Factor: 1
Frame: 145T Enclosure: Totally Enclosed Fan Cooled
Thermal Protection: No Protection Efficiency: 81.5 %
Ambient Temperature: 40 °C Frequency: 60 Hz
Current: 13.0 A Power Factor: 91
Duty: Continuous Insulation Class: F
Design Code: L KVA Code: J
Drive End Bearing Size: 6205 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N IP Code: 54
Number of Speeds: 1

Technical Specifications

Electrical Type: Capacitor Start Capacitor Run Starting Method: Across The Line
Poles: 2 Rotation: Selective Counterclockwise
Resistance Main: .52 Ohms Mounting: Rigid Base
Motor Orientation: Horizontal Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: T Overall Length: 14.43 in
Frame Length: 8.50 in Shaft Diameter: 0.875 in
Shaft Extension: 2.25 in Assembly/Box Mounting: F1 ONLY

General Specifications

UPC: 691720015353 Weight: 49.00 LB
Packaged Length: 19.50 IN Packaged Width: 10.44 IN
Packaged Height: 10.88 IN Country of Origin: United States of America
