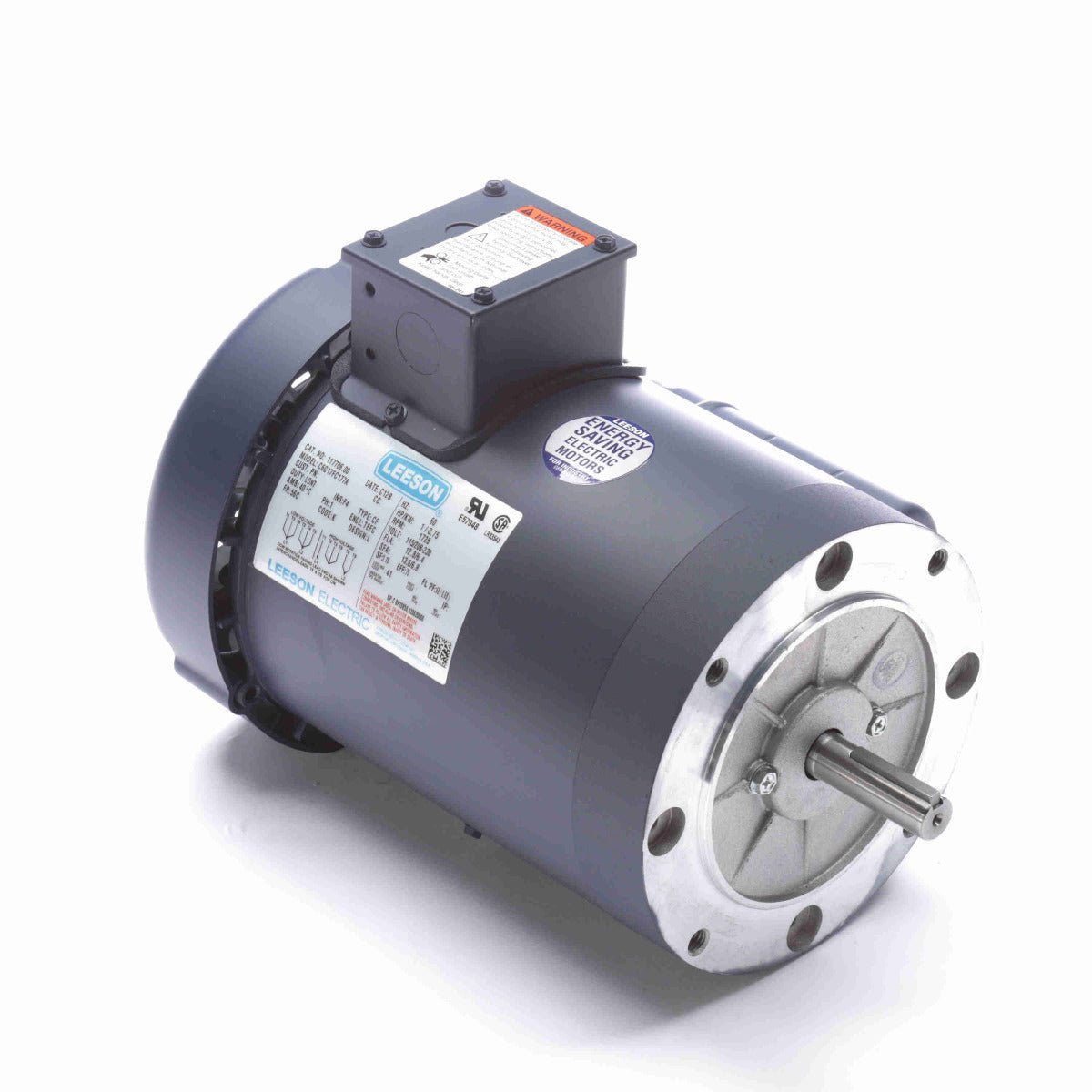

117706.00 Leeson Motor 1HP 1800RPM 56C TEFC 115/208-230V 1 Phase

Crane, Hoist, Conveyor Motor

Leeson Model # C6C17FC177

Leeson Single Phase C Face Unit Handling Motors are commonly used for unit and baggage handling, conveyors, packaging equipment, machine tools, elevators and door openers where a top mounted conduit box is need for mounting size restrictions.  This motors feature an oversized low profile top mounted conduit box on 56 & 143-5T frames that provide easy access for making connections.  This motor is reliable, quiet, durable and long lasting with you, the customer, in mind for the best product they can produce.

Leeson Electric manufactures quality, durable single phase motors that meet and/or exceed energy efficiency regulations, even the most recent mandates. Motor efficiency is the ratio of its useful power output to its total power input, and is usually shown as a percentage.  Leeson Motors have multiple nationwide warehouses that are stocked with a wide selection of motors, from small fractional to large horsepower. Leeson is a leading motor manufacturer because they study customer needs and application, and design their equipment accordingly.

  Features:

• Made in the U.S.A.
• Steel Frame
• 5/8" output shaft diameter
• Totally enclosed fan cooled
• 1.2 Service Factor
• "C" Dimension: 11.48"
• 6.4 AMPS

If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage. Please Contact Us if you need assistance. Leeson is a member of the Regal-Beloit Company, a worldwide manufacturer of mechanical and electrical products.
