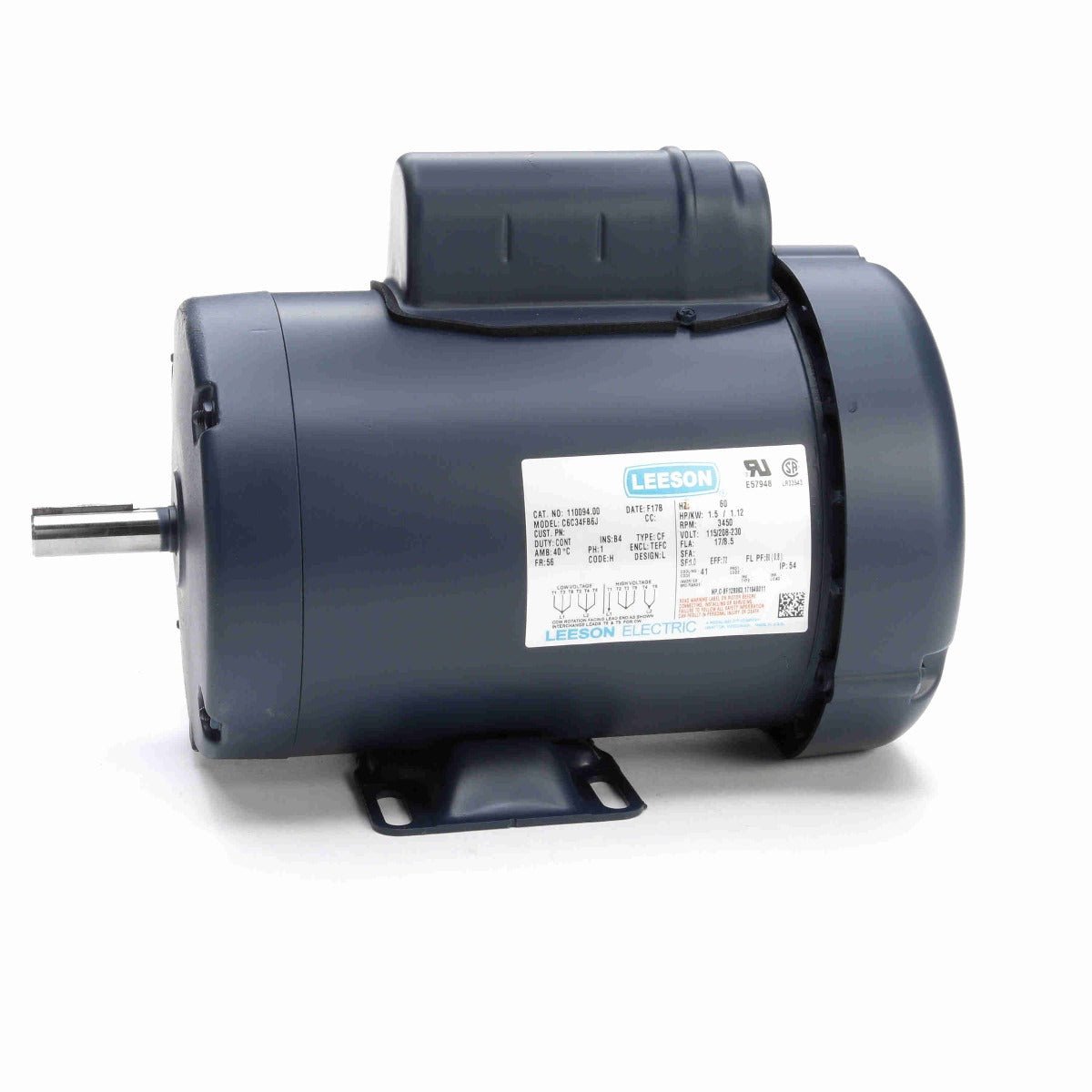

110094.00 Leeson Motor 1.5HP 3450RPM 56 TEFC 115/208-230Volt Single Phase C6C34FB6

In stock
SKU: 110094
Regular price $532.00
Regular price $806.00 Sale Sale price $532.00

Product details

  • SKU 110094
  • Brand Leeson
  • Phase 1
  • RPM 1801-3600
  • HP / KW 1.5
  • Application General Purpose
  • Frame 56
  • Enclosure TOTALLY ENCLOSED
  • Voltage 115/208-230V

Leeson Model No. C6C34FB6

Single phase Leeson electric motors can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. Their multiple nationwide warehouses are stocked with a wide selection of motors, from small fractional to large horsepower. Leeson is a leading motor manufacturer because they study customer needs and application, and design their equipment accordingly.



Leeson single phase electric motors are quality machines with rolled steel frames and durable ball bearings. The motors meet the most recent Energy Independence and Security Act (EISA) regulations for energy efficiency. More features include:



  • Meets or exceeds NEMA motor energy regulations
  • UL Recognized Component Listing and CSA approval
  • Continuous duty
  • 1 year factory warranty
  • Thermally protected
  • "C" Dimension: 12.31"
  • 8.5 AMPS




Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.



Engineering Data
Volts 115 Volts 208-230 Volts
F.L. Amps 17 F.L. Amps 8.5 F.L. Amps
S. F Amps None S. F Amps   S. F Amps

RPM 3600 Hertz 60
HP 1.5 Duty CONTINUOUS TYPE CF
KW 1.12
Frame 56 Serv. Factor 1.0 Phase 1
Max Amb 40 Design L Code H
Insul Class B Protection NOT Therm.Prot.
Eff 100% 72 Eff 75%   PF 80
UL Yes CSA Yes Bearing OPE 6203
CC Number   CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE

Motor Wt. 34 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW
Assembly   Shaft Dia. 5/8 IN Ext. Diag. 005005.01
Cust Part No   Outline 028797-700B Ext. Diag2
Packaging B     Winding C632212
Carton Label Leeson Gen Purpose     GROUP:
Iris   Paint STANDARD Test Card 01
