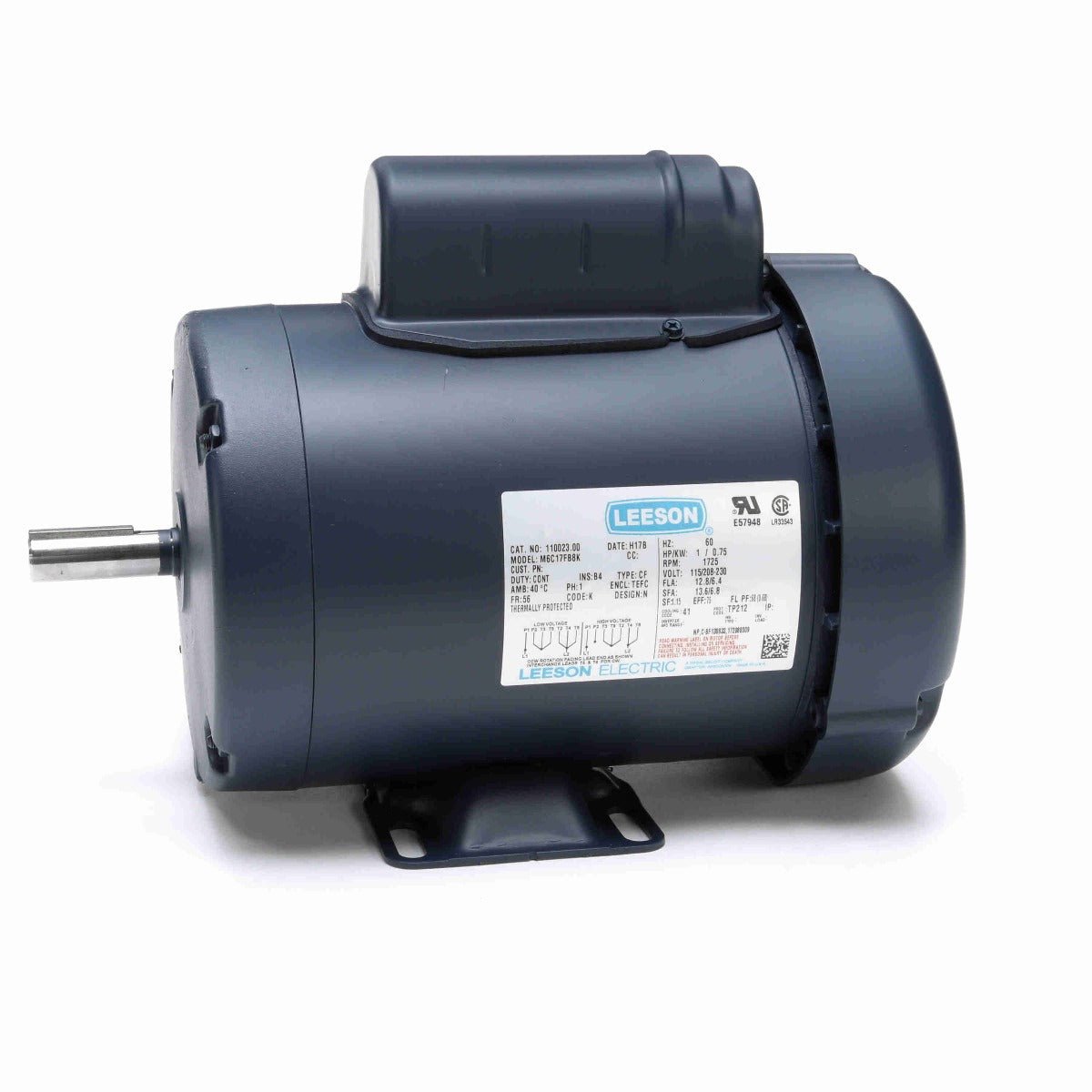

Leeson Model No. M6C17FB8
Leeson Pressure Washer Pump Motors are equipped with a start and run capacitor for its low amperage, low vibration from a balanced rotor and double shielded ball bearings. These motors have windings dipped in a heavy duty varnish system.
These Leeson Pressure Washer Motors are Totally enclosed (TEFC) motors which means they can be used more dirty or wet environments (to a point) – excessive water exposure may require a more sealed, washdown unit. Features:
- Used for hot or cold pressure washer applications
- Manual reset overload protection
- High service factor
- "C" Dimension: 11.81"
- 6.4 AMPS
- 1.15 Service Factor
Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping. If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage.
| Engineering Data |
| Volts |
115 |
Volts |
208-230 |
Volts |
|
| F.L. Amps |
12.8 |
F.L. Amps |
6.4 |
F.L. Amps |
|
| S. F Amps |
13.6 |
S. F Amps |
6.8 |
S. F Amps |
|
|
| RPM |
1800 |
Hertz |
60 |
|
|
| HP |
1 |
Duty |
CONTINUOUS |
TYPE |
CF |
| KW |
0.75 |
|
|
|
|
| Frame |
56 |
Serv. Factor |
1.15 |
Phase |
1 |
| Max Amb |
40 |
Design |
N |
Code |
K |
| Insul Class |
B |
Protection |
MANUAL |
Therm.Prot. |
CEJ53CB |
| Eff 100% |
75 |
Eff 75% |
|
PF |
68 |
| UL |
Y-(LEESON UL REC) |
CSA |
Yes |
Bearing OPE |
6203 |
| CC Number |
EXEMPT |
CE |
No |
Bearing PE |
6203 |
| Load Type |
|
Inverter Type |
|
Speed Range |
NONE |
|
| Motor Wt. |
32 LB |
Enclosure |
TEFC |
Lubrication |
POLYREX EM |
| Nameplate |
993500 |
Mounting |
RIGID |
Rotation |
SELECTIVE CCW |
| Assembly |
|
Shaft Dia. |
5/8 IN |
Ext. Diag. |
005003.03 |
| Cust Part No |
|
Outline |
028793-650B |
Ext. Diag2 |
|
| Packaging |
B |
|
|
Winding |
C634256 |
| Carton Label |
INDIVIDUAL |
|
|
GROUP: |
3 |
| Iris |
|
Paint |
BLUE - LEESON (ENAMEL) |
Test Card |
01 |
