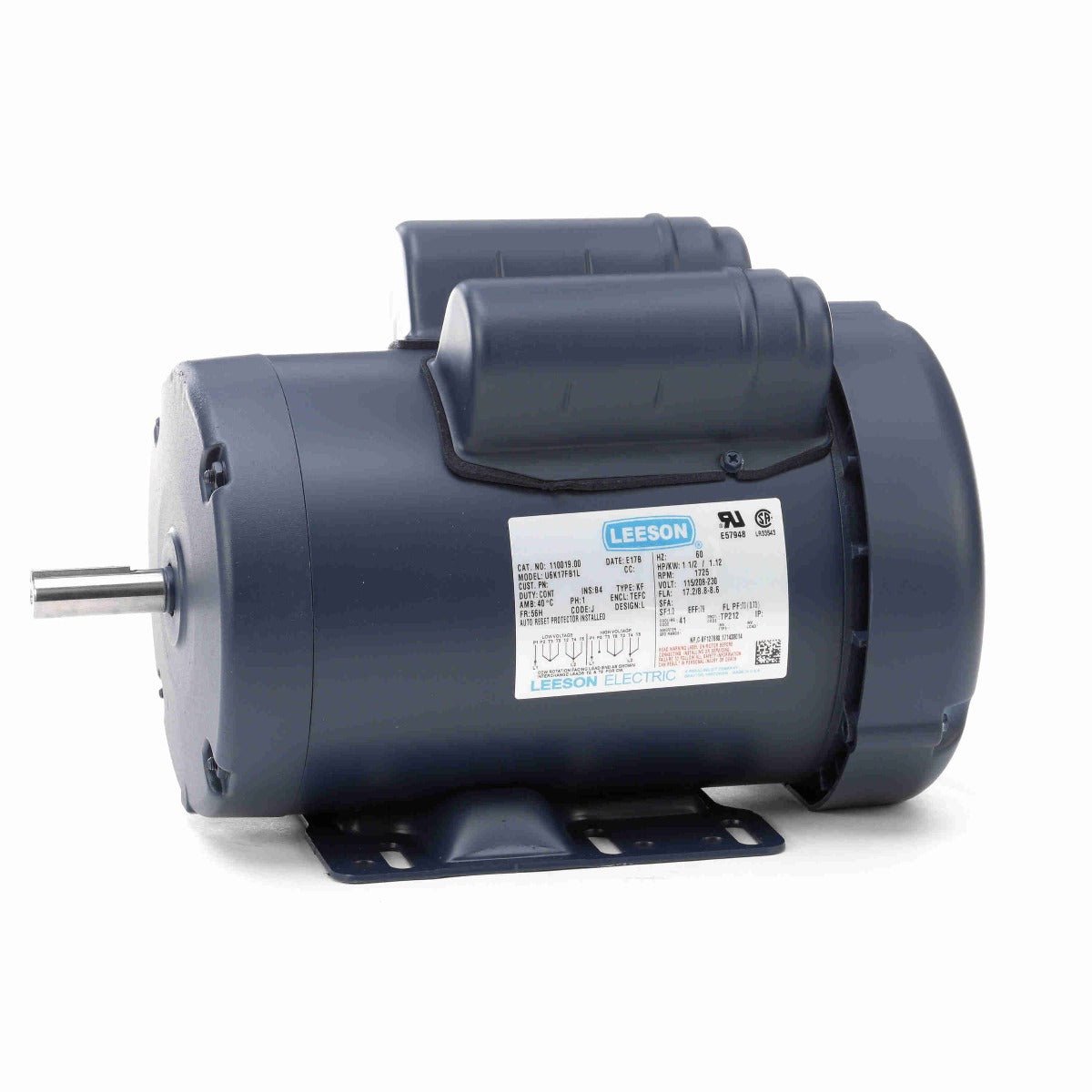

110019.00 Leeson Motor 1.5HP 1725RPM 56H TEFC 115/208-230Volt 1 Phase U6K17FB1

In stock
SKU: 110019
Regular price $699.00
Regular price $1,059.00 Sale Sale price $699.00

Product details

  • SKU 110019
  • Brand Leeson
  • Phase 1
  • RPM 1201-1800
  • HP / KW 1.5
  • Application General Purpose
  • Frame 56H/HC/HCZ/HZ
  • Enclosure TOTALLY ENCLOSED
  • Voltage 115/208-230V

Leeson Model No. U6K17FB1

Shopping for a Leeson Single Phase Capacitor Start General Purpose Motor couldn't be easier than online at Square One Electric Motors.  Leeson single phase electric motors are made with a rolled steel body and exceed NEMA design B performance. Use for a wide range of jobs that aren’t exposed to water and dust, including compressors, pumps, and blowers. This Leeson Motor has a capacitor start which is an electrical capacitor that alters the current to one or more windings of a single phase AC induction motor to create a rotating magnetic field.



When selecting a motor, be aware of the environment so you pick the right enclosure, Open (ODP) motors are intended for environments where equipment is not exposed to excessive water or dirt because there are open slots in the motor body. Totally enclosed (TEFC) motors can be used more dirty or wet environments (to a point) – excessive water exposure may require a more sealed, washdown unit.



More single phase motor features include:



  • Double shielded ball bearings
  • Continuous duty
  • 1 year warranty on standard motors
  • "C" Dimension: 12.81"
  • 8.6 AMPS



Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping. If you don't know the part number, use the search lists on the right to narrow by HP, RPM, frame, application and voltage.



Engineering Data
Volts 115 Volts 208-230 Volts
F.L. Amps 17.2 F.L. Amps 8.8-8.6 F.L. Amps
S. F Amps   S. F Amps   S. F Amps

RPM 1800 Hertz 60
HP 1 1/2 Duty CONTINUOUS TYPE KF
KW 1.12
Frame 56H Serv. Factor 1.0 Phase 1
Max Amb 40 Design L Code J
Insul Class B Protection AUTOMATIC Therm.Prot. CEJ38CV
Eff 100% 79 Eff 75%   PF 73
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number EXEMPT CE No Bearing PE 6203
Load Type   Inverter Type   Speed Range NONE

Motor Wt. 41 LB Enclosure TEFC Lubrication POLYREX EM
Nameplate 993500 Mounting RIGID Rotation SELECTIVE CCW
Assembly 042502 Shaft Dia. 5/8 IN Ext. Diag. 005053.02
Cust Part No   Outline 028863-750 Ext. Diag2
Packaging B     Winding K634119
Carton Label Leeson Gen Purpose     GROUP:
Iris   Paint BLUE - LEESON (ENAMEL) Test Card 02
