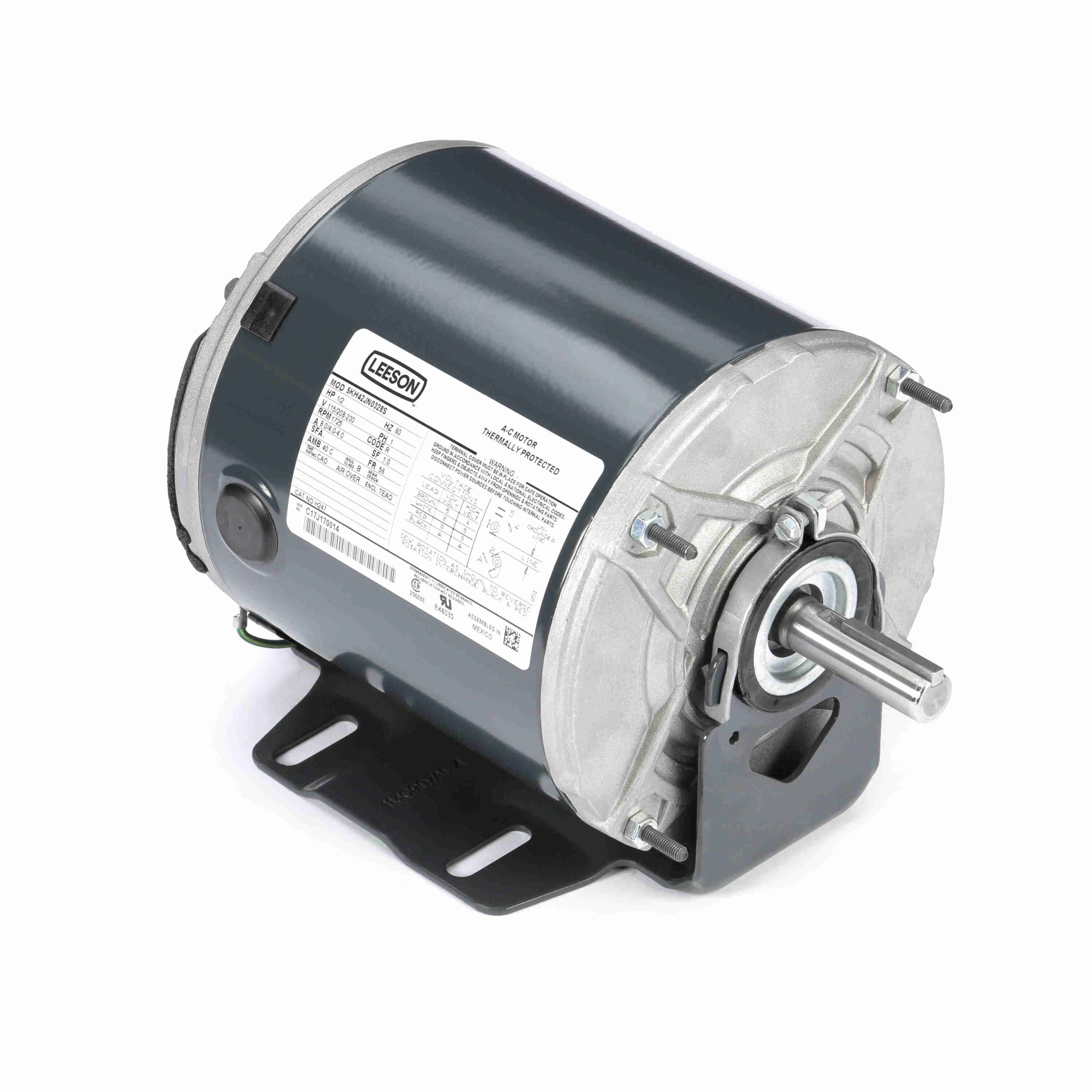

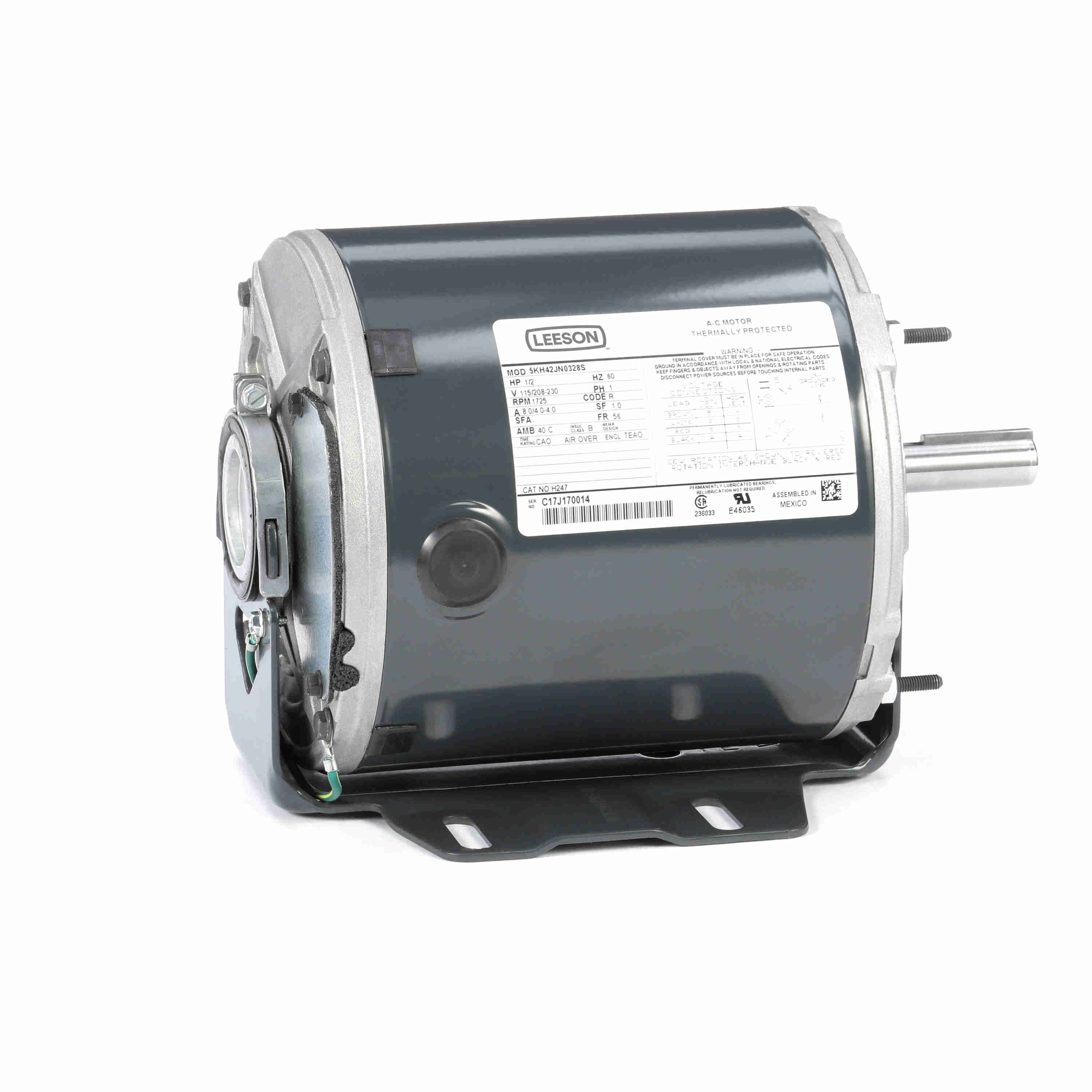

H247 Leeson Motor 1/2HP 1725RPM 56 1 Phase 5KH42JN0328S

SKU: H247
$241.28
Sale $241.28
Description
  • Replaces Marathon H247
  • Double-shielded bearings extend the service life of the motor.
  • EXXON® Polyrex® EM Grease supports extreme temperatures between -20°F(-29 ˚ C) and +350°F(+177˚C).
  • Shaft flingers protect bearings from damage caused by dirt and rain.
  • Condensation drains allow the motor to expel and drain built-up moisture.
  • LEESON® motors. Motors and solutions at our core™
Specifications
Phase: 1 Output HP: 1/2 Hp
Output KW: 0.37 kW Voltage: 115/208-230 V
Speed: 1725 rpm Service Factor: 1.0
Frame: 56 Enclosure: Totally Enclosed Air Over
Thermal Protection: Automatic Ambient Temperature: 40 °C
Frequency: 60 Hz Current: 8.0/4.0-4.0 A
Power Factor: 0 Duty: Continuous Air Over
Insulation Class: B KVA Code: R
Drive End Bearing Size: 6203 Opp Drive End Bearing Size: 6203
UL: Recognized CSA: Y
CE: N

Electrical Type: Split Phase Starting Method: Across The Line
Poles: 4 Rotation: Counterclockwise/Clockwise
Motor Orientation: Any Drive End Bearing: Ball
Opp Drive End Bearing: Ball Frame Material: Rolled Steel
Shaft Type: NEMA 56 Shaft Diameter: 0.625 in

UPC: 722856028242 Weight: 21.00 LB
Packaged Length: 13.69 IN Packaged Width: 7.13 IN
Packaged Height: 7.50 IN HTC: 8501.40.4040
Country of Origin: Mexico
