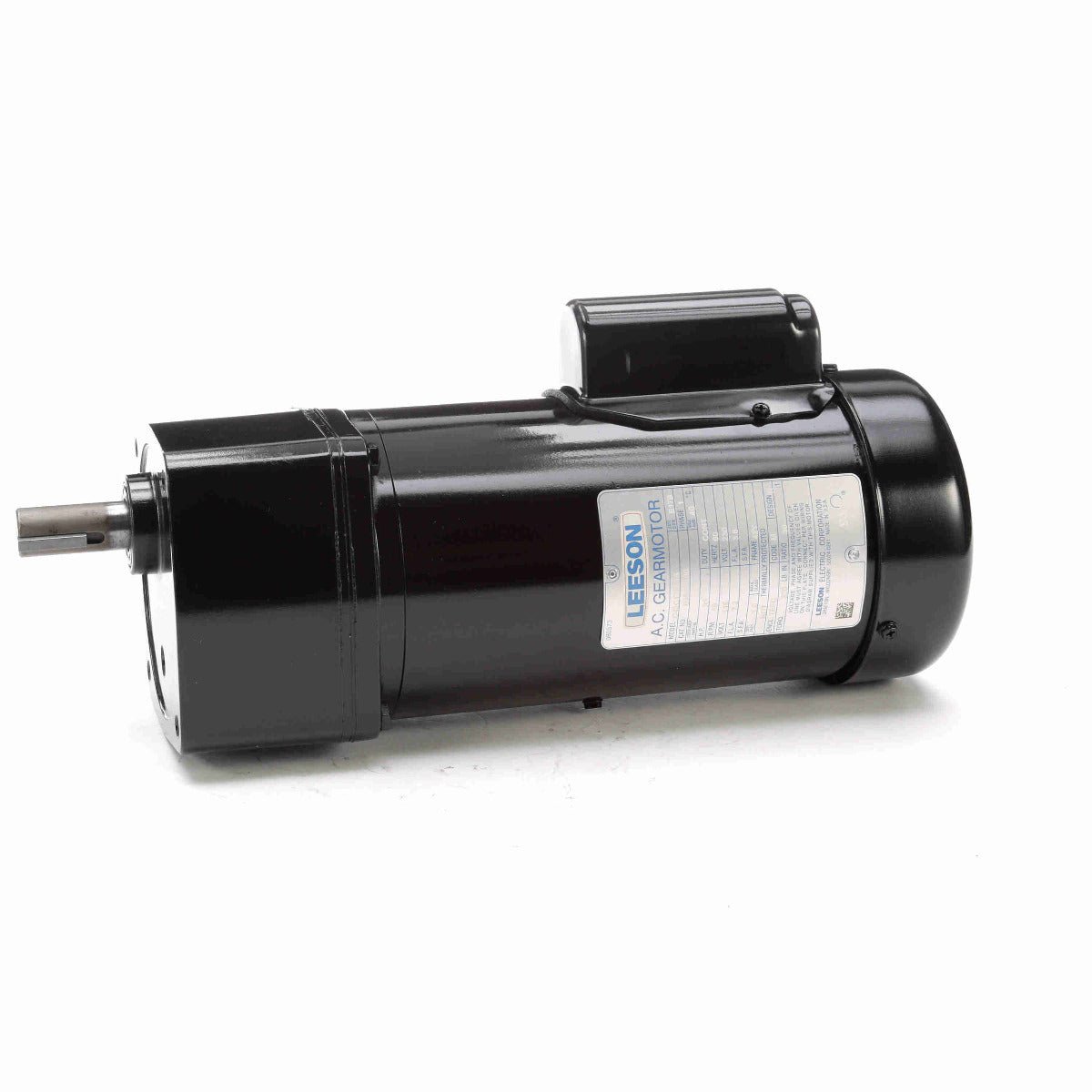

096049.00 Leeson Gear Motor 1/3HP 58RPM 42Y TEFC 115/230V 1 Phase

In stock
SKU: 96049
Regular price $815.50
Regular price $1,304.80 Sale Sale price $815.50

Product details

  • SKU 96049
  • GTIN 691720255315
  • Brand Leeson
  • Phase 1
  • RPM 0-599
  • HP / KW 1/3 (.33)
  • Application Gear Motor
  • Voltage 115/208-230V
  • Shaft Alignment Parallel
  • Torque / LB. IN 300-399
  • All rated for 60/50 Hz operation except hi-torque single-phase which are 60 Hz only
  • Rugged die cast aluminum gear housing for maximum gear and bearing support
  • Precision machined gearing, hardened for maximum load capability
  • All gearing designed and rated to AGMA class 9 standards, and to withstand momentary shock overload of 200%
  • Oversized output bearings for greater overhung load capacity and long life
  • High carbon alloy output shaft provides maximum strength and rigidity
  • All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
  • Heavy duty industrial oil seals keep lubricant in and dirt out; Gears and bearings are splash lubricated with permanent, heavy duty gear oil; Run capacitor supplied at no additional cost for single phase designs
  • Three phase and hi-torque single phase models include conduit box, other single phase models do not; These gearmotors are designed for mounting at any angle, but motor below the reducer should be avoided to prevent leakage of lubricant into the motor should the motor shaft seal fail
  • Overhung load capacities shown are at center of output shaft; Optional conduit box available

Technical Specifications
