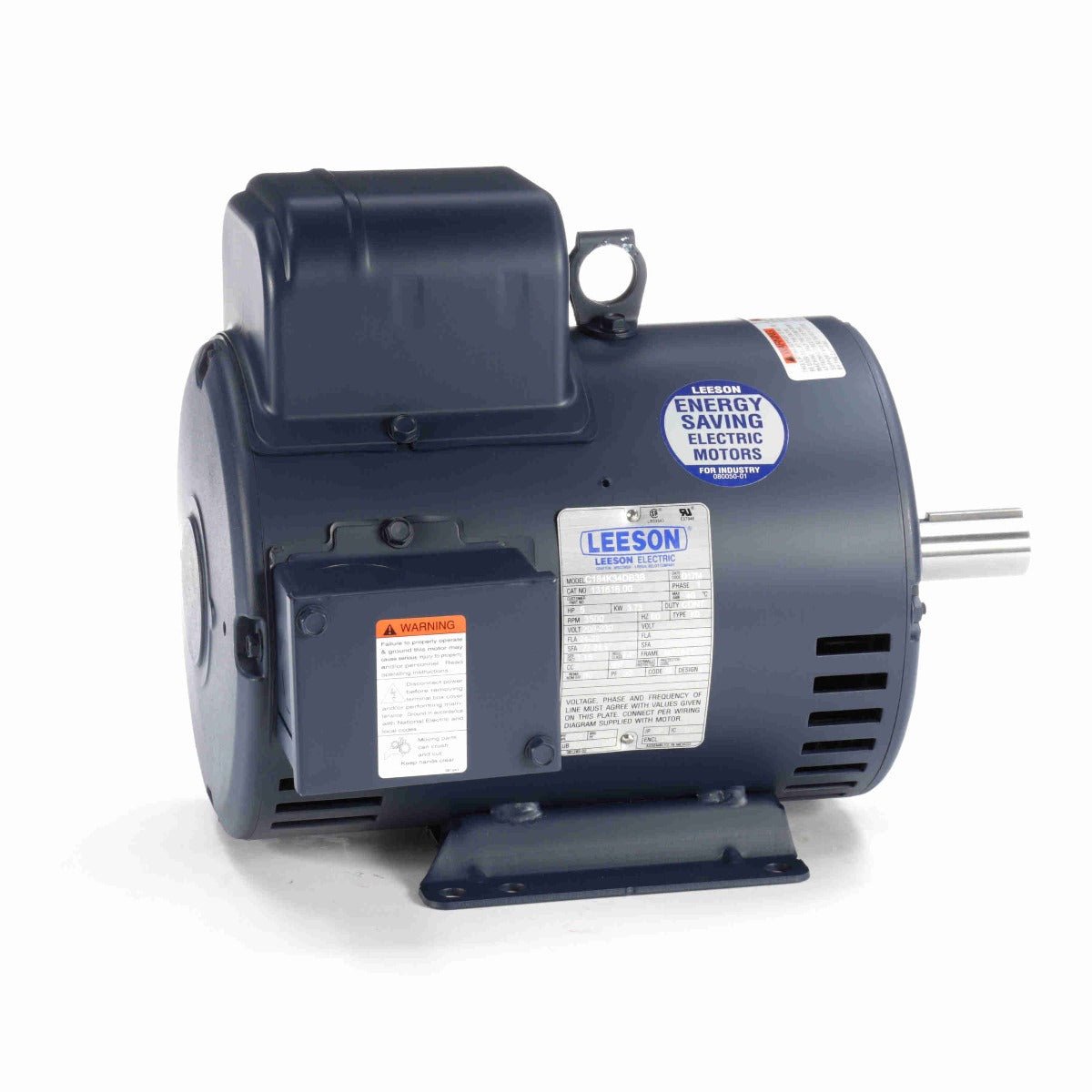

131616.00 Leeson AC Motor 5HP 3500RPM 184T DP 208-230Volt 1 Phase C184K34DB3

In stock
SKU: 131616
Regular price $913.50
Regular price $1,384.00 Sale Sale price $913.50

Product details

  • SKU 131616
  • GTIN 691720018415
  • Brand Leeson
  • Phase 1
  • RPM 1801-3600
  • HP / KW 5
  • Application General Purpose
  • Frame 182/4T
  • Enclosure OPEN
  • Voltage 208-230V

Leeson Model No. C184K34DB3

131616.00 Single phase Leeson electric motor which can be used for compressors, pumps, conveyors, blowers, and other commercial and industrial jobs. Leeson has multiple warehouses nationwide stocked with a wide selection of motors, from small fractional to large horsepower. Leeson is a leading motor manufacturer because they study customer needs and application, and design their equipment with you, the customer, in mind.

Leeson single phase electric motors are quality machines with rolled steel frames and durable ball bearings. The motors meet the most recent Energy Independence and Security Act (EISA) regulations for energy efficiency. More features include:



  • Meets or exceeds NEMA motor energy regulations
  • UL Recognized Component Listing
  • CSA approval
  • Continuous duty
  • 1 year factory warranty
  • "C" Dimension: 14.69"

Visit leeson.com for more product information, including technical motor specs or connection diagrams. Square One Electric is an authorized Leeson distributor with access to nationwide warehouses for fast shipping.



Engineering Data
Volts 208-230 Volts   Volts
F.L. Amps 24-22 F.L. Amps   F.L. Amps
S. F Amps 27-24.5 S. F Amps   S. F Amps

RPM 3600 Hertz 60
HP 5 Duty CONTINUOUS TYPE KD
KW 3.73
Frame MX184T Serv. Factor 1.15 Phase 1
Max Amb 40 Design L Code G
Insul Class F Protection NOT Therm.Prot.
Eff 100% 80 Eff 75%   PF 92
UL Yes CSA Yes Bearing OPE 6205
CC Number   CE No Bearing PE 6206
Load Type   Inverter Type   Speed Range NONE

Motor Wt. 87 LB Enclosure DP Lubrication POLYREX EM
Nameplate 081285 Mounting RIGID Rotation SELECTIVE CCW
Assembly 180-008 Shaft Dia. 1 1/8 IN Ext. Diag. 005018.01
Cust Part No   Outline 035370-1050 Ext. Diag2
Packaging B     Winding K8222
Carton Label Leeson Gen Purpose     GROUP:
Iris   Paint STANDARD Test Card 01
