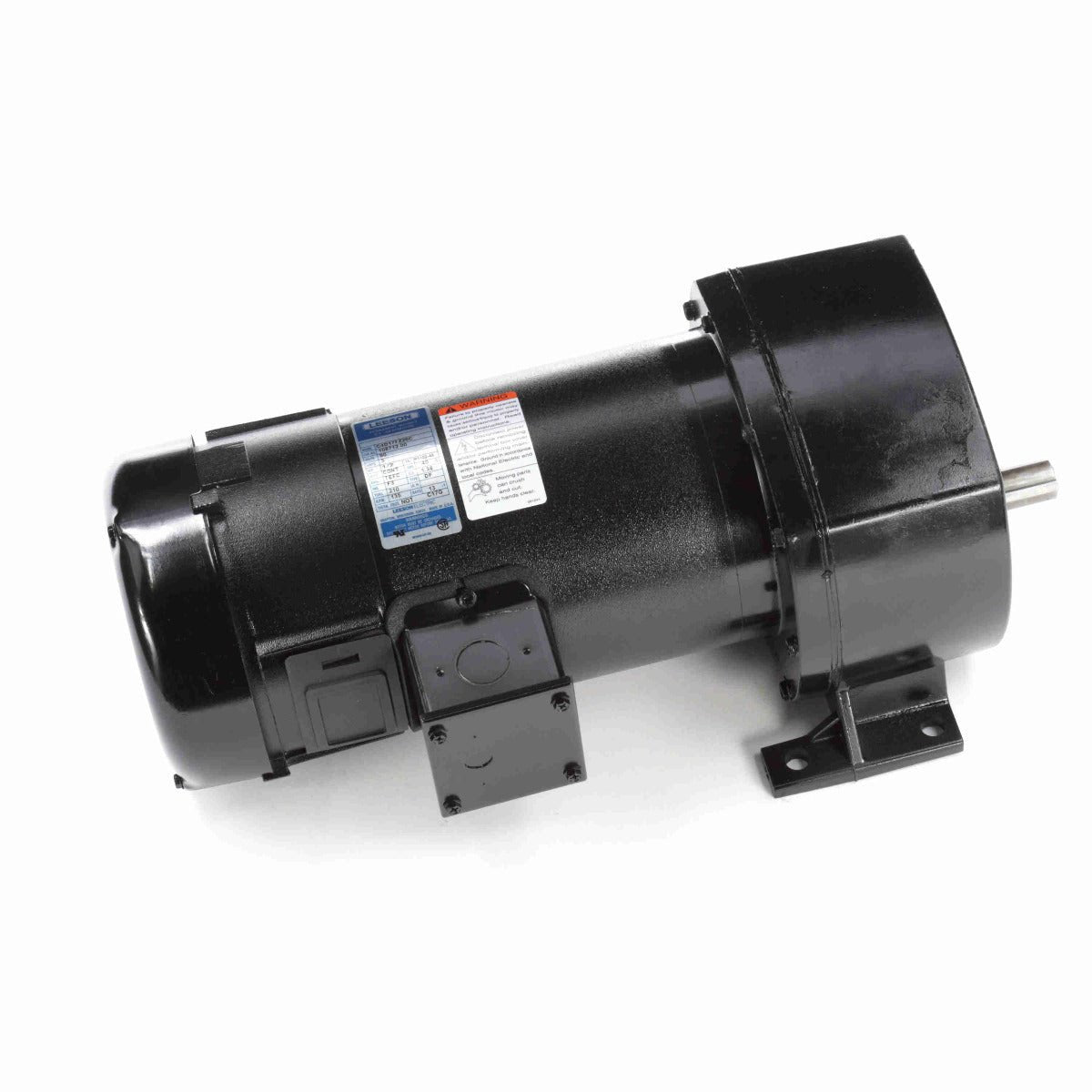

* Image is for reference only

108712 Leeson Gear Motor 1/2HP 135RPM 1102-48 TEFC 90V DC

SKU: 108712
$1,379.00
Sale $1,379.00
Description
  • Performance matched for continuous duty service.
  • Rugged die cast aluminum gear housing supplies maximum gear and bearing support.
  • Heavy duty industrial oil seals keep lubricant in and dirt out.
  • All gearing designed and rated to AGMA Class 9 Standards, and to withstand momentary shock overload of 200%.

Technical Specifications

Rotation: Reversible Mounting: Special
Shaft Type: Parallel Overall Length: 16.31 in
Frame Length: 5.97 in Shaft Diameter: 0.750 in
Shaft Extension: 1.5 in Torque: 210 LB-IN
