107028.00 Leeson Gear Motor

* Image is for reference only

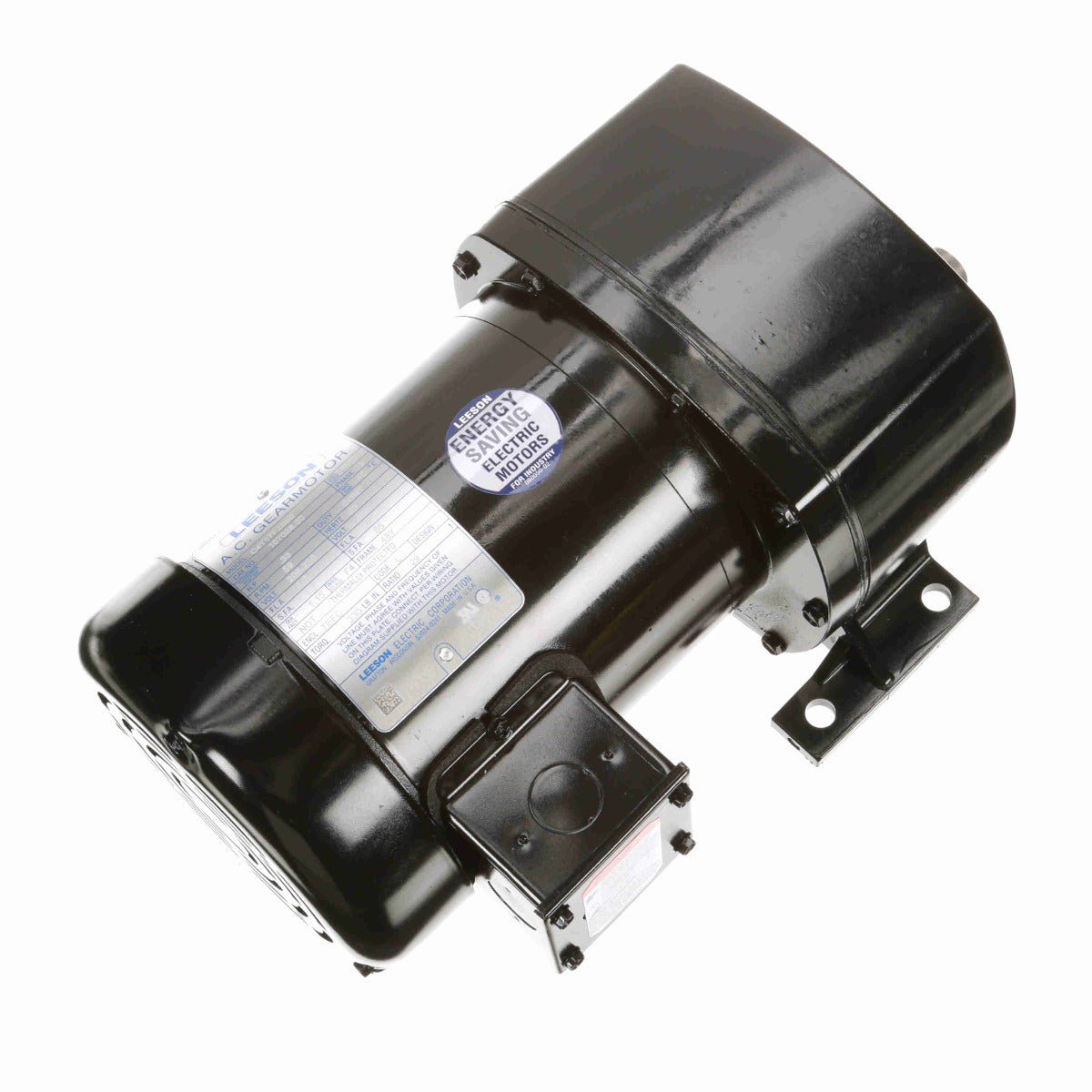

107028.00 Leeson Gear Motor 1/3HP 59RPM 48Y 208-230/460V 3 Phase

SKU: 107028

$927.29

~~$1,431.00~~ Sale $927.29

Description

Description

Rugged die cast aluminum gear housing supplies maximum gear and bearing support.
Heavy duty industrial oil seals keep lubricant in and dirt out.
All gearing designed and rated to AGMA Class 9 Standards, and to withstand momentary shock overload of 200%.
Capacitor start designs rated for 115/230 VAC 60 HZ input.

Technical Specifications

Rotation:	Reversible	Mounting:	Special
Shaft Type:	Parallel	Overall Length:	12.92 in
Frame Length:	5.00 in	Shaft Diameter:	0.750 in
Shaft Extension:	1.5 in	Torque:	330 LB-IN
