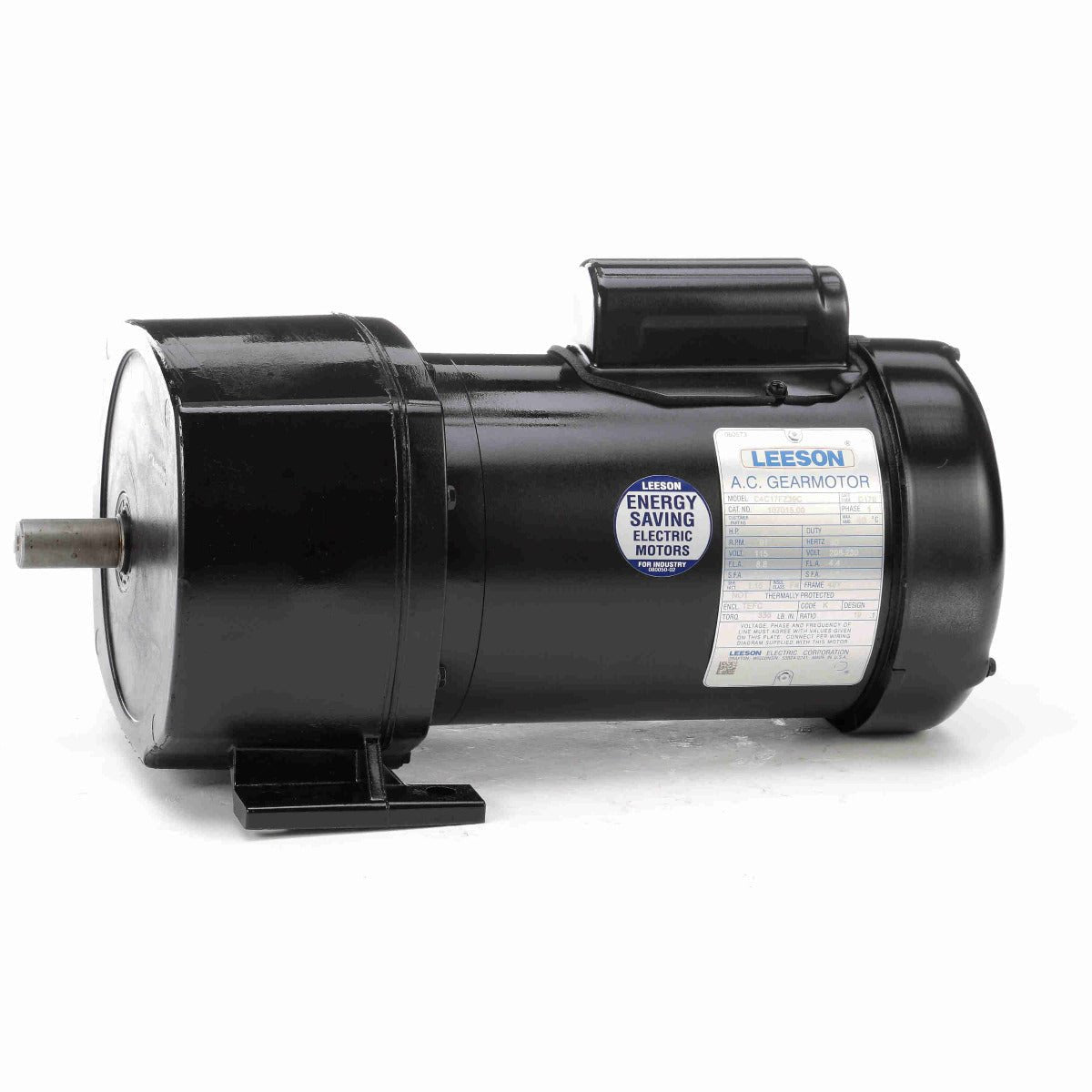

107015.00 Leeson Gear Motor 1/2HP 91RPM 48Y TEFC 115/208-230V 1Phase

In stock
SKU: 107015
Regular price $952.00
Regular price $1,523.30 Sale Sale price $952.00

Product details

  • SKU 107015
  • GTIN 691720006436
  • Brand Leeson
  • Phase 1
  • RPM 0-599
  • HP / KW 1/2 (.5)
  • Application Gear Motor
  • Voltage 115/208-230V
  • Shaft Alignment Parallel
  • Torque / LB. IN 300-399
  • Capacitor start designs rated for 115/230VAC 60 HZ input
  • Rugged die cast aluminum gear housing for maximum gear and bearing support
  • Precision machined gearing, hardened for maximum load capability
  • All gearing designed and rated to AGMA class 9 standards, and to withstand momentary shock overload of 200%
  • Oversized output bearings for greater overhung load capacity and long life
  • High carbon alloy output shaft provides maximum strength and rigidity
  • All needle bearing journals are precision ground after heat treating to provide maximum fit and finish
  • Heavy duty industrial oil seals keep lubricant in and dirt out
  • Gears and bearings are splash lubricated with permanent, heavy duty gear oil
  • Conduit box included as standard

Technical Specifications
